VLT® FC 100 LonWorks

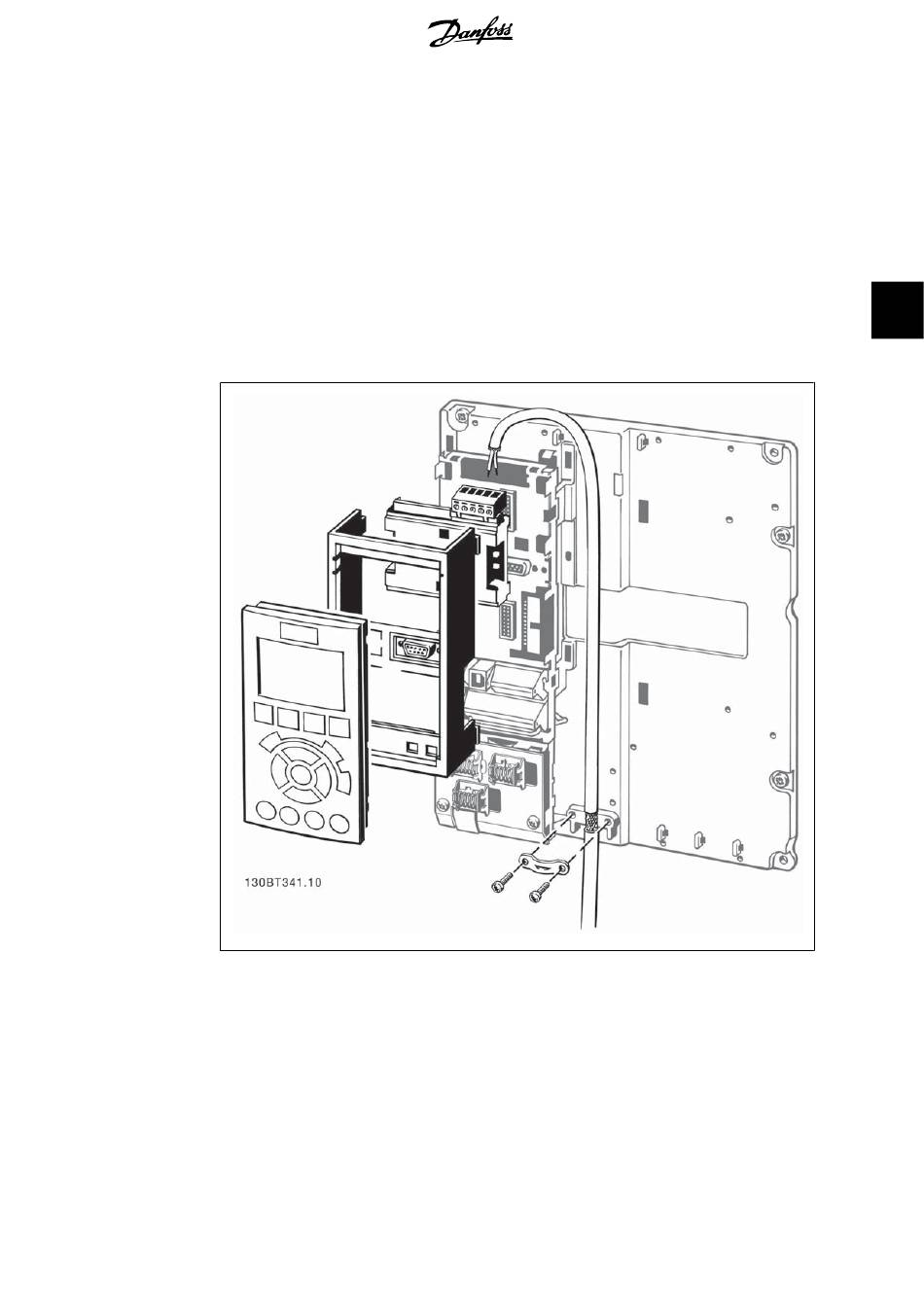

Instructions:
-
-
-
-
-
-
Remove LCP panel from the FC 100
Remove the frame located beneath and discard
Push the option into place. Two positions are possible, with cable terminal facing either
up or down
Push the fieldbus option adaptor frame for the FC 100 into place
Replace the LCP and attach cable
On A1 and A2 enclosures with cable terminal facing up: Fasten the cable onto the de-
coupling plate (the FC 100 top surface has pre-drilled threaded holes for attaching the
de-coupling plate to the unit).
