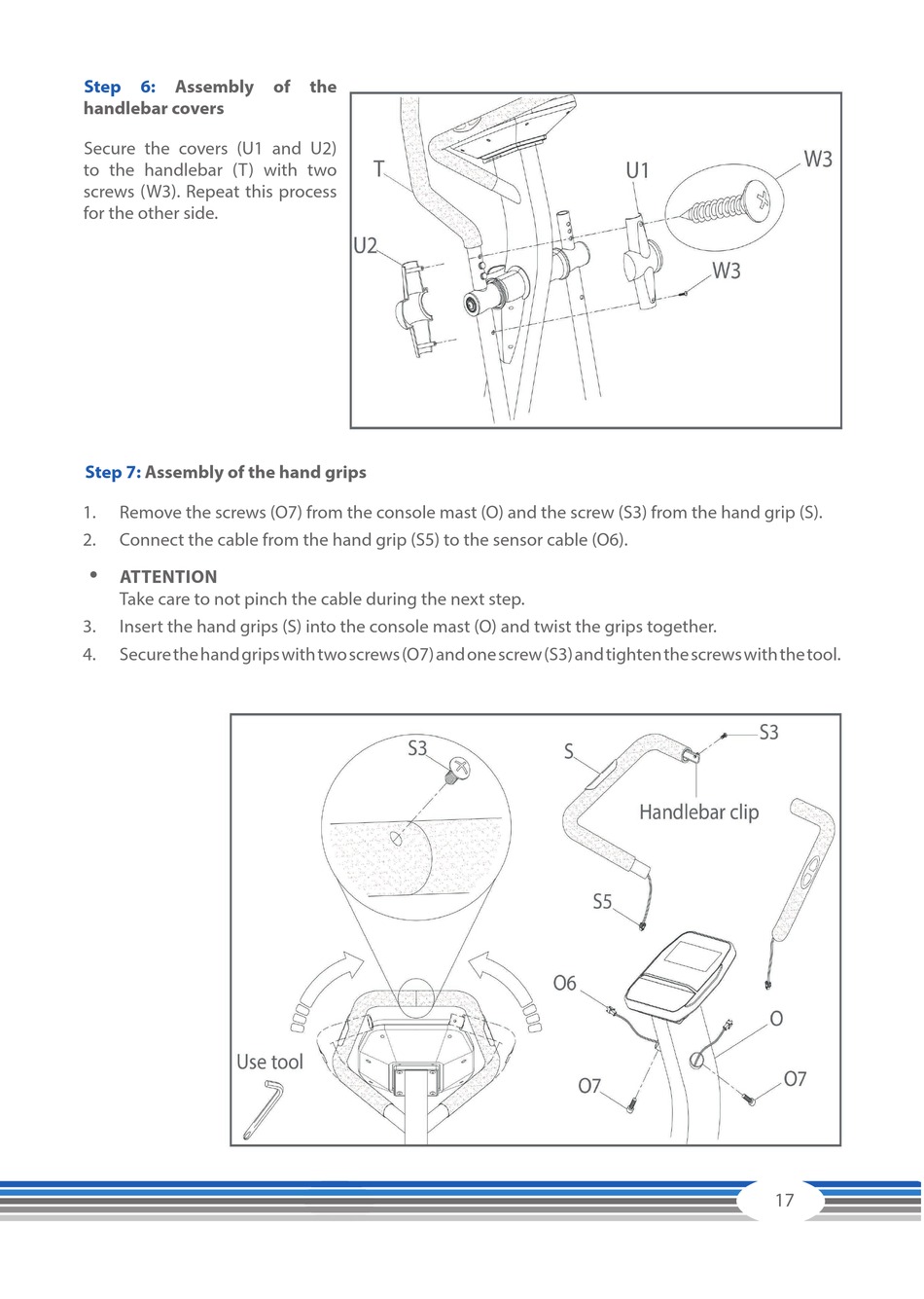

Step 6: Assembly
handlebar covers
Secure the covers (U1 and U2)
to the handlebar (T) with two
screws (W3). Repeat this process
for the other side.
Step 7: Assembly of the hand grips
1. Remove the screws (O7) from the console mast (O) and the screw (S3) from the hand grip (S).
2. Connect the cable from the hand grip (S5) to the sensor cable (O6).
ड ATTENTION
Take care to not pinch the cable during the next step.
3. Insert the hand grips (S) into the console mast (O) and twist the grips together.
4. Secure the hand grips with two screws (O7) and one screw (S3) and tighten the screws with the tool.
