NOTICE
L
If the equipment is not stable after
the supporting foot (P2) accordingly.

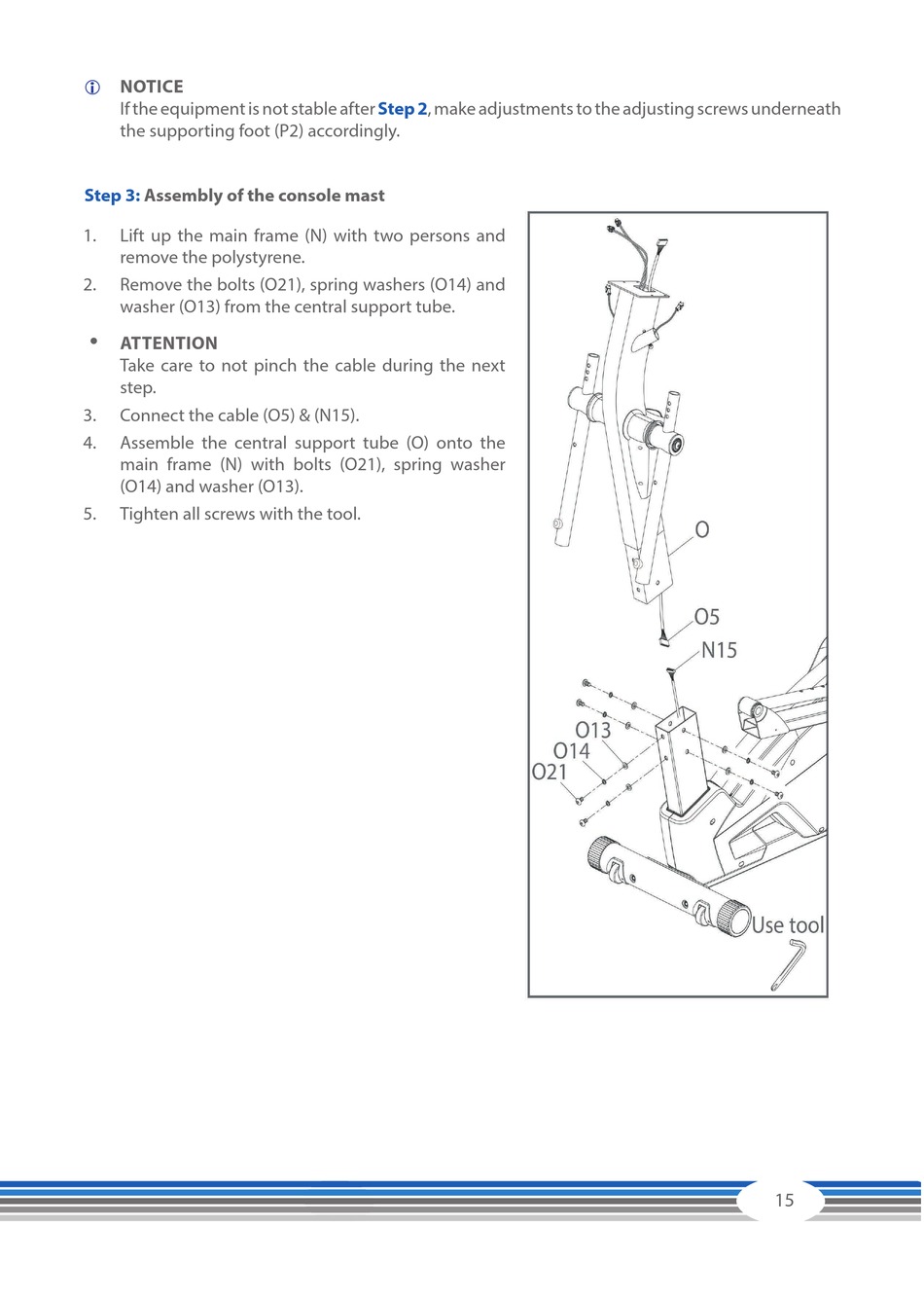

Step 3: Assembly of the console mast
1. Lift up the main frame (N) with two persons and
remove the polystyrene.
2. Remove the bolts (O21), spring washers (O14) and
washer (O13) from the central support tube.
ड ATTENTION
Take care to not pinch the cable during the next
step.
3. Connect the cable (O5) & (N15).
4. Assemble the central support tube (O) onto the
main frame (N) with bolts (O21), spring washer
(O14) and washer (O13).
5. Tighten all screws with the tool.
Step 2, make adjustments to the adjusting screws underneath
15
