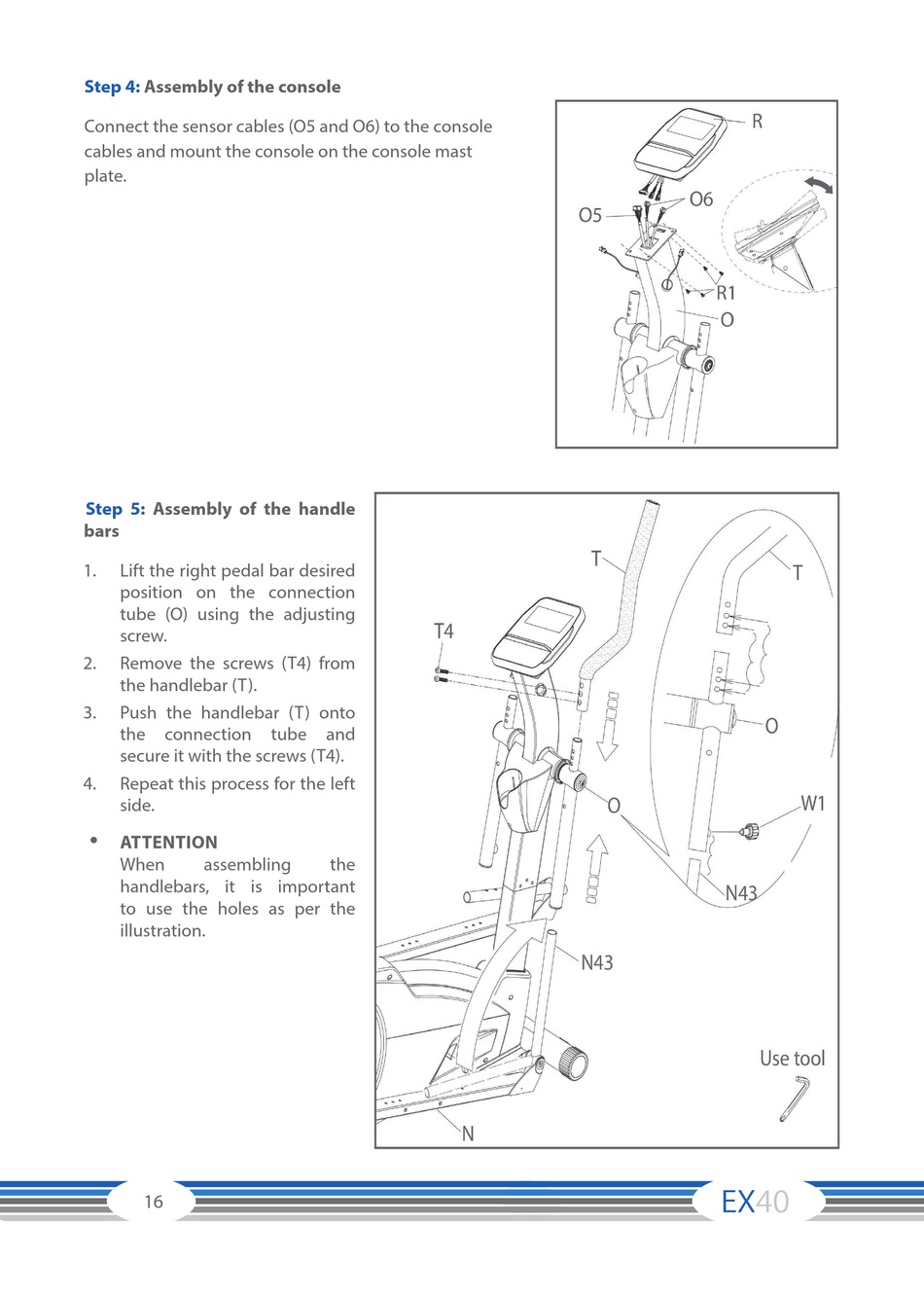

Step 4: Assembly of the console
Connect the sensor cables (O5 and O6) to the console
cables and mount the console on the console mast
plate.
Step 5: Assembly of the handle
bars
1. Lift the right pedal bar desired
position on the connection
tube (O) using the adjusting
screw.
2. Remove the screws (T4) from
the handlebar (T).
3. Push the handlebar (T) onto
the connection tube and
secure it with the screws (T4).
4. Repeat this process for the left
side.
ड ATTENTION
When assembling
handlebars, it is important
to use the holes as per the
illustration.
