Configuring and Installing an Internal Tape Drive with Fibre Channel Interface
Loader Connector
RS-422 (8 pin)

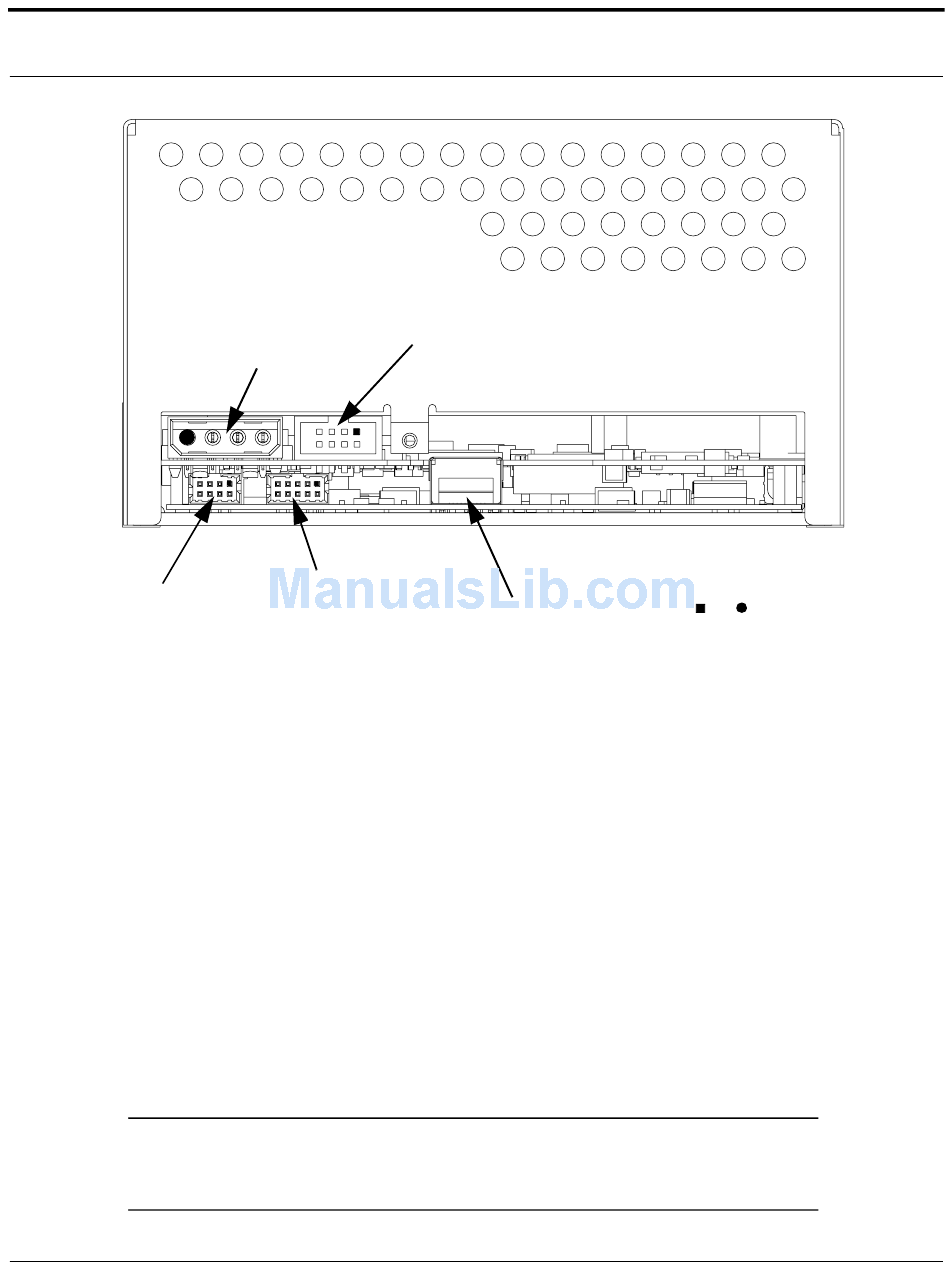

Figure 4-7. SDLT 600 Fibre Channel Connectors and Jumpers

Follow these steps to connect a Fibre Channel tape drive:

Secure the tape drive.

•
Connect the power.
•
Connect the library/loader (optional).
•
Connect the Fibre Channel cable.
•
Each of these steps is discussed in the subsections that follow.
4.5.2 Secure the Tape Drive
This section describes how to mount and secure the tape drive in the system.
N
OTE
4-18
Power Connector
(4 pin)
Fibre Channel
Jumper Block
: In some system configurations it may be more convenient to connect the
Fibre Channel and power cables to the tape drive before securing it in the
system.
Controller Diag Port (8 pin)
(Diagnostic use only)
Fibre Channel
Port
