Facp Hook-Up Diagrams - Altronix Maximal3V Installation Manual

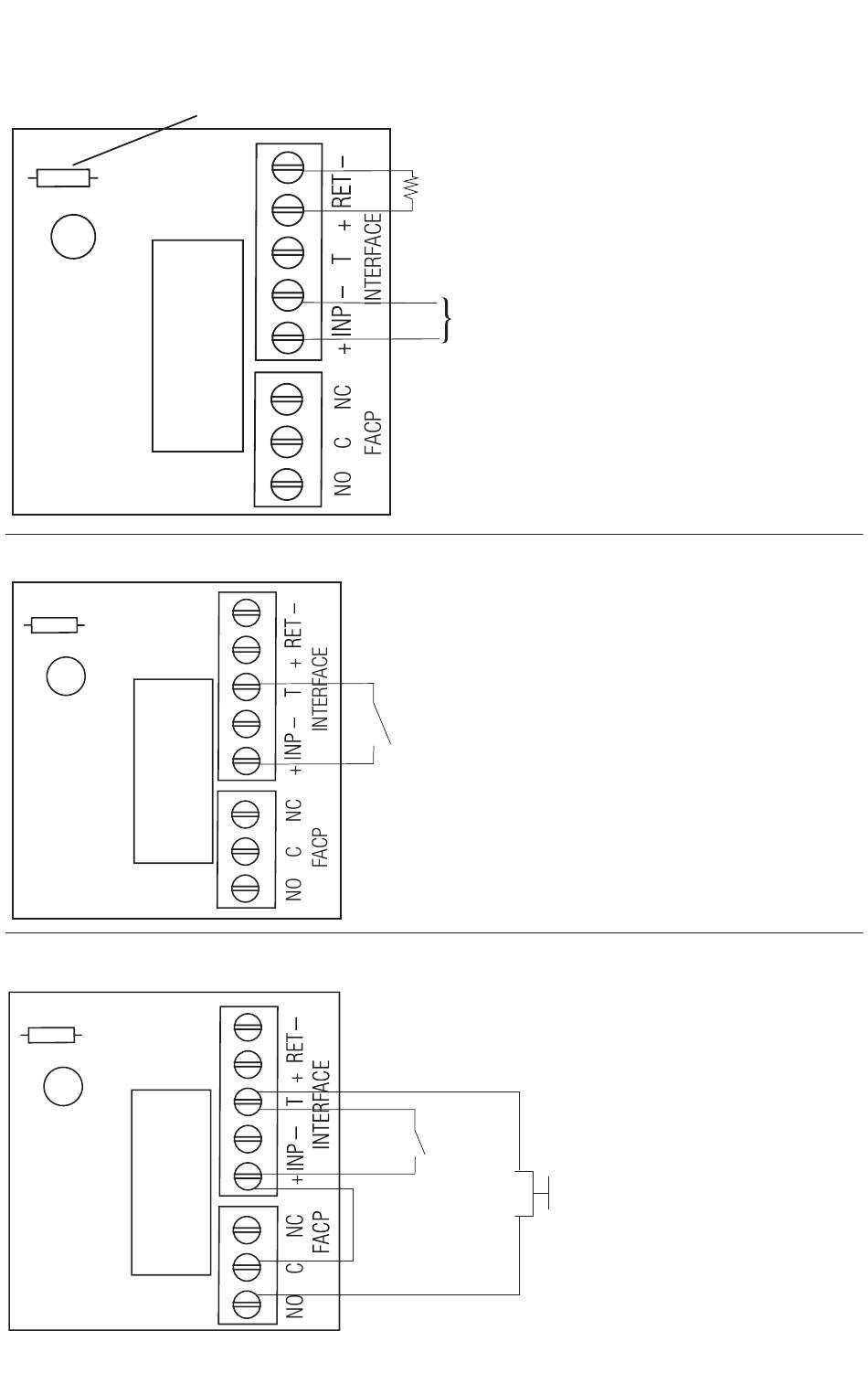

Fig. 8 Polarity reversal input from FACP signaling circuit output (polarity is referenced in alarm condition):
TRG
Fig. 9 Normally Open - Non-Latching FACP trigger input:
TRG
Fig. 10 Normally Open FACP Latching trigger input with reset:
TRG
Maximal3V / Maximal5V / Maximal7V Access Power Controllers (Fused)

FACP Hook-Up Diagrams:

CUT
JUMPER
JUMPER
FACP
OUTPUT EOL
FROM FACP
--
OUTPUT
+
CIRCUIT
N.O. TRIGGER
INPUT
N.O.
TRIGGER
INPUT
N.C. RESET
SWITCH
- 13 -
