FACP/Optional Power Supply Hook-up Diagrams:

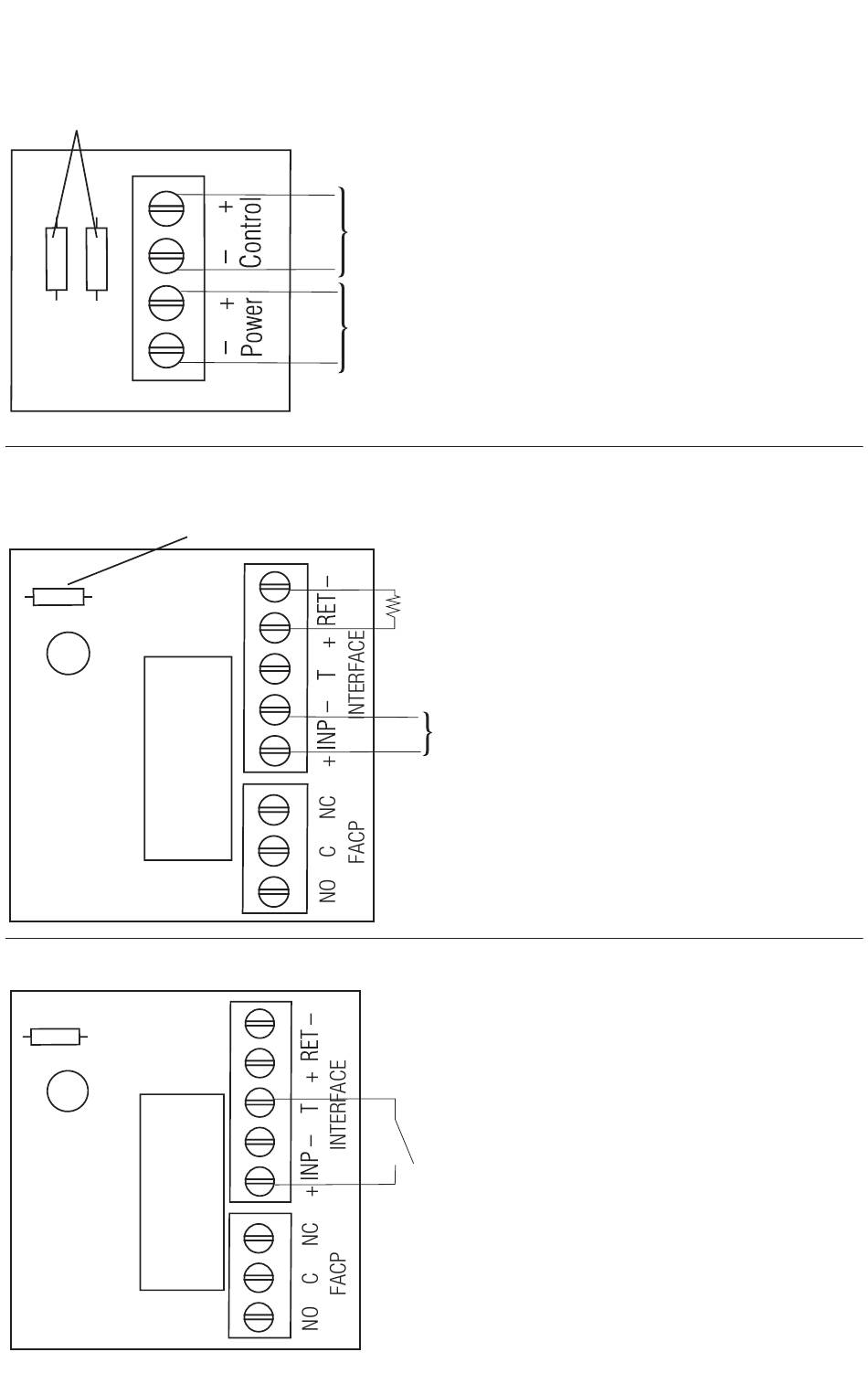

Fig. 10 Optional hook-up using two (2) isolated power supply inputs (Only applicable on Maximal11):
CUT JUMPERS
J1 AND J2
J2 J1
Fig. 11 Polarity reversal input from FACP signaling circuit output (polarity is referenced in alarm condition):
TRG
Fig. 12 Normally Open - Non-Latching FACP trigger input:
TRG
Maximal11D/Maximal33D/Maximal55D/Maximal77D/Maximal75D Access Power Controllers (PTC)
CUT
JUMPER
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(ACM8 POWER)
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(LOCK POWER)
FACP
OUTPUT EOL
FROM FACP
--
OUTPUT
+
CIRCUIT
N.O. TRIGGER
INPUT
- 17 -
