Maximal3V And Maximalv5 Battery Hookup And Tamper Switch Installation - Altronix Maximal3V Installation Manual

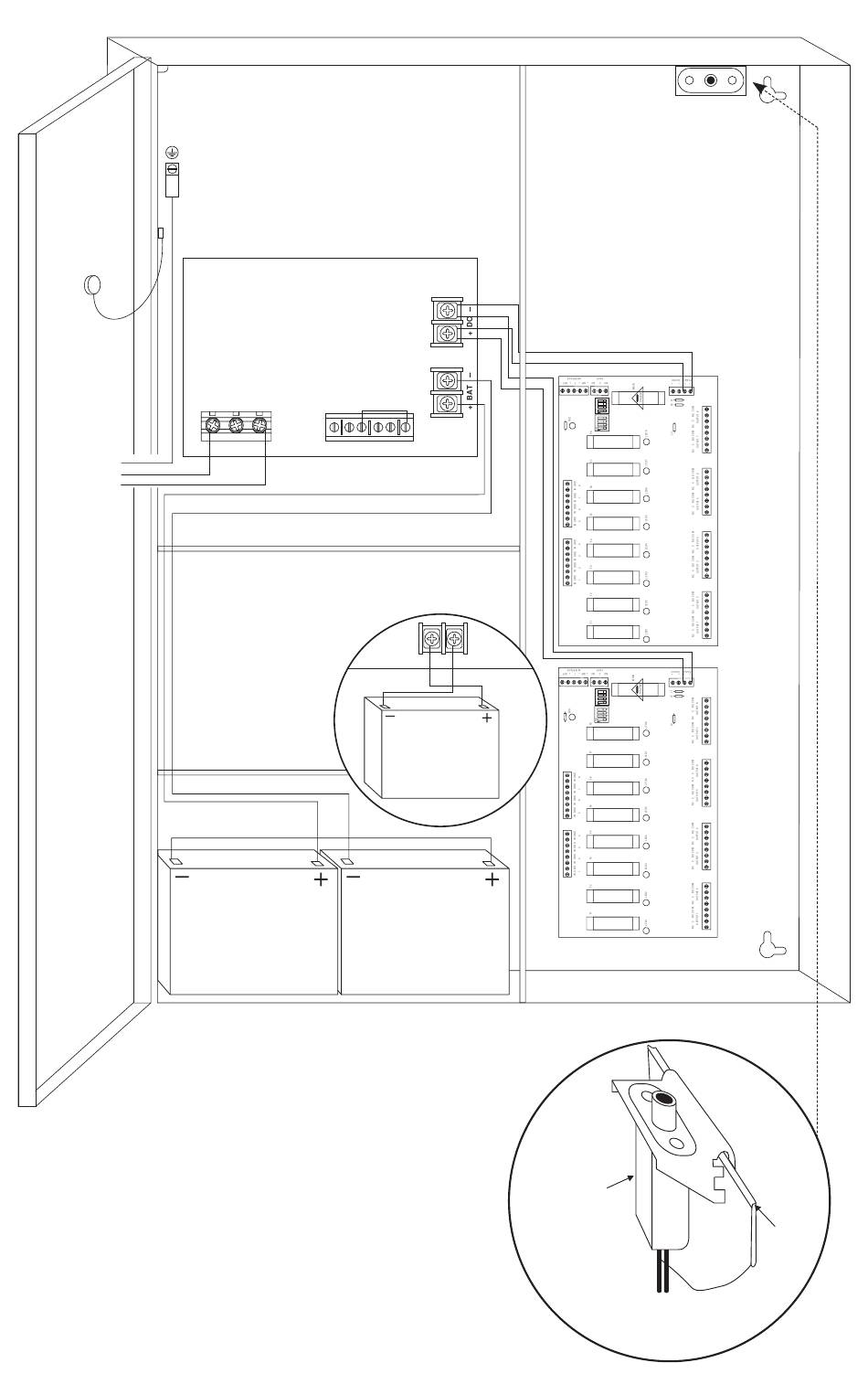

Fig. 3 - Maximal3V and Maximal5V
Wire
Strap
(from
Enclosure
to Door)
Input
220VAC
50/60Hz
**24VDC operation: Connect two (2) 12VDC batteries in series
- 8 -
Ground Lug
Power Supply Board
BAT FAIL
L G N
NO C NC
Neutral
Line
*12VDC operation:
For 12VDC operation only a single battery is needed.
Connect red battery lead to terminal
marked [+ BAT] and to the
[positive (+)] terminal of the
battery .
Connect black battery lead
to terminal marked
[BAT –] and to the
[negative (–)] terminal
of the battery .
Fig. 3a
12VDC Rechargeable
Battery**
(Optional)
AC FAIL
NO C NC
+ BAT ---
12VDC Rechargeable
Battery*
(Optional)
12VDC Rechargeable
Battery**
(Optional)
Fig. 3b
Maximal3V / Maximal5V / Maximal7V Access Power Controllers (Fused)
Tamper Switch
Honeywell
Model 112
Tamper Switch
or equivalent
(Not Included)
to Access Control Panel
or U.L. Listed
Reporting Device
Enclosure
Edge of
Enclosure
