Installing a CPCI-1500 board

The following Compact PCI slot types are available for 5V systems:
CPCI-5V (32-bit) and CPCI-5V (64-bit)
See in the computer manual which types of slots are free.
Discharge yourself from electrostatic charges as described in the leaflet
•
"Safety precautions".
Hold the board at its grip (See board handling in chapter 3).
•
Insert the board into the guiding rails and push it to the back cover of the rack.
•
In order to fully insert the board, a small resistance has to be overcome.
Make sure that the board is correctly connected by connecting the key of the board
•
to the key of the backplane (blue key connectors if the board operates with 5 V)
Chapter 5

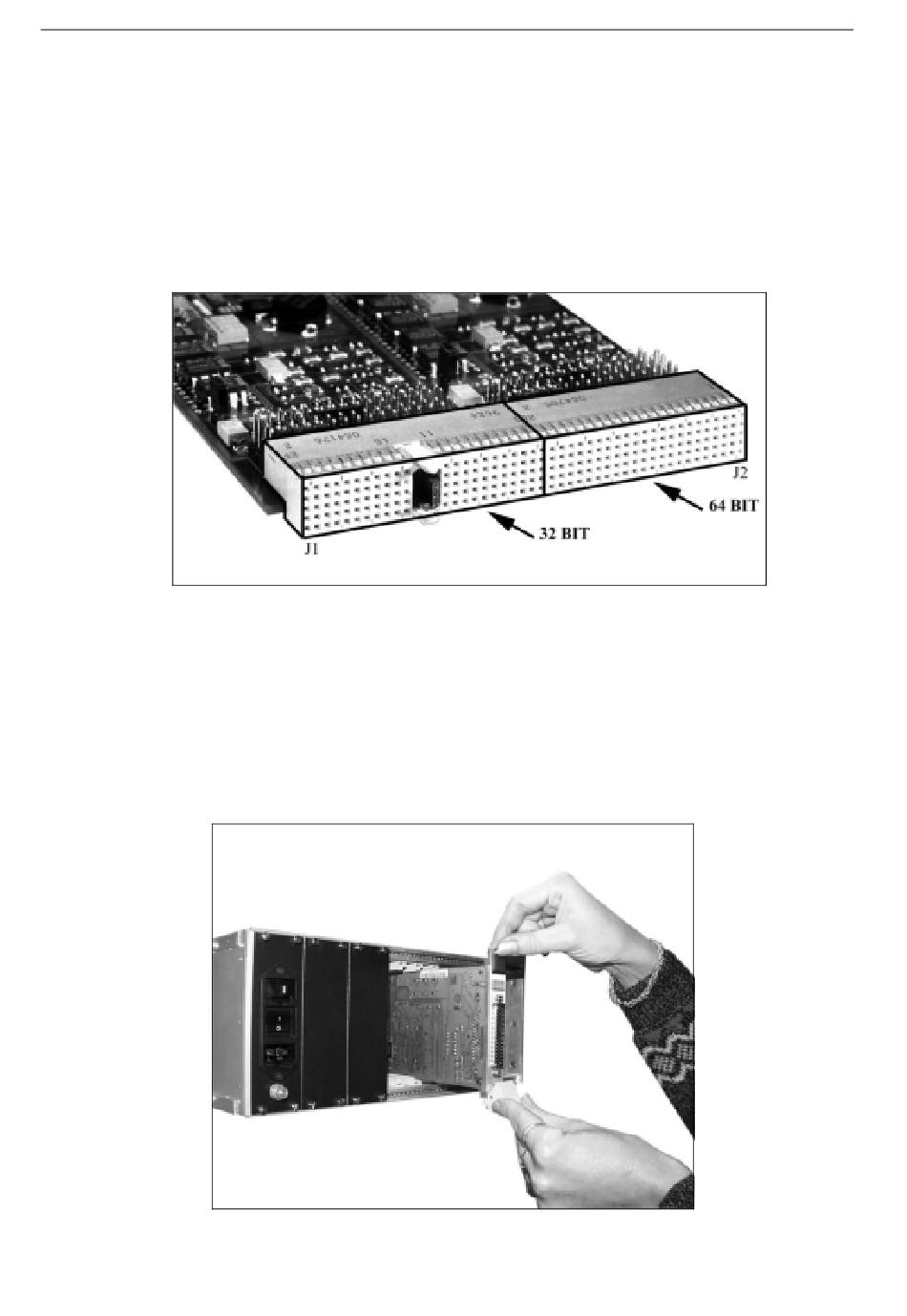

Fig. 5-5: Types of slots for CompactPCI boards

Fig. 5-6: Pushing a CPCI board into a rack
