Technical description
IMPORTANT!
Do observe the safety instructions.
Switch off your PC and all the units connected to the PC.
•
Pull the PC mains plug from the socket.
•
Open your PC as described in the manual of the PC manufacturer.
•
5.1

Installing an APCI-1500 board

5.1.1

Selecting a free slot

The following PCI slot types are available for 5V systems:
PCI-5V (32 bit) and PCI-5V (64 bit)
See in the PC manual which types of slots are free.
Decide in which type of slot to insert the board.
Remove the back cover of the selected slot according to the instructions of
the PC manufacturer. Keep the back cover. You will need it if you remove the
board.
Discharge yourself from electrostatic charges.
Chapter 5

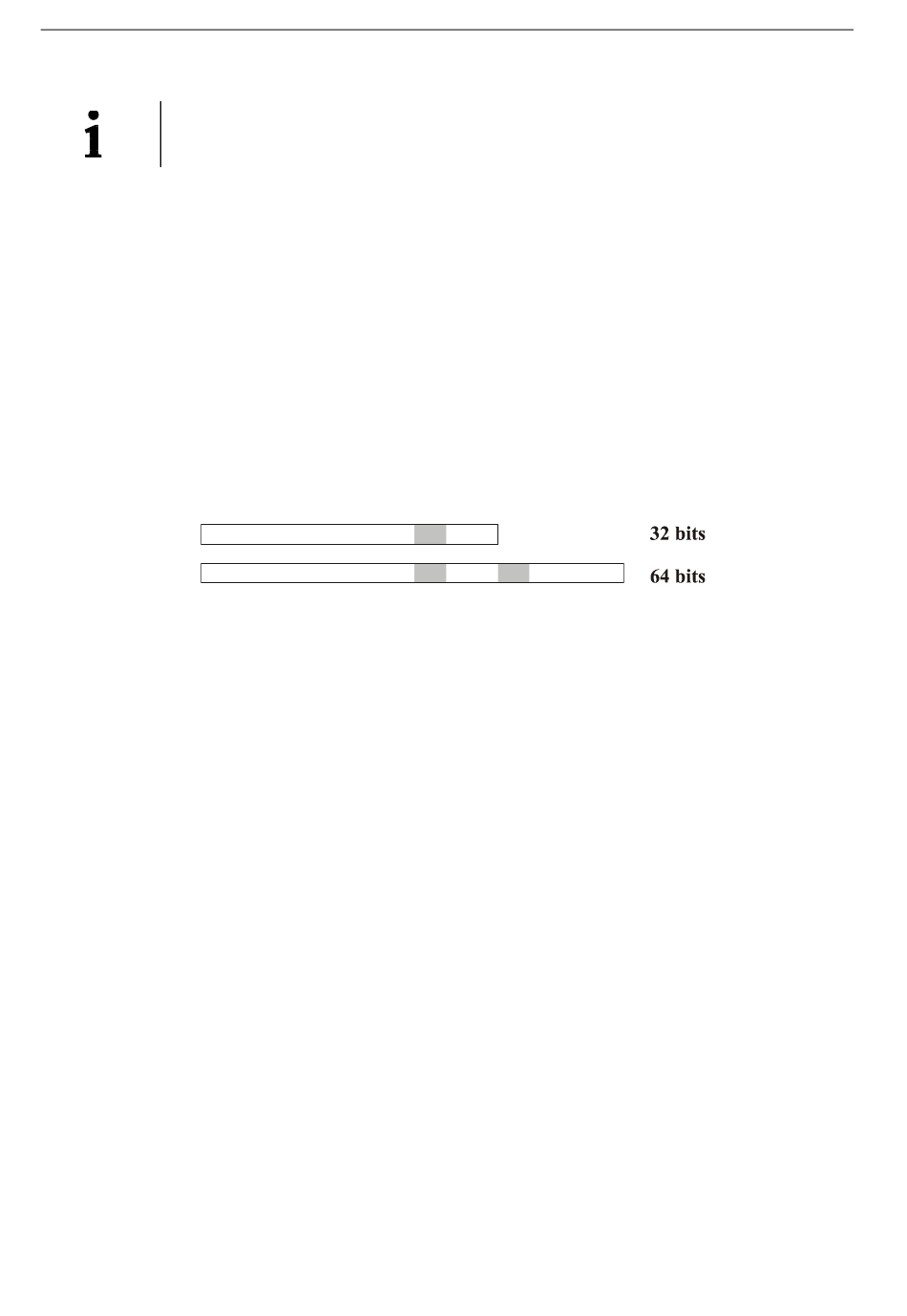

Fig. 5-2: Types of slots for PCI boards

APCI-/CPCI-1500
11
