Technical description

2) v_APCI1500_KRNL_Set16DigitalOutputOn (...)

Syntax:
<Return value> = v_APCI1500_KRNL_Set16DigitalOutputOn
Parameters:
- Input:
UINT
LONG
- Output:
No output signal has occurred.
Task:
Sets one or several output channels of board xPCI-1500
Example:

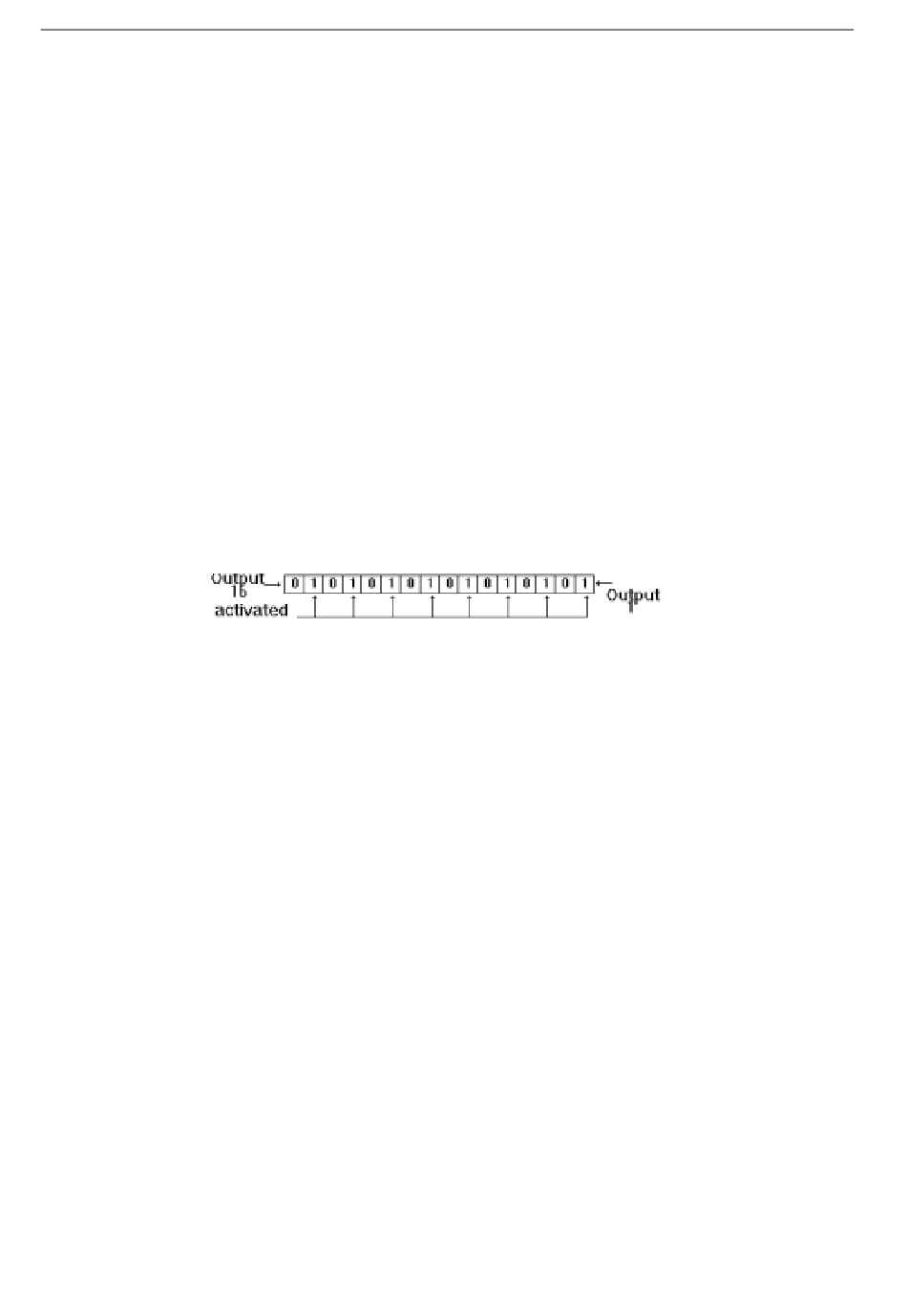

The output channels 1, 3, 5, 7, 9, 11, 13, 15 are set.
The output channels 2, 4, 6, 8, 10, 12, 14, 16 are reset.
Return value:
0: No error
Chapter 9
ui_BaseAddress
l_Value
l_Value = 5555 Hex
(UINT ui_BaseAddress,
LONG l_Value)
xPCI-1500 base address
Output value (0 to 65535)
APCI-/CPCI-1500
71
