Setting the play of controls

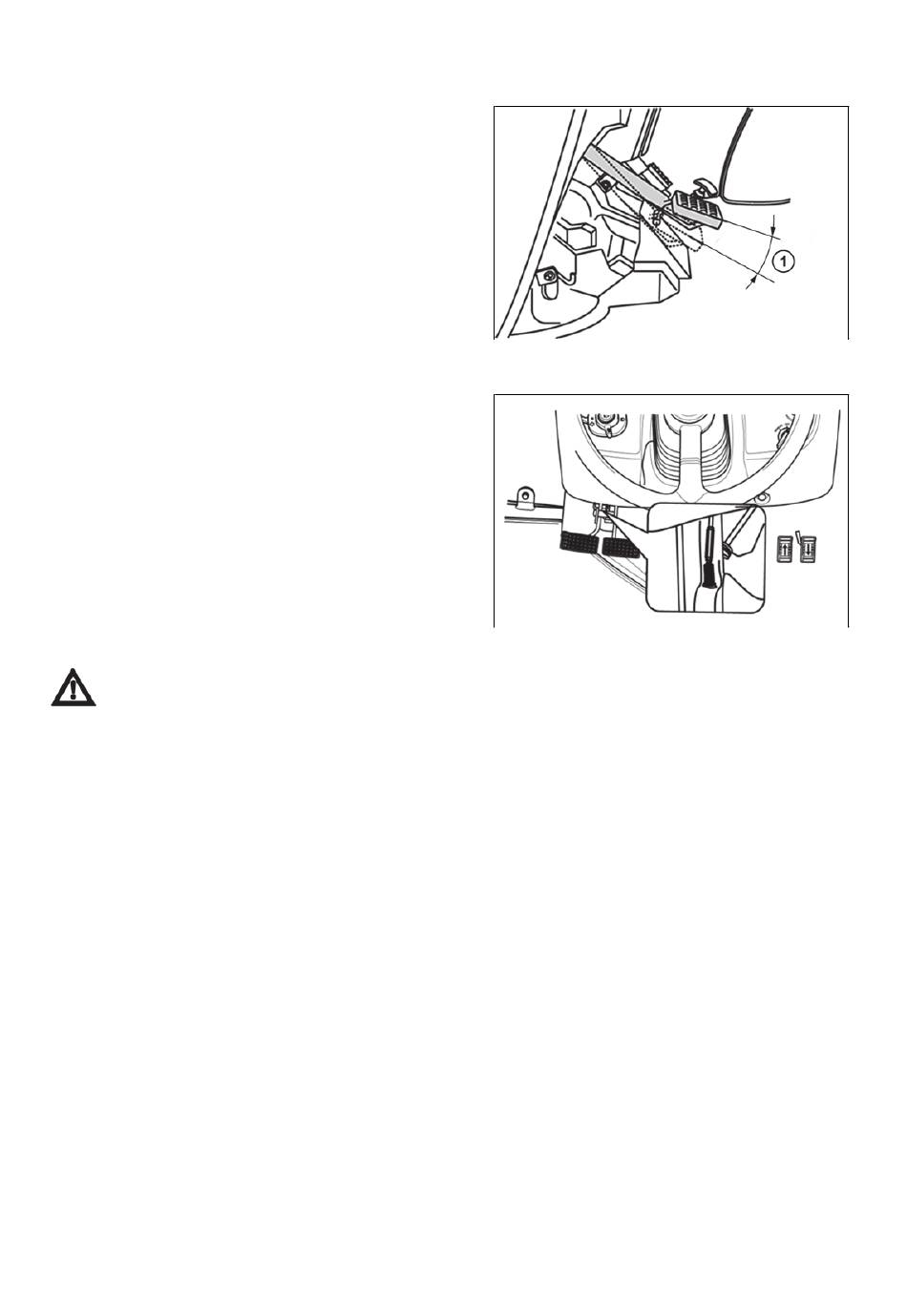

Adjusting the brake

1 - Free play
Using the brake over a period of time will increase the free
play.
The correct free play of the pedal is 0.78~1.18 in To
adjust, loosen the locknut on the turnbuckle and adjust.
Check the adjustment and tighten the locknut if the free
play is correct.

Adjusting method

Loosen the double lock nut to adjust the brake.
Rotate to increase or decrease play.
Tighten the double lock nuts and secure the nuts.
Check that the play is correct and the same on both
pedals for even braking effect.
Caution: Uneven adjustment of the left and right pedal will result in one sided braking when
the pedals are connected and can cause serious accidents, especially at high speeds.
Double check to ensure free play is the same on both pedals.

Adjusting the throttle lever

If this lever is loose or difficult to move, please contact an authorized service to help you solve the problem.

Adjusting toe-in

If the convergence is set incorrectly, it can cause severe vibration of both the steering wheel and the tractor.
The correct convergence is 0.08 ~ 0.24 in. (2 ~ 6 mm). We recommend that this setting is carried out by an
authorized service.
106
MAINTENANCE INSTRUCTIONS
U18N091
U18N092
