Dune 125 - Dune X 125 - Euro 4


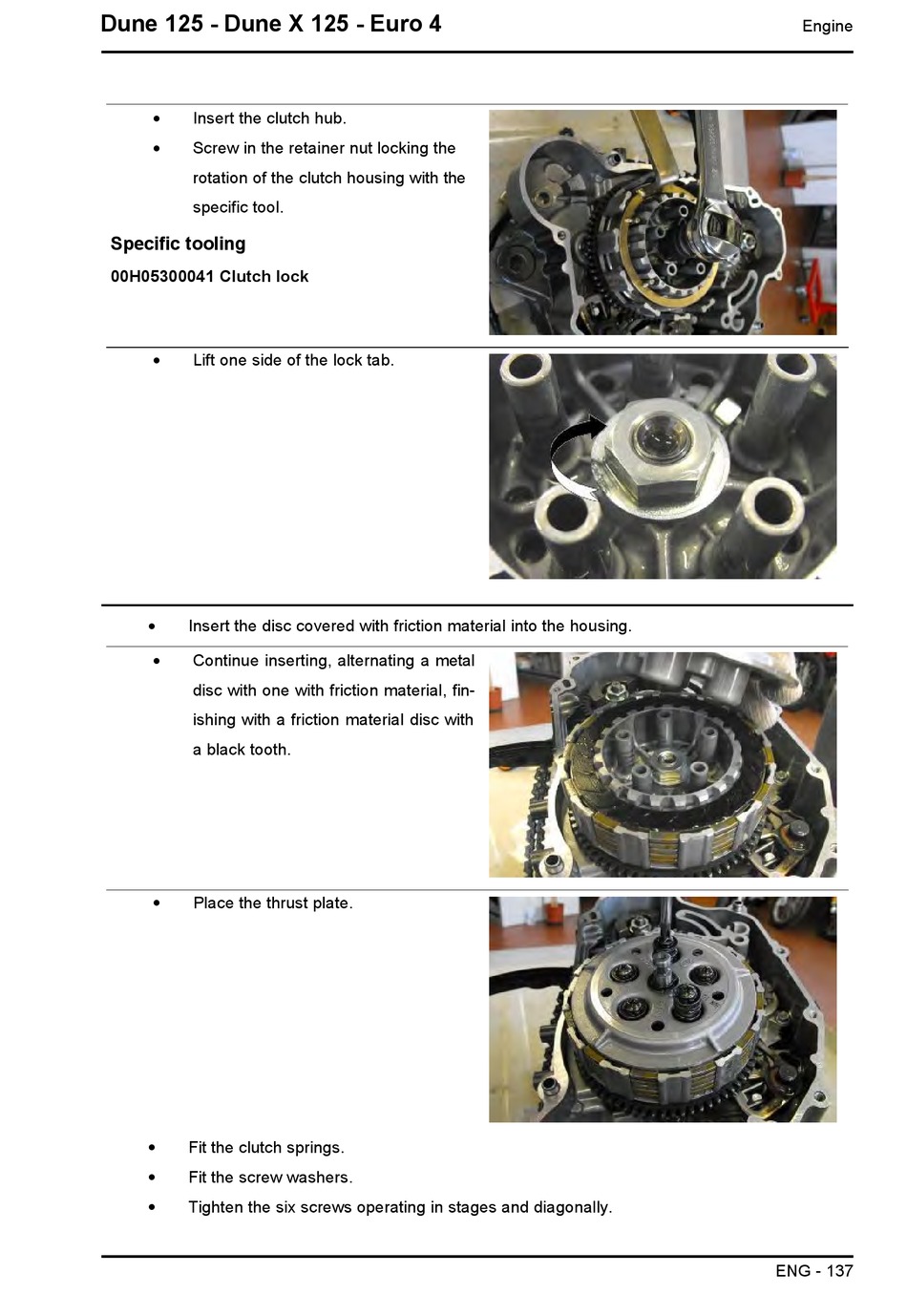

Insert the clutch hub.

Screw in the retainer nut locking the
rotation of the clutch housing with the
specific tool.
Specific tooling
00H05300041 Clutch lock

Lift one side of the lock tab.

Insert the disc covered with friction material into the housing.

Continue inserting, alternating a metal
disc with one with friction material, fin-
ishing with a friction material disc with
a black tooth.

Place the thrust plate.

Fit the clutch springs.

Fit the screw washers.

Tighten the six screws operating in stages and diagonally.
Engine
ENG - 137
