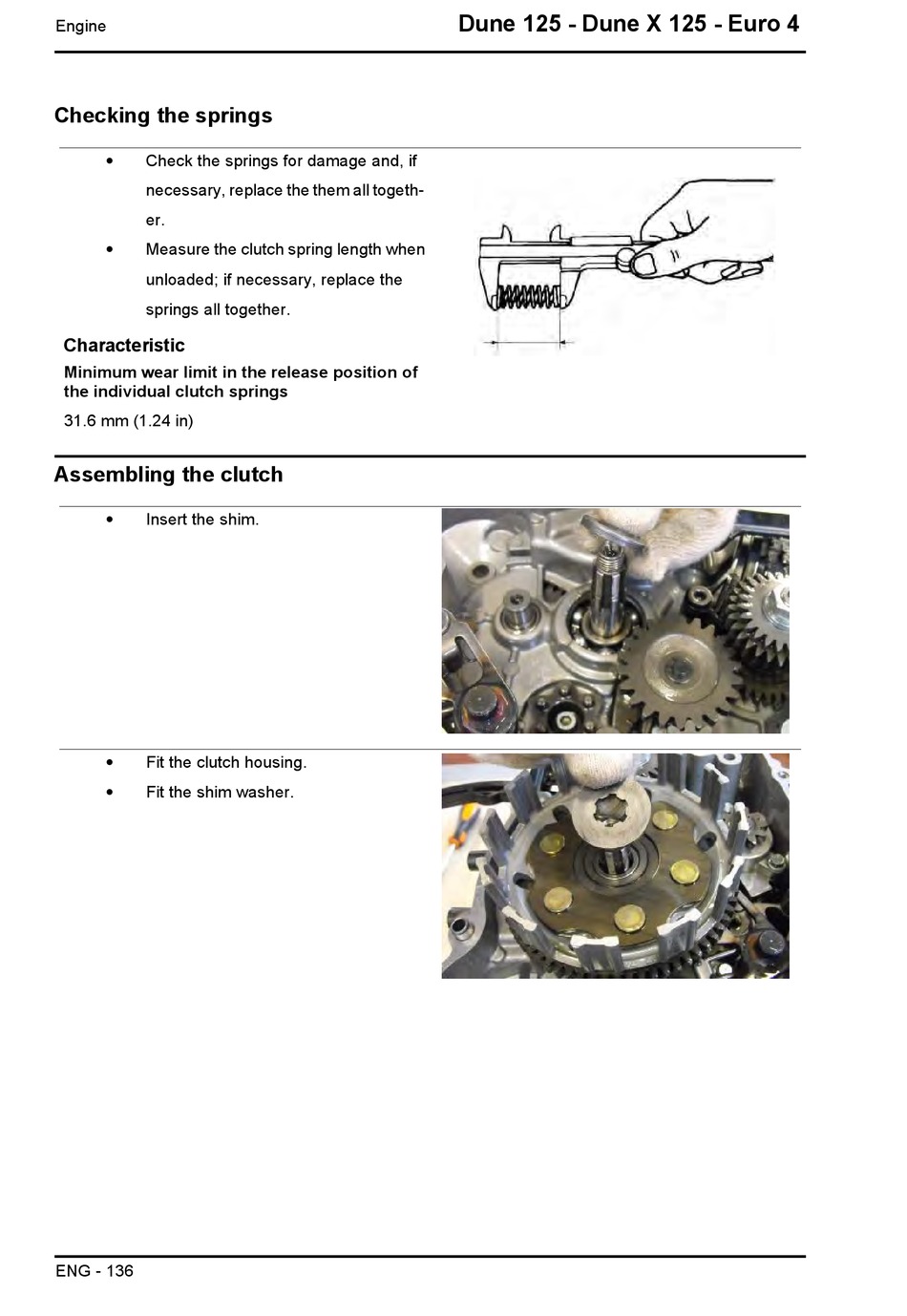

Checking the springs


Check the springs for damage and, if
necessary, replace the them all togeth-
er.

Measure the clutch spring length when
unloaded; if necessary, replace the
springs all together.
Characteristic
Minimum wear limit in the release position of
the individual clutch springs
31.6 mm (1.24 in)

Assembling the clutch


Insert the shim.

Fit the clutch housing.

Fit the shim washer.
