Mechanical dimensions

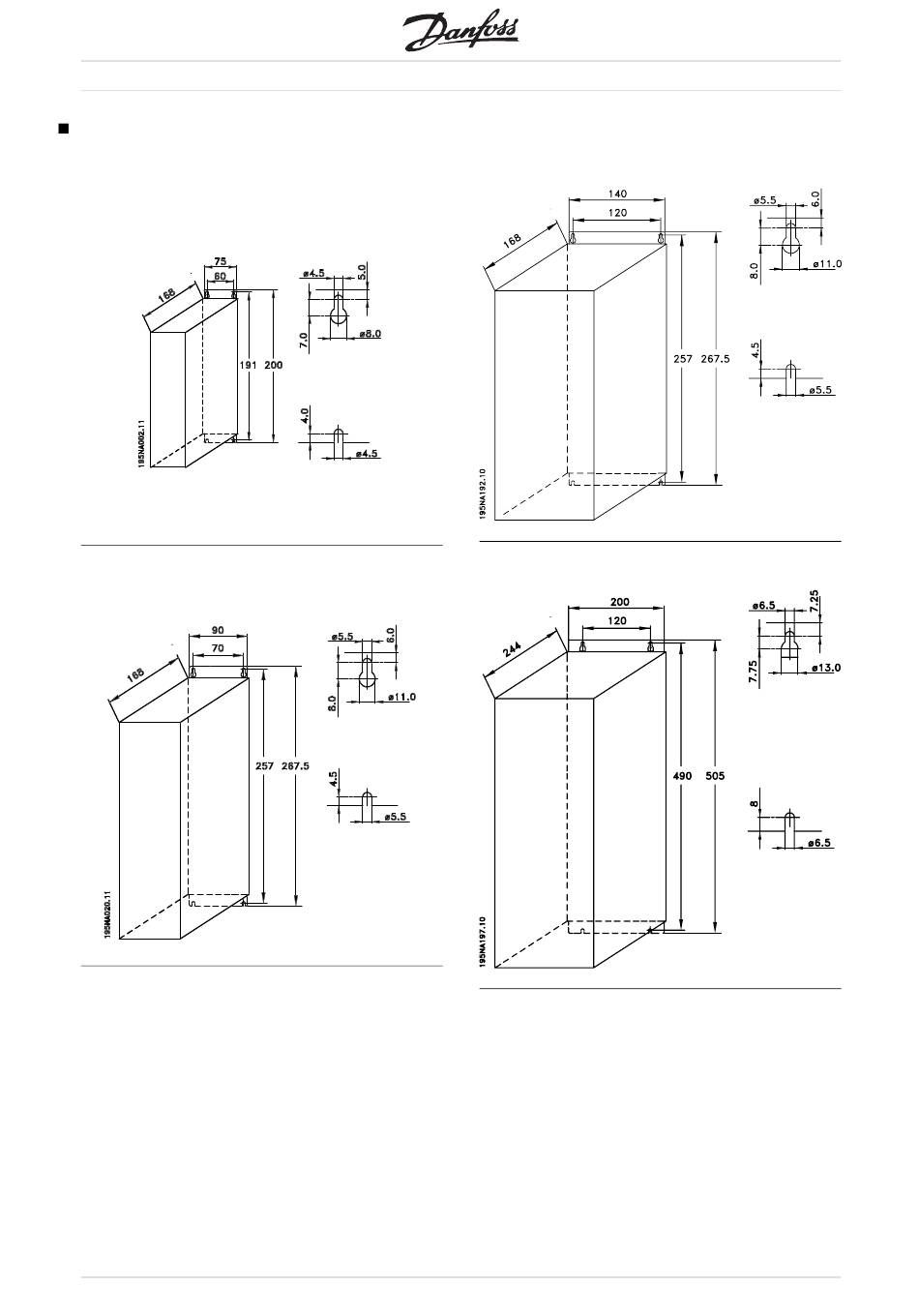

The drawings below give the mechanical dimensions.
All dimensions are in mm.
AKD 2803-2815 200-240 Volt
AKD 2805-2815 380-480 Volt
AKD 2822 200-240 Volt
AKD 2822-2840 380-480 Volt
46
AKD 2800
AKD 2840 200-240 Volt
AKD 2855-2875 380-480 Volt
AKD 2880-2882 380-480 V
MG.28.H2.02 -
