Specifications

6 Specifications

6.1 Nameplate

Danfoss geared motors are supplied with a corrosion-proof
nameplate as standard. The standard nameplate is made of
special plastic tried and tested in many years of practical
use and approved for hazardous areas by the Physikalisch-
Technische-Bundesanstalt (PTB).
6 6
178uxxxxxxxxxxb011
Type
OGDHK231K131402L09R1S11P1A9010H1Bxx
M 140-65 Nm
LT
I 7,2 A
Nmax
2,9 L Optileb GT220

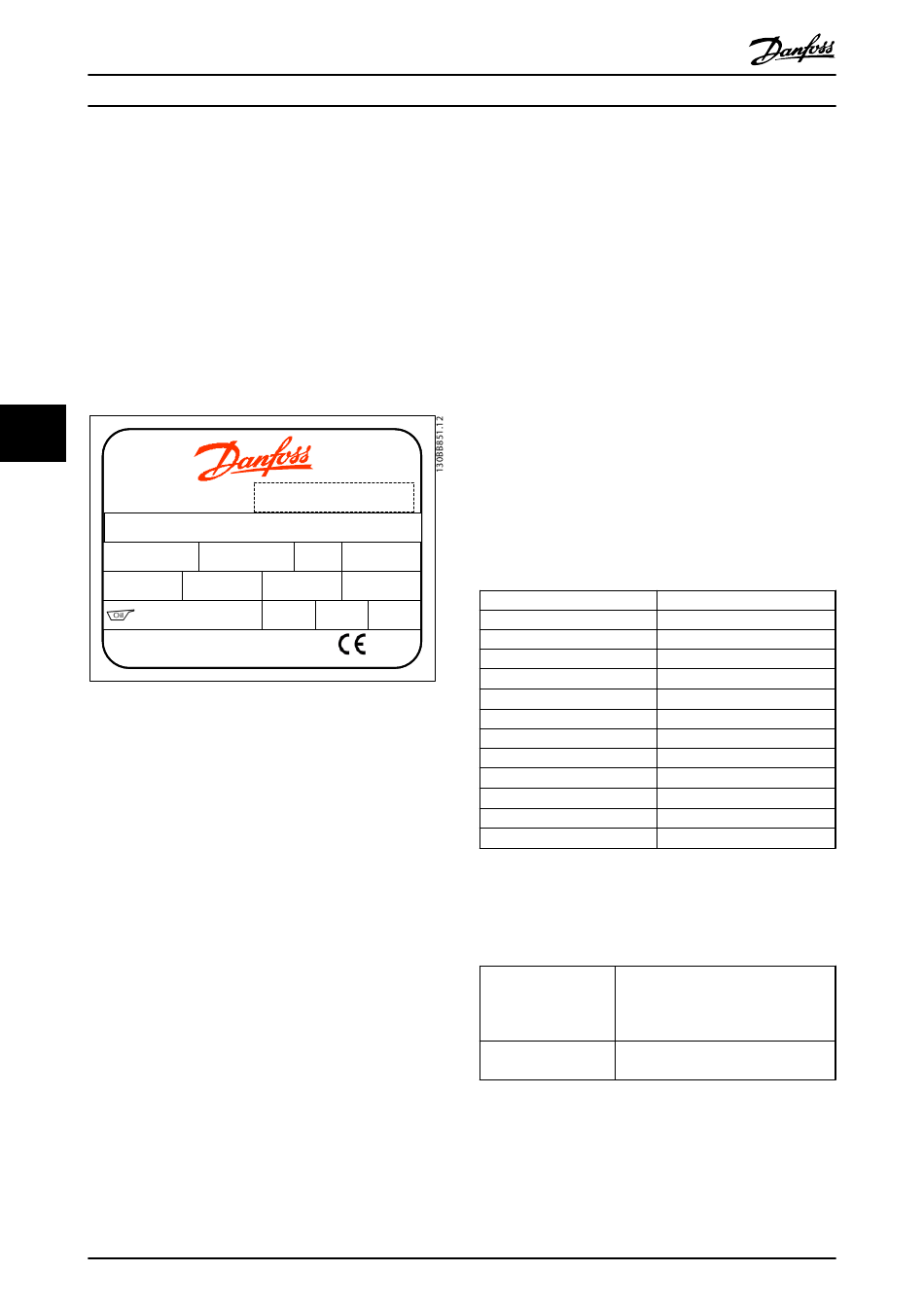

Illustration 6.1 Example Nameplate

6.2 Storage

®
If the VLT OneGearDrive is being stored for an extended
time before start-up, increased protection against damage
by corrosion or humidity can be achieved by observing the
following information. The actual load depends very
strongly on local conditions, therefore the time period
stated is only a guide value. Note that this period does not
include any extension of the warranty. If disassembly is
necessary before start-up, contact Danfoss Service. The
instructions contained in this document must be observed.
Check the factory-fitted plugs in all entry holes on the
terminal box for damage caused during transportation and
for correct positioning. Replace if necessary.
Repair any damage to the exterior paint layer or to the
rust protection of the bright metal shafts, including hollow
shafts.
The storage space should be dry, well-ventilated and
vibration-free. If the temperature in the space exceeds the
normal range of -20 °C to +40 °C for an extended period
of time or varies strongly frequently, employ the measures
22
VLT
Barcode
n 0..370 rpm i 8,12 f
LT max
KTY 84-130 155 °C (F)
t 40 °C
amb
P3 IP 69K
Made in Germany
MG75C302 - VLT
®
OneGearDrive Operating Instructions
before start-up specified in 3.1 Measures before Commis-
sioning, even after short storage times.
It is recommended that the drive units be turned 180°
every 12 months so that the lubricant in the gear unit
covers the bearings and gearwheels which have previously
been positioned on top. Also, the output shaft should be
turned manually in order to churn the rolling-contact
bearing grease and distribute it evenly.
Turning the drive unit does not have to be carried out if
the gear unit enclosure is completely filled with lubricant
as the result of a special agreement. In this case, the
lubricant level before start-up is to be reduced to the
desired value as defined in the operating instructions and
the nameplate.
6.3 Permanent Magnet Three-phase
250 Hz
Synchronous Motor
Rated torque
28 kg
Rated current
Rated speed
Rated frequency
Motor circuit
Winding resistance (Rtt)
Winding inductivity (Ltt)
Inductivity - D axis (Ld)
Inductivity - Q axis (Lq)
Motor poles (2p)
Moment of inertia
Back EMF constant (ke)
Torque constant (kt)
Table 6.1 Specifications
6.4 General Specifications and
Environmental Conditions
Installation elevation
Maximum backlash of
gearbox unit
Table 6.2 General Specifications and Environmental Conditions
®
is a registered Danfoss trademark
12.6 Nm
7.2 A
3000 rpm
250 Hz
Y
1Ω
9 mH
5 mH
5 mH
10
0.0043 Kgm ²
120 V/1000 rpm
1.75 Nm/A
No derating (0%) up to 1000 m above
NN.
10% derating for every 1000 m above
1000 NN.
±0.07°
