Liquidew I.S. User's Manual
A.1

Dimensional Drawings

CHANNEL 1
CHANNEL 2
Michell Instruments
CHANNEL 3
CHANNEL 4
483mm
(19")

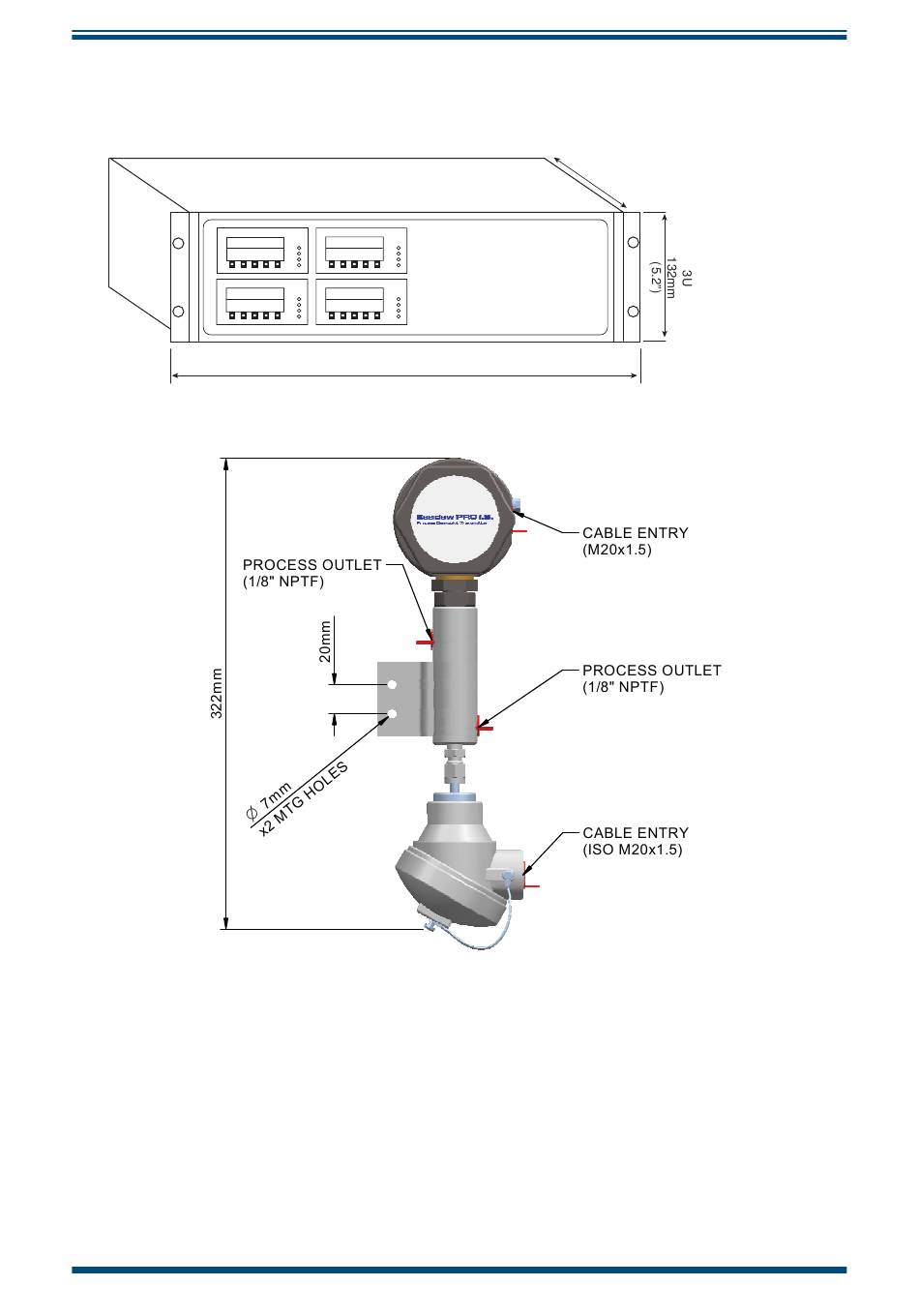

Figure 23
Dimensional Drawings
APPENDIX A
375mm + 100mm for cable clearance
(14.75" + 3.9")
49
