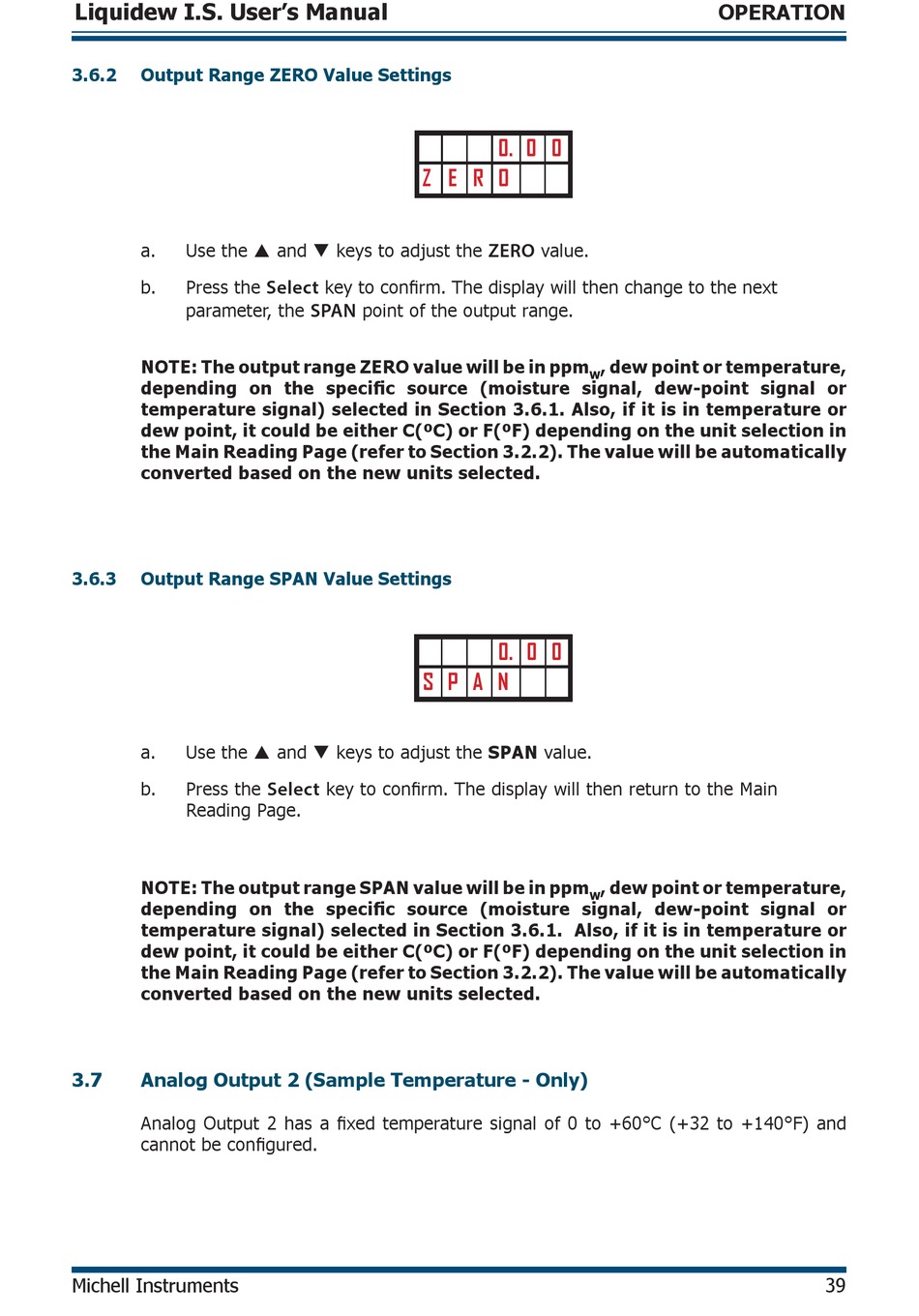

3.6.2

Output Range ZERO Value Settings

a.
Use the  and  keys to adjust the
b.
Press the
parameter, the
NOTE: The output range ZERO value will be in ppm
depending on the specifi c source (moisture signal, dew-point signal or
temperature signal) selected in Section 3.6.1. Also, if it is in temperature or
dew point, it could be either C(ºC) or F(ºF) depending on the unit selection in
the Main Reading Page (refer to Section 3.2.2). The value will be automatically
converted based on the new units selected.
3.6.3

Output Range SPAN Value Settings

a.
Use the  and  keys to adjust the SPAN value.
b.
Press the
Reading Page.
NOTE: The output range SPAN value will be in ppm
depending on the specifi c source (moisture signal, dew-point signal or
temperature signal) selected in Section 3.6.1. Also, if it is in temperature or
dew point, it could be either C(ºC) or F(ºF) depending on the unit selection in
the Main Reading Page (refer to Section 3.2.2). The value will be automatically
converted based on the new units selected.
3.7

Analog Output 2 (Sample Temperature - Only)

Analog Output 2 has a fi xed temperature signal of 0 to +60°C (+32 to +140°F) and
cannot be confi gured.
Michell Instruments
Z E R O
key to confi rm. The display will then change to the next
Select
point of the output range.
SPAN
S P A N
key to confi rm. The display will then return to the Main
Select
0. 0 0
value.
ZERO
, dew point or temperature,
W
0. 0 0
, dew point or temperature,
W
OPERATION
39
