Liquidew I.S. User's Manual
Preparation of the Sensor Cable

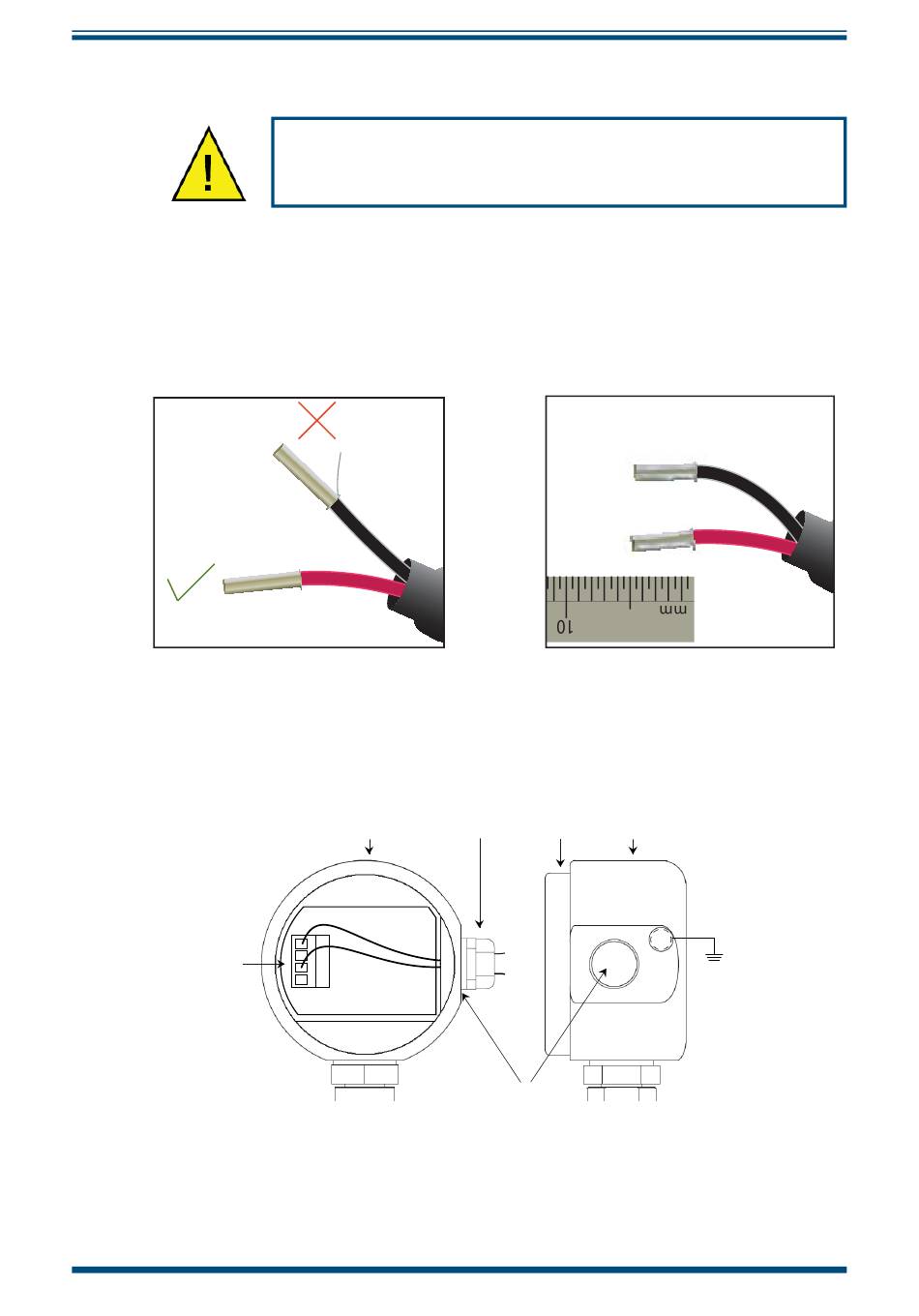

a. As shown in Figure 15 below, the crimps/wire ferrules should be applied
so that there is no possibility of a conductor strand of a core becoming
free.
When the crimp/wire ferrules are applied they should have a minimum of
two positions of crimping. After the crimp/wire ferrules are applied they
should be trimmed to a length of 5mm (0.2") (see Figure 16).
Figure 15
b. Cable connection to the dew-point transmitter is made via the terminal
block (4) (see Figure 17) . Remove the terminal housing lid (2) to access.
4
Michell Instruments
In order to comply with hazardous area certifi cation of the
product it is essential that the crimps/wire ferrules supplied
must be attached on to any cable installed into the connector.
Crimped Wires
1
Dew-Point Transmitter Housing
Figure 17
Figure 16
5 2 1
3
INSTALLATION
Cut to 5mm
