Liquidew I.S. User's Manual

3.9.2

Alarm Type Selection

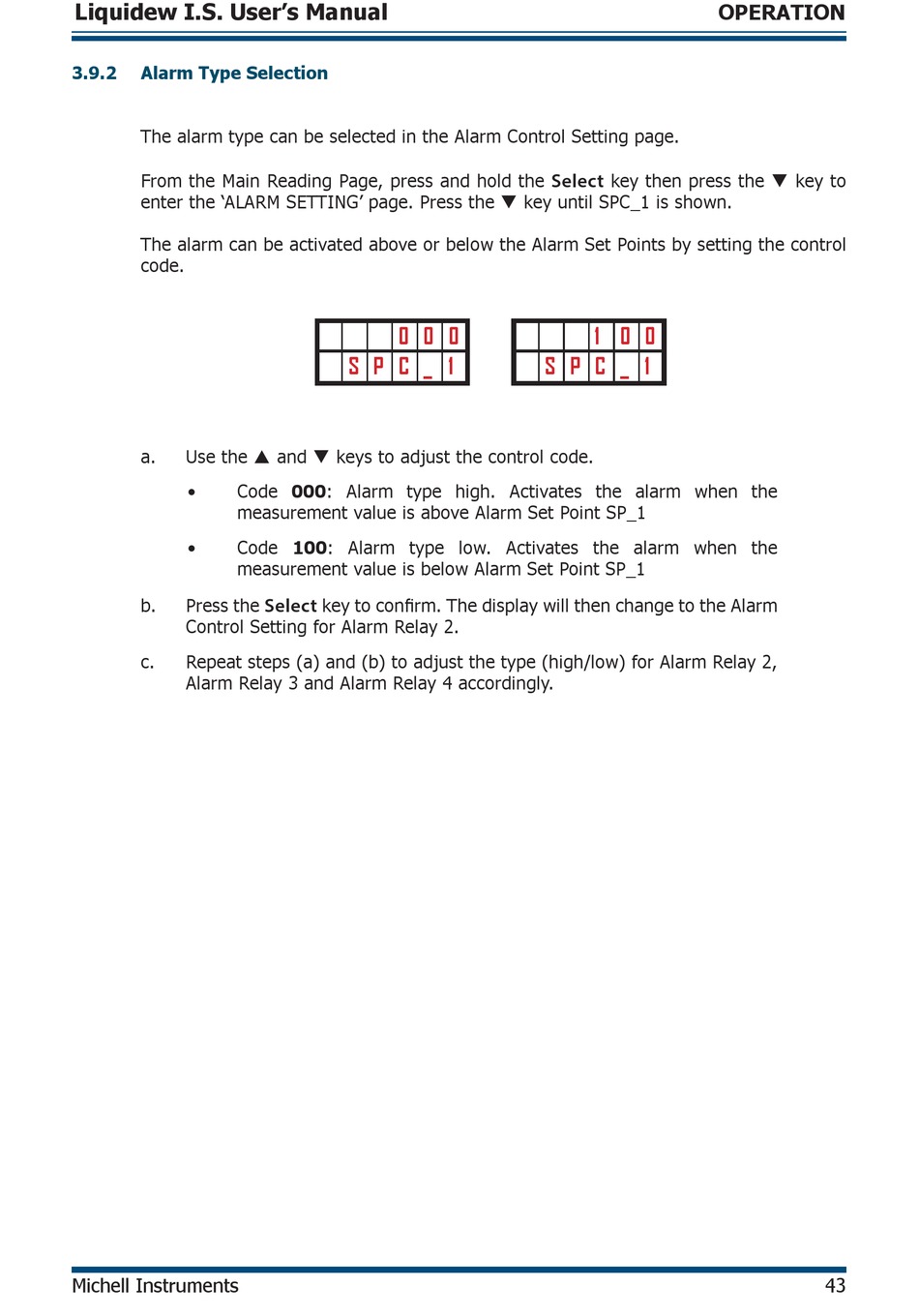

The alarm type can be selected in the Alarm Control Setting page.

From the Main Reading Page, press and hold the

enter the 'ALARM SETTING' page. Press the  key until SPC_1 is shown.

The alarm can be activated above or below the Alarm Set Points by setting the control

code.

Use the  and  keys to adjust the control code.

•

Code 000: Alarm type high. Activates the alarm when the

measurement value is above Alarm Set Point SP_1

•

Code 100: Alarm type low. Activates the alarm when the

measurement value is below Alarm Set Point SP_1

Press the

Control Setting for Alarm Relay 2.

Repeat steps (a) and (b) to adjust the type (high/low) for Alarm Relay 2,

Alarm Relay 3 and Alarm Relay 4 accordingly.

Michell Instruments

0 0 0

S P C _ 1

key to conﬁ rm. The display will then change to the Alarm

Select

OPERATION

key then press the  key to

Select

1 0 0

S P C _ 1
