Setting the Feed Dog Position

When the stitch length regulator is set at its
maximum length (8mm), rotate the balance
wheel so that the feed dog is as far forward as
possible. The front end of feed dog should be
very close to the front needle plate opening.
The distance between the two should be about
75).
1.5mm (Figure

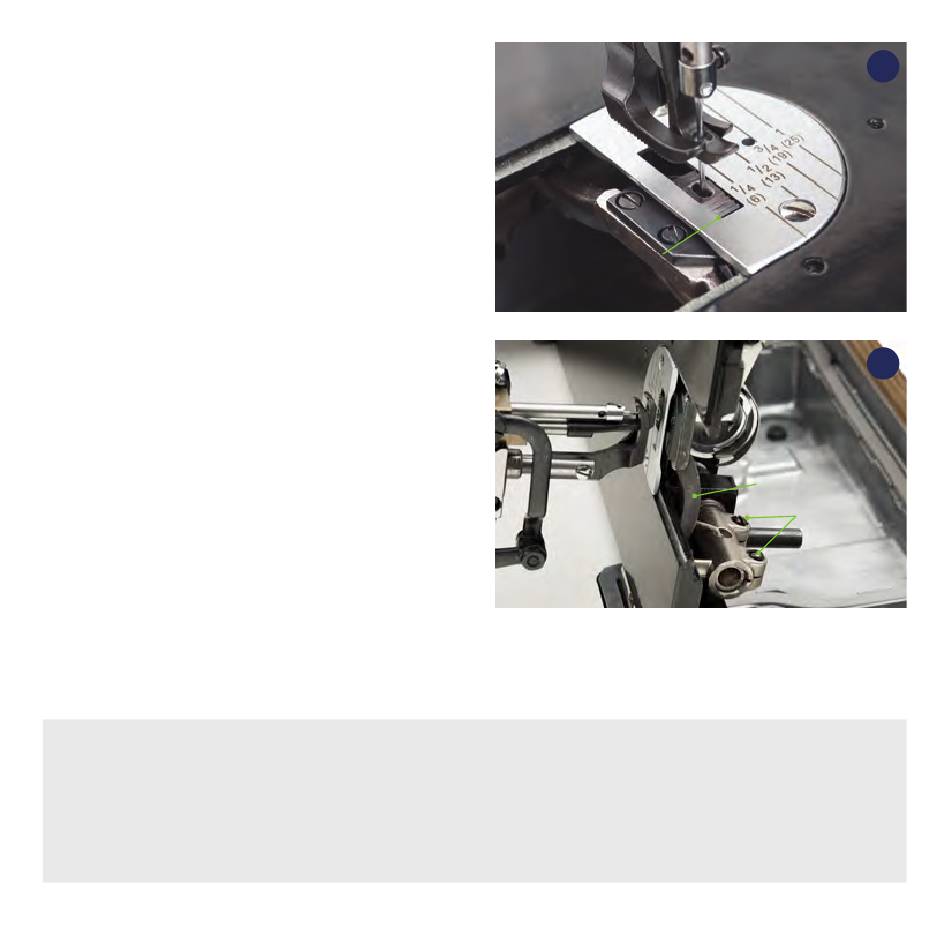

If it needs adjustment, tilt the machine so it is
hinged back in the table and loosen screws (E)
76). Then, move the feed dog support
(Figure
(F) up or down which will move the feed dog
forward or back within the needle plate opening.
After proper adjustment, tighten screws (E).
Note About Adjustments:
Any adjustments made in this section (p. 44-49) will alter subsequent settings. Once a change
has been made, all adjustments on the following pages need to be made to ensure proper
timing. For example, if a change is made on page 45, changes outlined on pages 46-49 must be
done to maintain proper timing.
