Installing the Linkage Bar

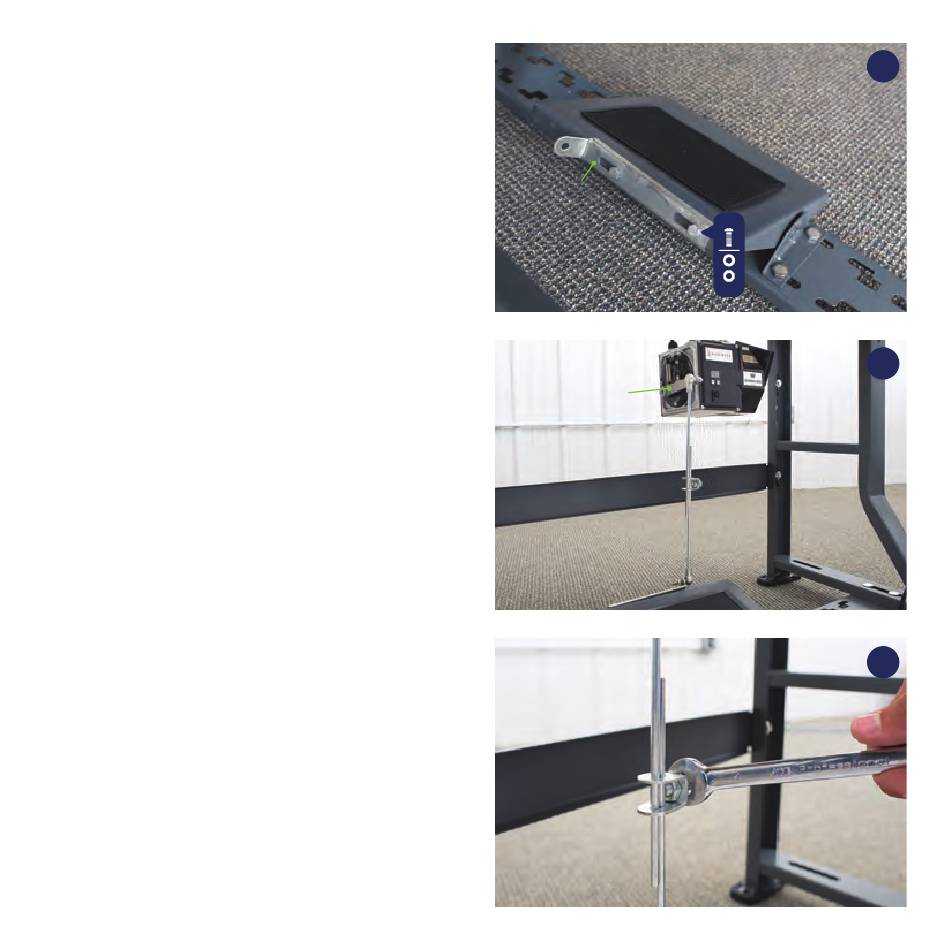

Bolt the L-bracket (B) to the holes on the back
of the treadle so that its shorter leg is sticking
out toward the back of the table pointing toward
the Workhorse motor.
should be roughly vertical to the motor operation
lever (C).
Bolt the linkage bar (D) to the outer most hole of
the motor operation lever on the Workhorse and
the L-bracket (Figure
By increasing or decreasing the overlap of the
linkage bar, different treadle pedal angles can
be achieved. Use a size 14mm wrench to set
the angle to your preference
Sailrite Fabricator Guidebook
15). The short leg
(Figure
16).
17).
(Figure
B
C
D
15
16
17
| 8
