Attaching the Balance
Wheel Belt Cover

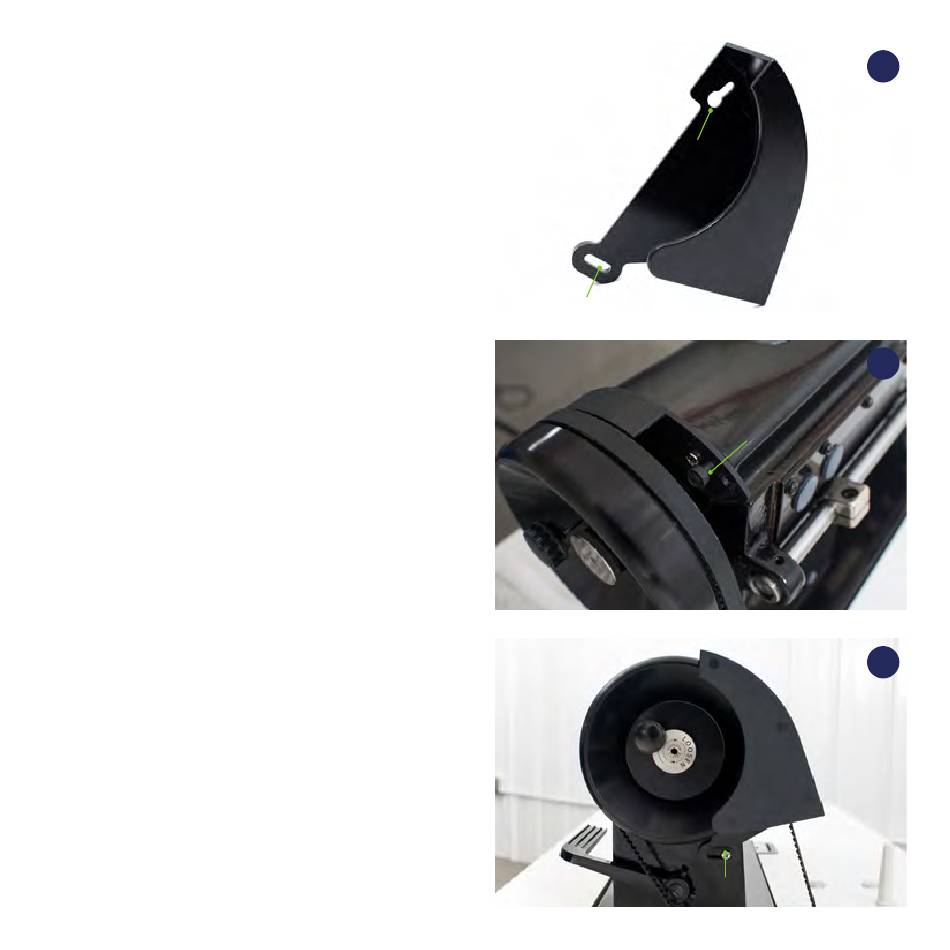

Locate the remaining portion of the belt cover
29). It has a keyway (B) that locks onto
(Figure
post (C) of the C-shaped belt guard that was
secured to the machine earlier
Connect the covers and remove the remaining
screw in the machine casting (D) which is below
the Stitch PRO Balance Wheel. Reinstall this
screw through the slot at the bottom of the belt
31). Position the screw in the slot
cover
(Figure
to provide proper belt clearance (typically all the
way to the right end of the slot) (E).
Sailrite Fabricator Guidebook
30).
(Figure
B
E
D
29
30
C
31
| 14
