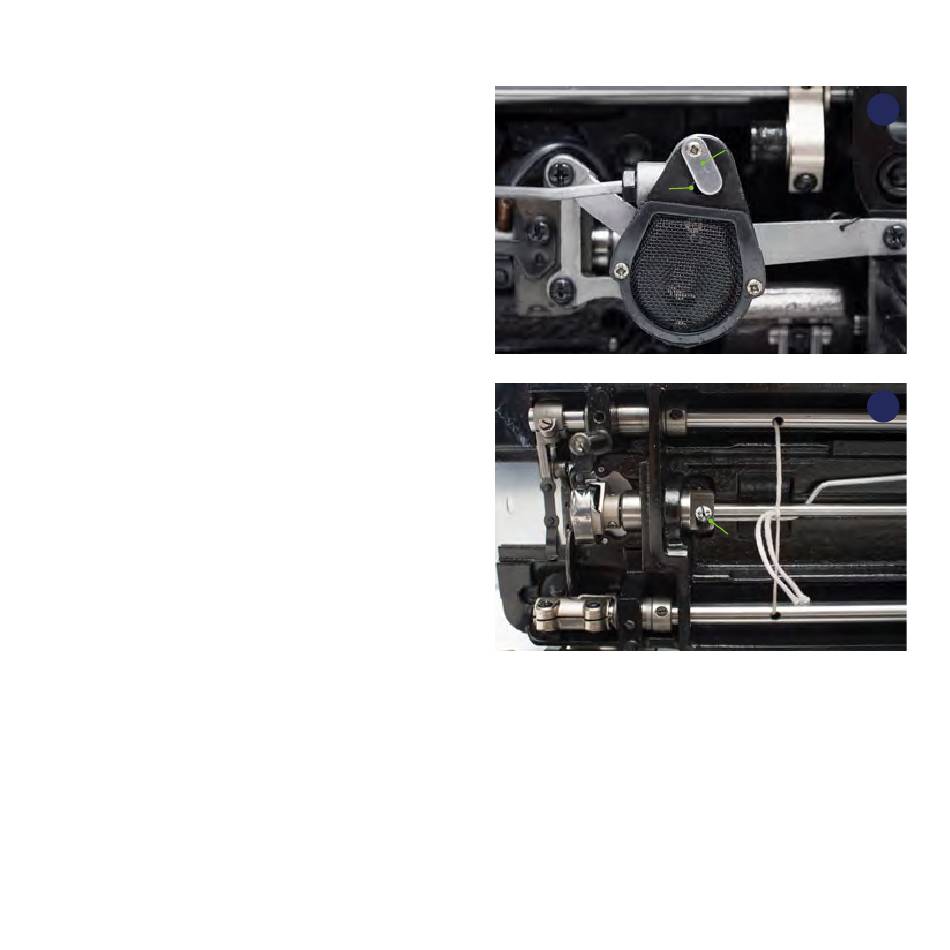

Controlling the amount of oil distributed to
the entire machine:
The oil pump setting when you receive the
machine is typically correct. If the machine is
not getting enough oil, tilt the machine back and
locate the sump (B). To increase oil flow, close
the clearance of the adjusting plate (C) over
the oil hole (D) to increase vacuum pressure
(Figure
40).
Controlling the amount of oil distributed to
the rotating hook:
The amount of oil getting to the hook can be
adjusted by turning screw (E). Turn it clockwise
to increase oiling or counterclockwise to
decrease oiling. The range of adjustment is
about five turns
(Figure
Note: If oil is splashing up through the needle
plate when sewing, decrease the oil flow to the
hook by turning the screw (E) counterclockwise.
Sailrite Fabricator Guidebook
41).
C
D
B
E
40
41
