Oil Pan and Machine Installation

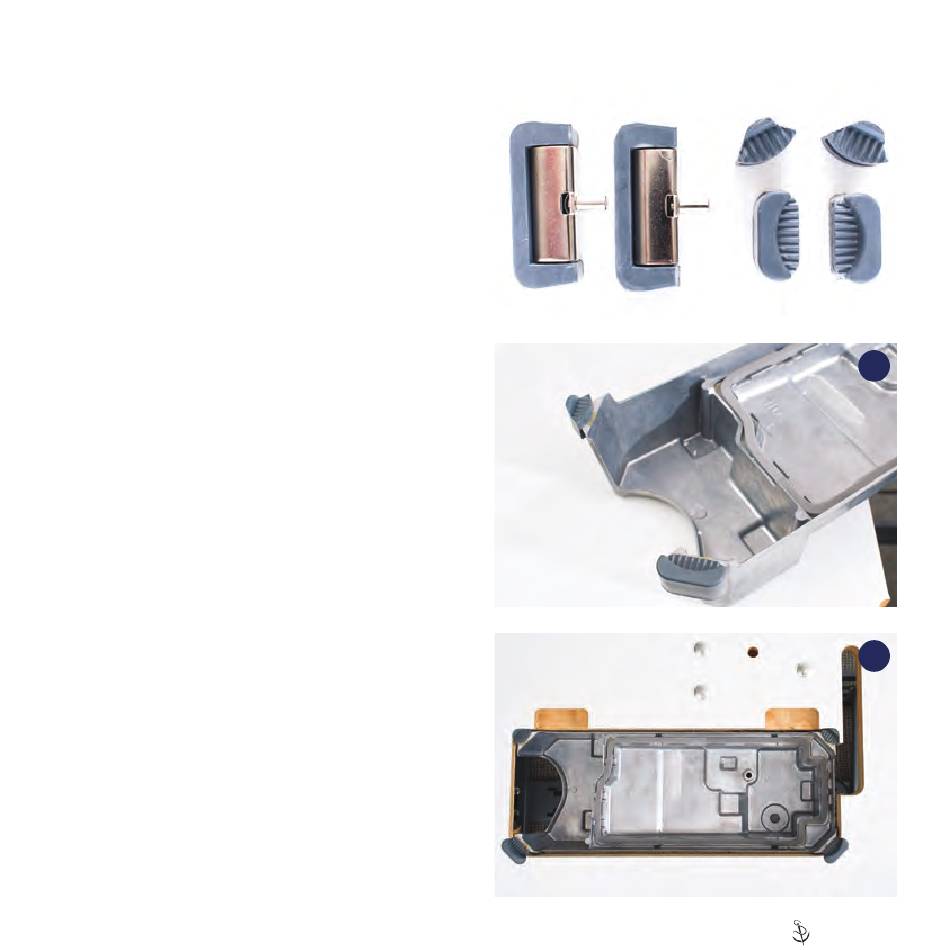

Locate the two back corner cushions (A), the
two front corner cushions (B) and the two hinge
cushions with chrome hinges (C).
Take out the cast aluminum oil tray (D) and slide
the four corner cushions onto each respective
corner flange (Figure
With the table upright, tilt the tray into the
tabletop cutout so that all four corner cushions
drop down into the ledges. The edge of the oil
tray with the crescent cutout should be facing
the left side of the table, away from the belt slot.
19).
(Figure
