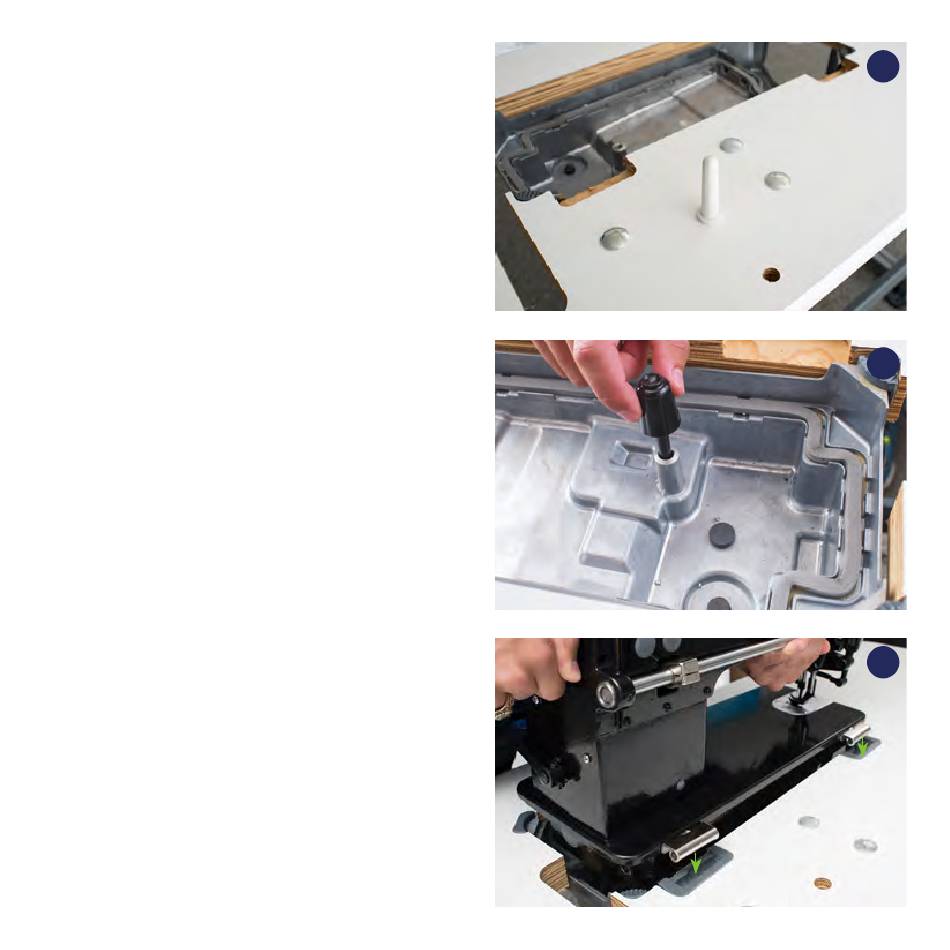

Push the machine Support Pin (E) into the hole
in the tabletop nearest the carriage bolts holding
the motor. The fit may be tight so just push until
snug (Figure 20).
Insert the tapered end of the knee lift post
connector (F) into the raised hole in the bottom
of the oil tray (G) (Figure
Find the magnet for the oil tray (H) and place it
in the bottom of the oil tray
Next, take the rubber pads off of the chrome
hinges (C) and place them into their respective
tabletop cavities (I). Insert the two chrome
hinges into the two holes located on the back
side of the sewing machine (J).
With help, lift and lower the sewing machine into
the tabletop so that the chrome hinges fit into
the rubber pads (Figure
Sailrite Fabricator Guidebook
21).
21).
(Figure
22).
