Securing the Stitch PRO
Balance Wheel
Remove the Posi-Pin (wrapped in plastic) from
the Posi-Pin Wheel Bushing on the upper shaft
of the sewing machine.

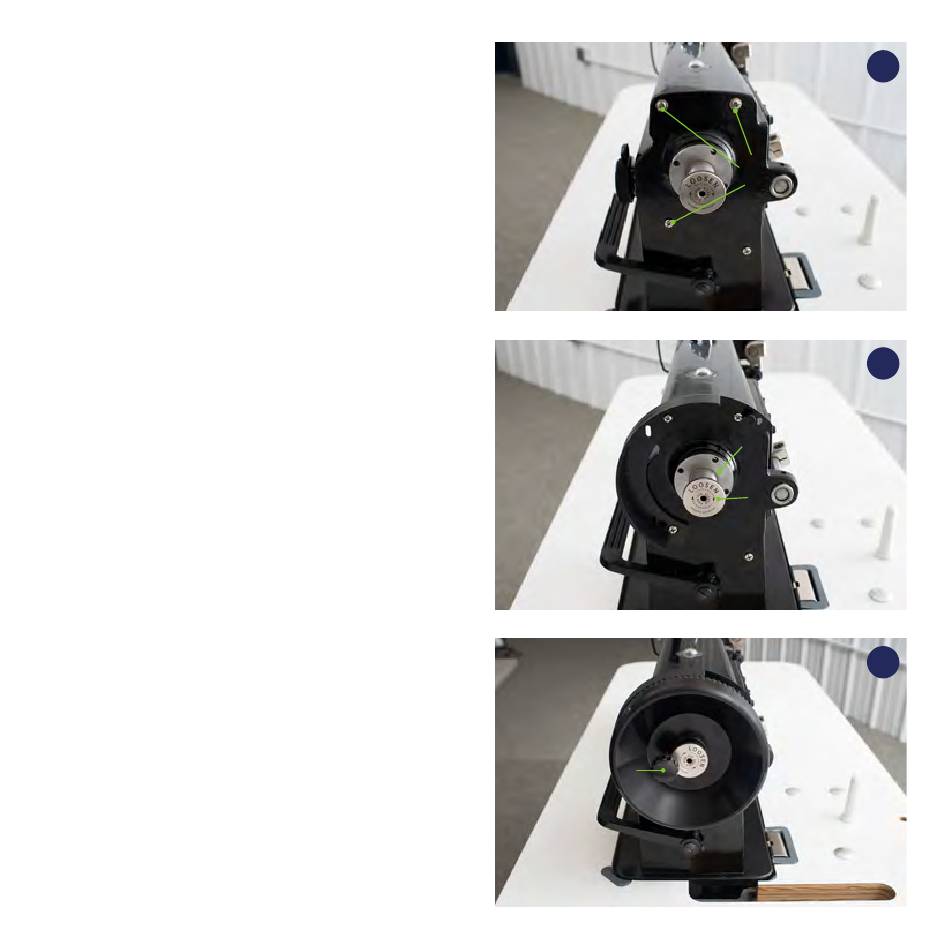

Remove the three screws (A) for the belt cover
24). Position the C-shaped
installation
(Figure
belt guard and reinstall the screws making sure
washers are positioned as shims behind the
guard to keep it from being bent out of shape
25).
(Figure
Unscrew the reverse-threaded Posi-Pin Nut
(B). Slide the Stitch PRO Balance Wheel onto
the Posi-Pin Wheel Bushing (C), making sure
it does not interfere with the belt cover. If the
wheel hits the belt cover, reposition the washers
placed under the C-shaped belt guard or move
the bushing out further by loosening the set
screws in the bushing.
Thread the reverse-threaded nut back onto
the bushing and tighten by hand. Rotate the
balance wheel until the hole in the balance
wheel is aligned with one of the four bushing
holes. Push the Posi-Pin (D) through the holes
to lock the balance wheel to the bushing (it will
spring back slightly). Rotation of the balance
wheel will now cause the machine to function
26).
(Figure
Sailrite Fabricator Guidebook
A
C
B
D
24
25
26
