Installing the Treadle

The treadle is typically installed near the center
of the treadle mount bar, but it can be set to the
user's preference anywhere on the bar.

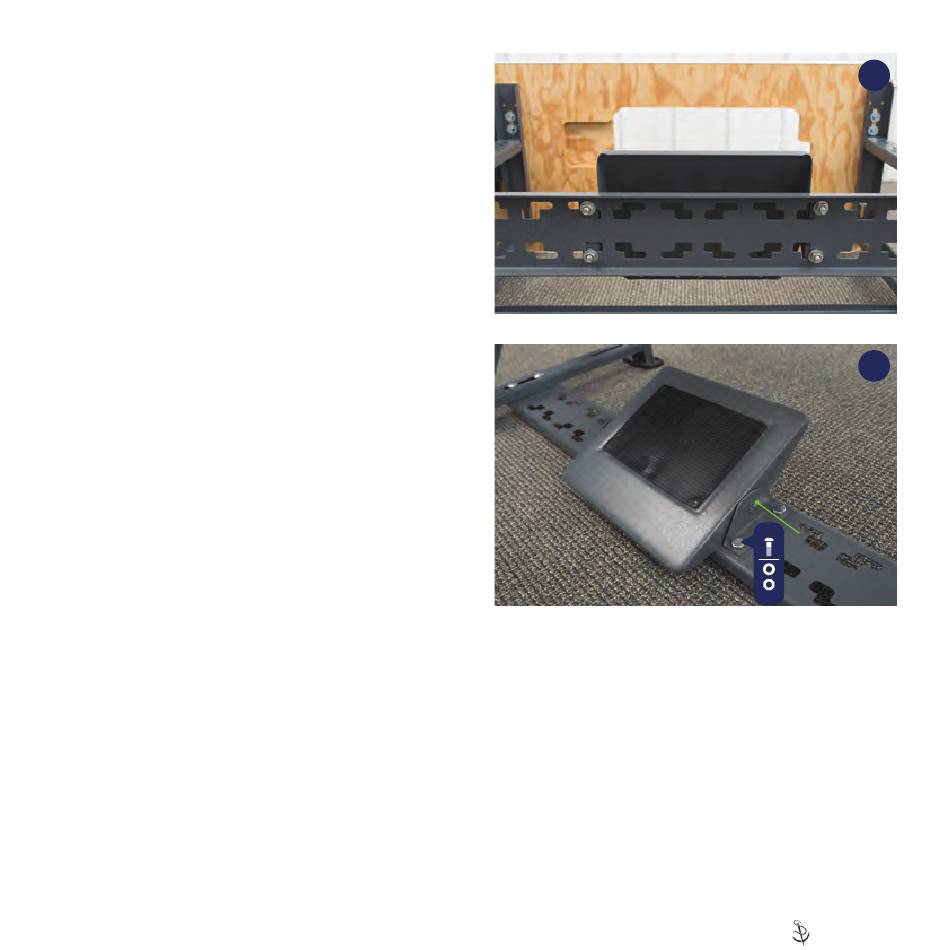

After determining placement and taking note of
desired location of the treadle, flip the table onto
its back side (Figure 13).
The two end pivots (A) fit into the sides of the
treadle pedal and are then bolted to the mount
bar with 4 bolts to hold it in position
13-14).
The rubber pad will be face up and the side with
the bolt holes will be to the back of the table
(away from the machine operator). These holes
will be used to attach the treadle to the motor.
Tip: Install the pivots first but do not tighten
completely. Then place the treadle in position
between the pivots and tighten bolts. Flip the
table upright and check to make sure the treadle
moves freely after the bolts are tightened.
BEFORE CONTINUING: See "Attaching
a Pulley" and "Installing the Workhorse
Servo Motor" in the Workhorse Servo Motor
Instructions.
7 |
(Figure
13
14
A
