Attaching the Bobbin Winder

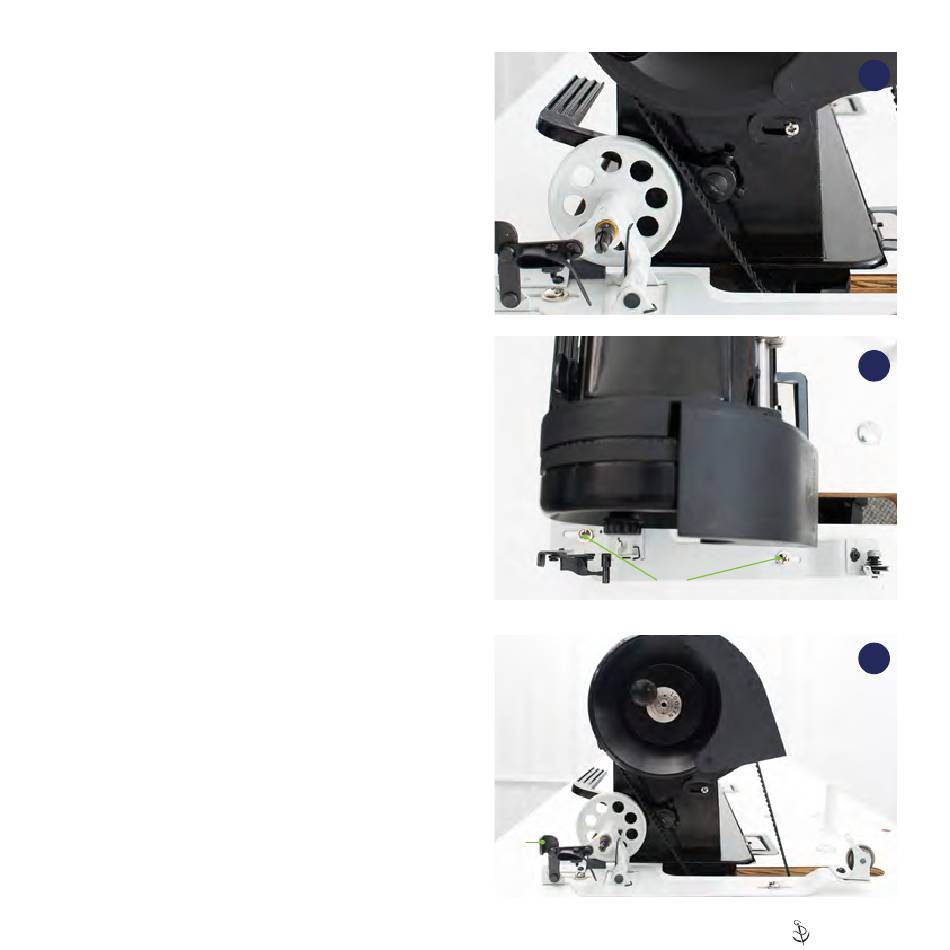

Now screw the bobbin winder to the tabletop. The
large wheel of the winder should be about 1/8"
forward of the belt (no contact)
in line with the belt. The long edge of the bobbin
winder should be parallel to the belt slot in the
33). Mark the location in each of
table (Figure
the slots where the screws will be positioned.
Remove the bobbin winder and using a 5/32"
drill bit, create pilot holes about 3/8" deep. Place
the bobbin winder so the slots are positioned
over the pilot holes. Mount the bobbin winder to
the tabletop with the two screws (A) positioned
in the bobbin winder slots.
Note: The bobbin winder should be disengaged
before installation.
Pressing the thumb pad (B) will move the wheel
into the belt in order to wind bobbins. The
thumb pad is on a hinged bracket so that when
thread has filled the bobbin, the mechanism will
disengage the wheel from the belt.
