Manual Oiling - Sailrite Fabricator Manual

Manual Oiling

43

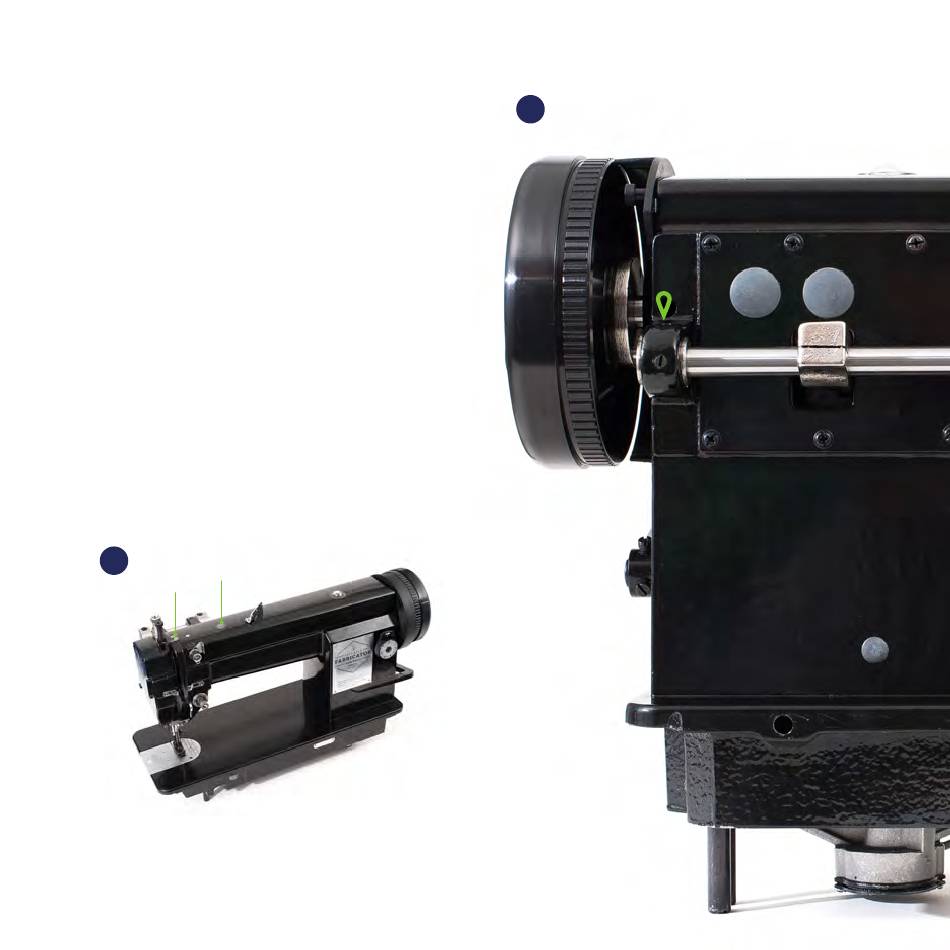

Remove the rubber plugs on top of the machine
& B) and put a small amount of oil
head (A
in hole (A); then, lift the presser foot and
run the machine at a moderate speed for a
few seconds. (B) is an access hole to get to
an internal oil port hole about 1" inside the
machine. Occasional manual oiling of the hook
and internal moving parts is recommended even
for auto-lubricating sewing machines. Put a drop
of oil on anything that looks like a gear, cam or
42-43).
slide (Figure
Note: Once oiled, sew a scrap piece of material
to make sure all excess oil is worked out of
the machine so it does not leak onto your next
project.
42
B
A
21 |
Sailrite.com
