Figure 4. Motor Connection With X-Nucleo-Ihm16M1 - ST STM32 User Manual

Motor-control pack using the foc algorithm for three-phase, low-voltage, and low-current motor evaluation
Hide thumbs Also See for STM32:
Table of Contents

Advertisement

UM2538
Configure and run the motor control from the STM32 Nucleo motor-control pack
2.
Connect the three motor wires U,V,W on the CN1 connector as shown in
Figure
4.
Figure 4.

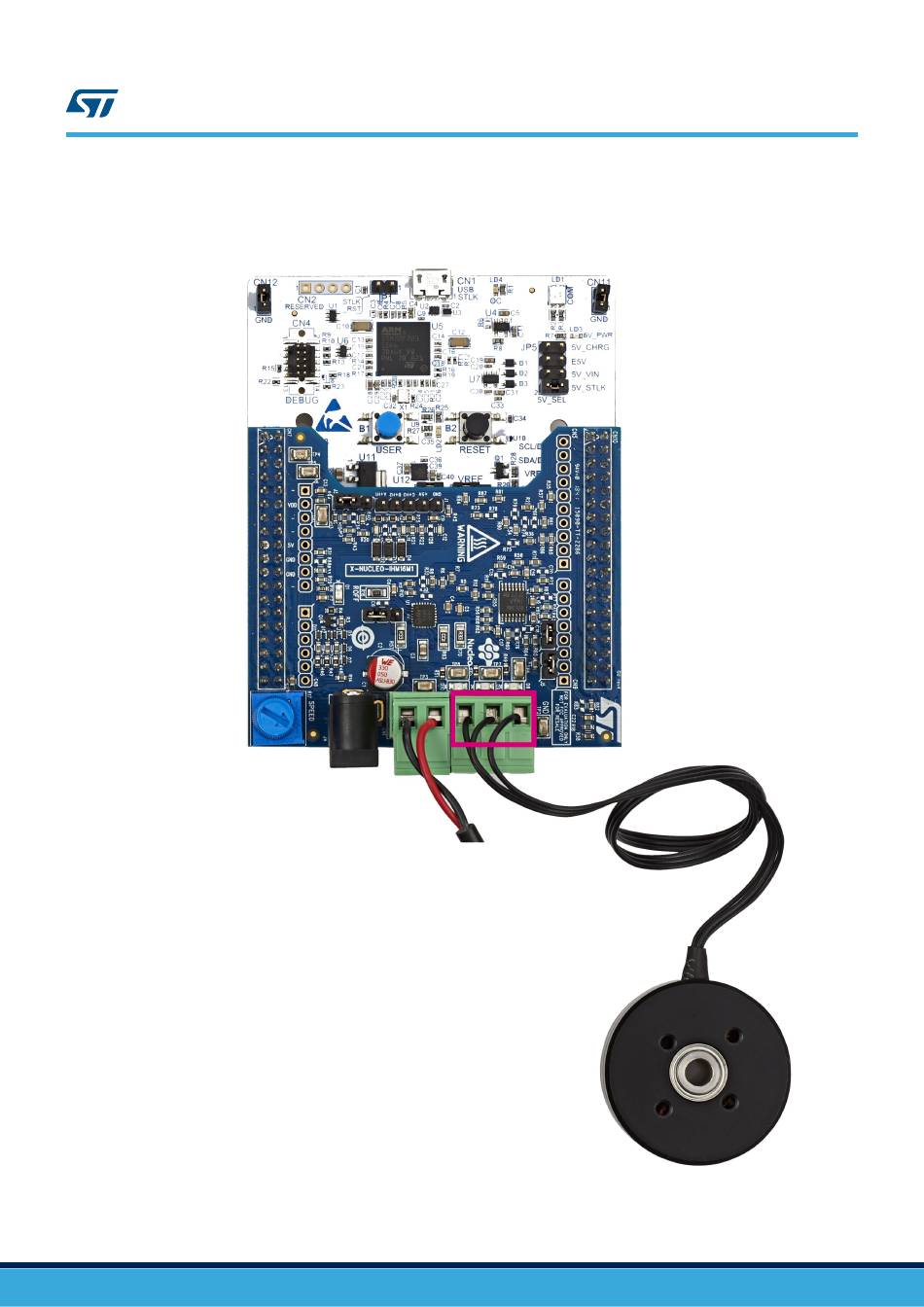

Motor connection with X-NUCLEO-IHM16M1
UM2538 - Rev 1
page 7/27
