UM1974
User manual
STM32 Nucleo-144 boards (MB1137)
Introduction
The STM32 Nucleo-144 boards based on the MB1137 reference board (NUCLEO-F207ZG,
NUCLEO-F303ZE, NUCLEO-F412ZG, NUCLEO-F413ZH, NUCLEO-F429ZI, NUCLEO-
F439ZI, NUCLEO-F446ZE, NUCLEO-F722ZE, NUCLEO-F746ZG, NUCLEO-F756ZG,
NUCLEO-F767ZI, and NUCLEO-H743ZI) provide an affordable and flexible way for users to
try out new concepts and build prototypes with STM32 microcontrollers, choosing from the
various combinations of performance, power consumption and features. The ST Zio
®
connector, which extends the ARDUINO
Uno V3 connectivity, and the ST morpho headers
make it easy to expand the functionality of the Nucleo open development platform with a
wide choice of specialized shields. The STM32 Nucleo-144 boards do not require any
separate probe as they integrate the ST-LINK/V2-1 debugger/programmer. The STM32
Nucleo-144 boards come with the comprehensive free software libraries and examples
available with the STM32Cube MCU Package.

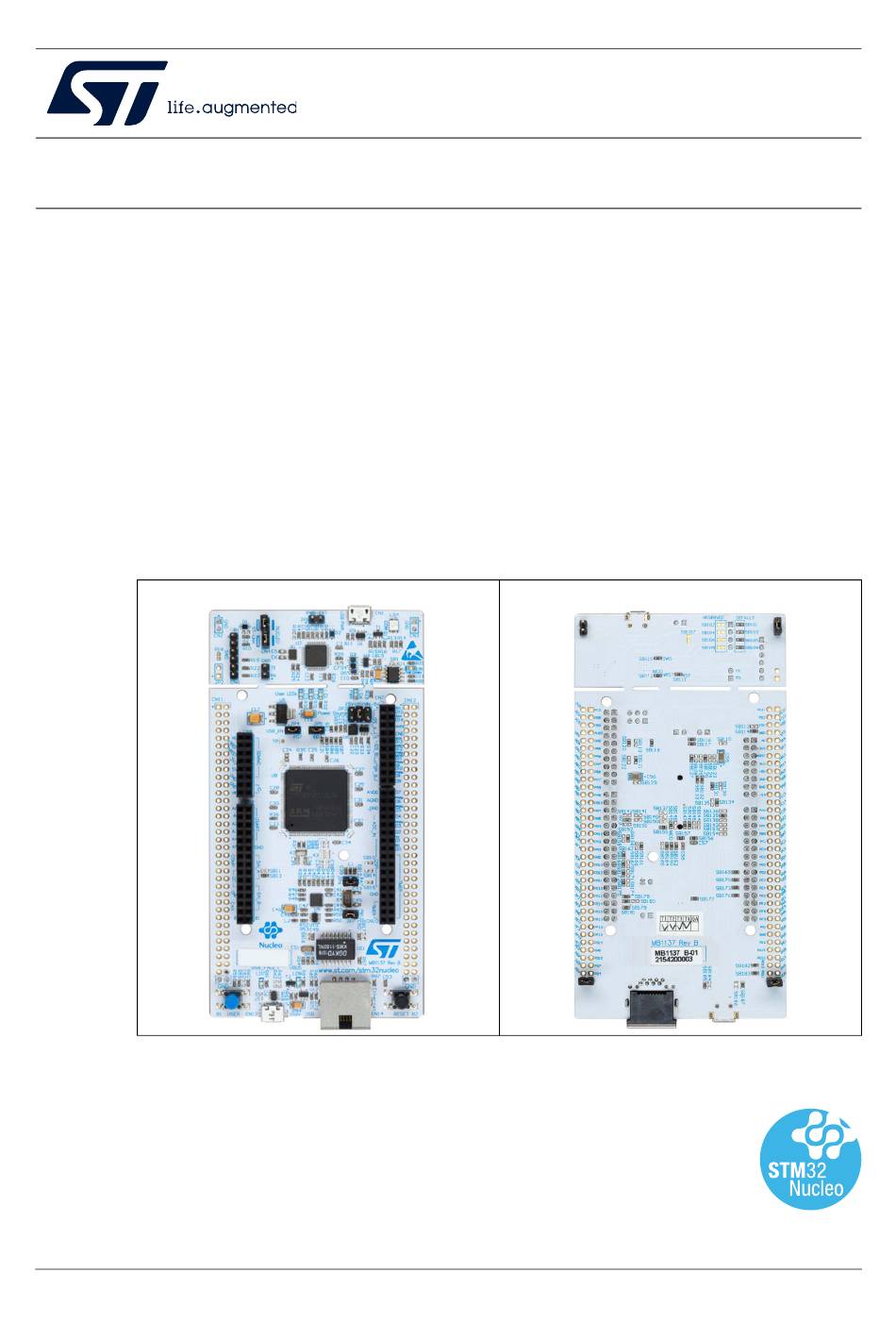

Figure 1. Nucleo-144 board (top view)

Figure 2. Nucleo-144 board (bottom view)

Pictures are not contractual.
January 2023
UM1974 Rev 9
1/85
www.st.com
1
