5. Press the Reset button (B2) on the NUCLEO-G431RB board to start using the motor.
4.5

Demonstration usage

This section describes how to use the setup to spin the motor:
1. Press the Reset button (black) (NUCLEO-G431RB board)
2. Press the User button (blue) to start the motor (NUCLEO-G431RB board)
3. Check that the motor starts spinning and LEDs D8, D9, and D10 are turned on (X-NUCLEO-IHM16M1
board)
4. Rotate the User rotary knob (blue) clockwise to the maximum (X-NUCLEO-IHM16M1 board)
5. Check that the motor is stopped and LEDs D8, D9, and D10 are turned off (X-NUCLEO-IHM16M1 board)
6. Rotate the User rotary knob (blue) counterclockwise to the maximum (X-NUCLEO-IHM16M1 board)
7. Check that the motor is spinning at a higher speed compared to step 3 and LEDs D8, D9, and D10 are
turned on (X-NUCLEO-IHM16M1 board)
8. Rotate the User rotary knob (blue) to 1/3 of its maximum (X-NUCLEO-IHM16M1 board)
9. Check that the motor is spinning at a lower speed compared to step 7 and LEDs D8, D9, and D10 are
turning on (X-NUCLEO-IHM16M1 board)
10. Press the User button (blue) to stop the motor (NUCLEO-G431RB board)
11. Check that the motor is stopped and LEDs D8, D9, and D10 are turning off (X-NUCLEO-IHM16M1 board)
UM2538 - Rev 1

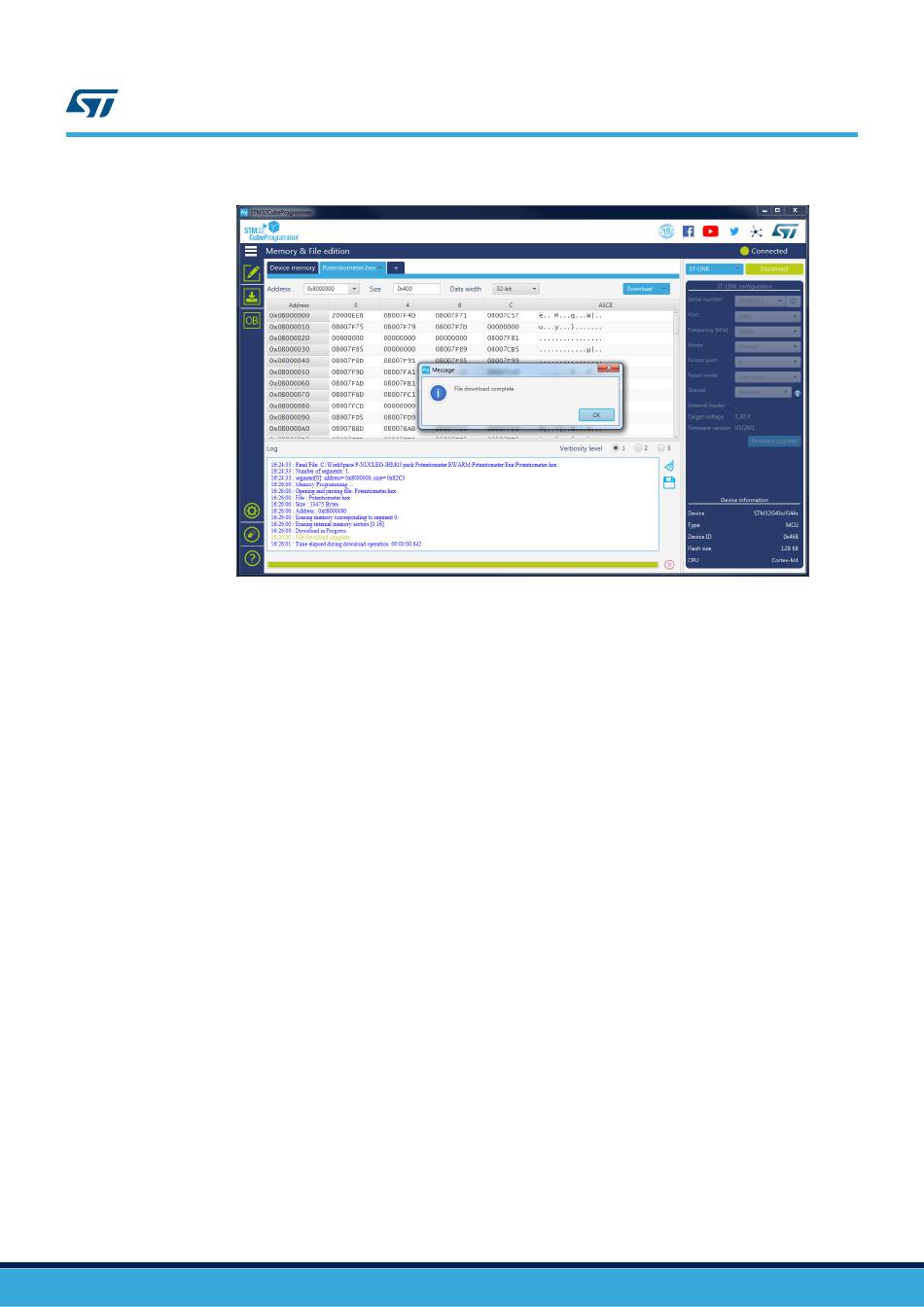

Figure 8. STM32CubeProgrammer download
UM2538
Demonstration usage
page 12/27
