3. INSTALLATION

3.1. First step

10:6
10:8
Legend:

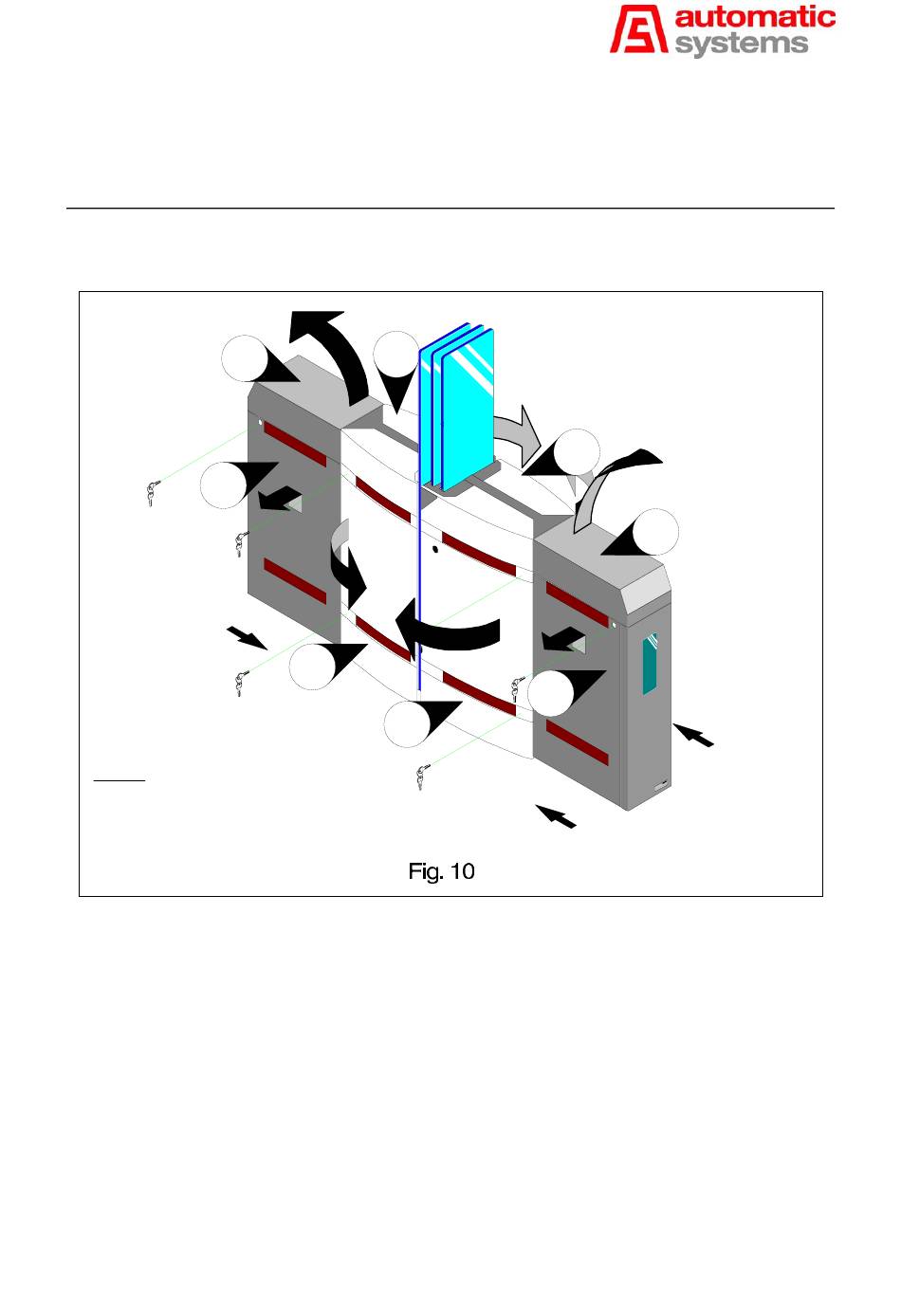

10:1, 10:2, 10:3, and 10:4 Lateral polyester doors
10:5 and 10:6 Hinged hoods
10:7 and 10:8 Lateral extension doors
•
The gate has been packaged suitable for transport. Carry the material to the installation site with the help of
a fork-lift truck and remove the packing material.
•
Unlock and open the lateral, hinged polyester doors (10:1) to (10:4). Keys are attached on the housing by
means of adhesive tape.
•
In the case of a PNG381 or PNG382, also unlock and open the hood(s) (10:5) and (10:6).
•
In the case of a PNG381 or PNG382, also unlock and remove the lateral extension door(s) (10:7) and
(10:8).
•
Check the state of the material. Though it has been carefully packed, damage may have occurred during
transport. If need be, proceed with the necessary repairs.
