3.4. Electrical connections

•
The electrical connections must be made according to the electrical diagrams 1PNG04.012, 1PNG04.013,
1PNG04.014, and 1PICTO.002 supplied with the equipment (also enclosed to this manual).
•
The PNG38x can also be connected to an IT network.
W : Make sure that the power supply cables are not live.
ARNING
3.4.1.

Right or intermediate gate

Master lateral door (10:1):
-- Connect the main single-phase power supply to the upper terminals L1 and L2 of the main magneto-
thermal circuit breaker and to the upper terminal PE (earth), located beside the circuit breaker.
-- Route the "passage allowed" control cables in direction A and B and bring them into the PLC
compartment.
-- Route the motor cables to the left gate.
Lateral door (10:2):
-- Connect the intergate cable to the connector X6, referring to the proper electrical diagram.
-- Connect the "passage allowed" control cable in direction A and B to the connection block X13.
3.4.2.

Left gate

Lateral door (10:4):
-- Connect the motor cable directly into the connection box (13:2) of the motor, respecting the polarity.
W : Fix the cable by inserting the earth braid through the grommet.
ARNING
-- Connect the cable from the connector X6 according to the electrical diagram 1PNG04.013 for an
intermediate gate or 1PNG04.014 for a left gate.
 Automatic Systems PNG38X-A3_1-04-gb-02.doc

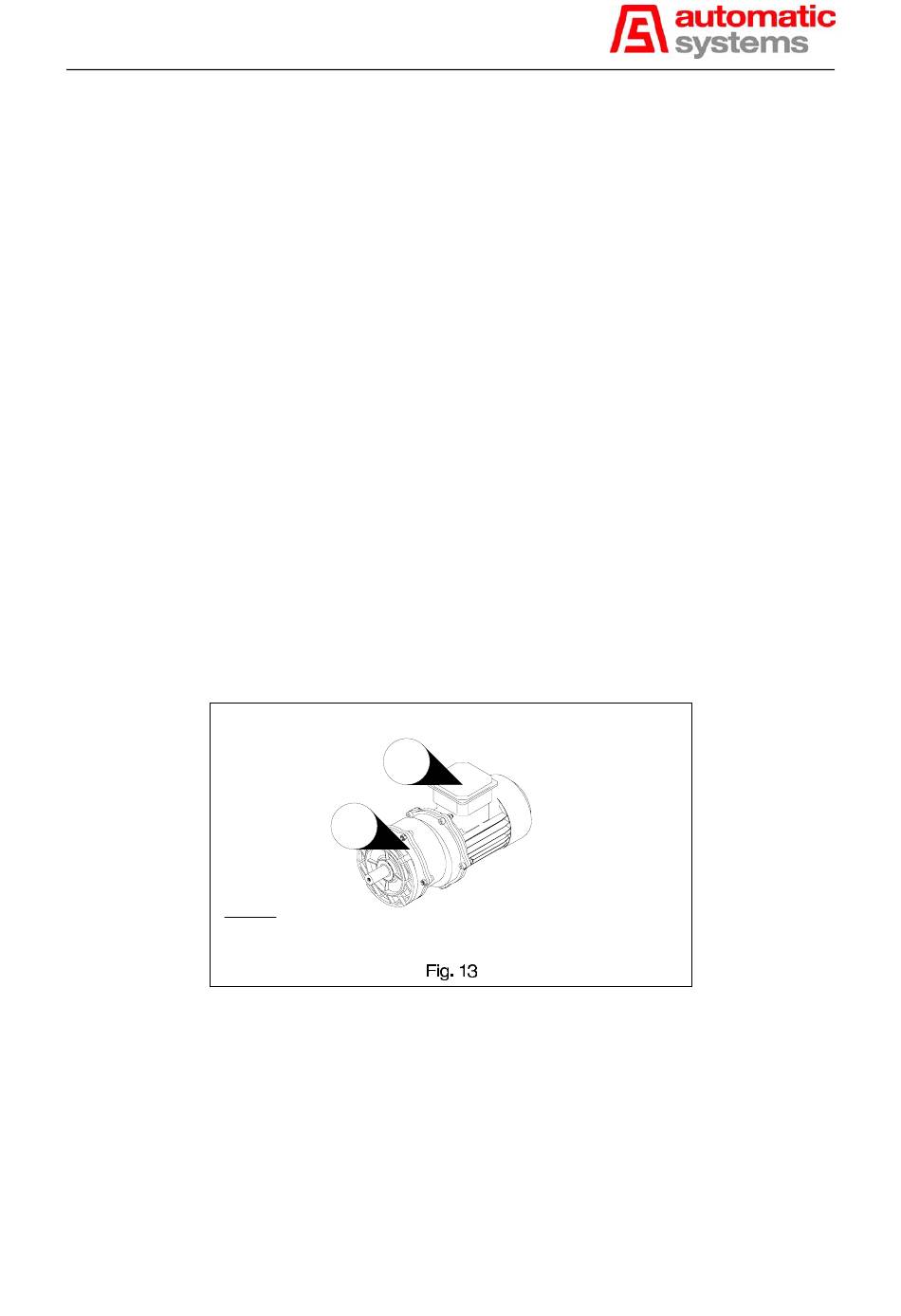

13:2
13:1
Legend:
13:1 Geared motor
13:2 Geared motor connection block
10/12/01
p. 17/51
