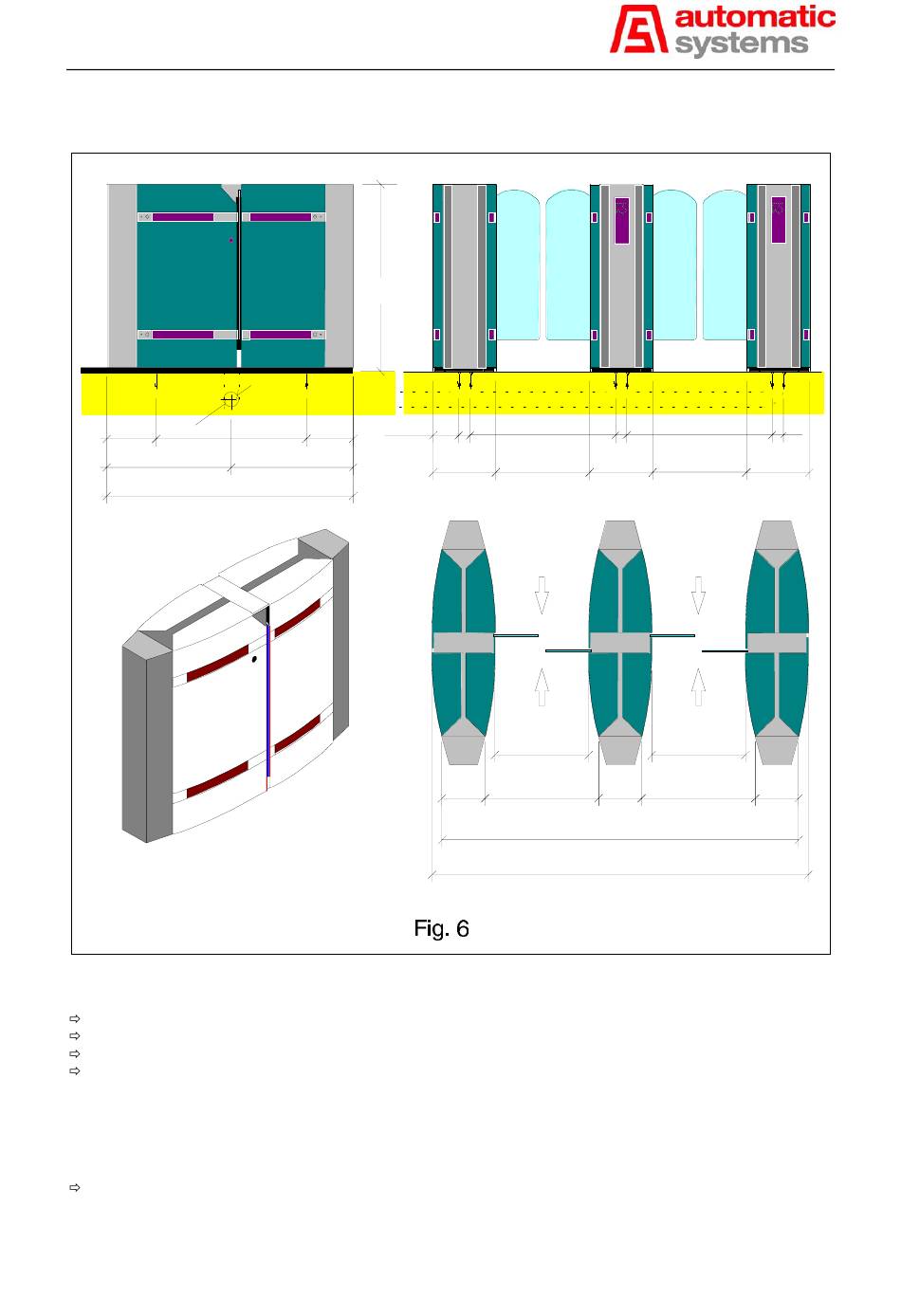

2.9. General dimensions and installation plans (with cabling)

80
250 800
650
1300
Plan No. CH3519
PNG380 w/o fixed obstacle
Work not supplied:
•
Separate power supply to each right and intermediate gate: 230V≈ + earth in 3G2.5 (2 x 2.5 + earth).
2.5 earth connection between left gate and intermediate gate.
Connection between each adjacent gate in 12 pairs dia. 0.6 type TPVF.
Remote control between control desk, right gate and intermediate gate in 12 pairs dia. 0.6 type TPVF.
WARNING: In all cases, ensure that cables have a minimum of 3 metres from the finished ground level.
Prepare a wire puller between each adjacent gate.
Supplied by Automatic Systems:
•
Connection between each adjacent gate in 4G1.5 type LIYCY (motor power supply). (Standard: 3m long)
 Automatic Systems PNG38X-A3_1-04-gb-02.doc
1000
137.5
250
650
335
Left gate
230
10/12/01
60
60 775
500 335
Intermediate gate
B
A
500
605 230
1900
2005
775 60
500 335
Right gate
B
A
500
605 230
p. 10/51
