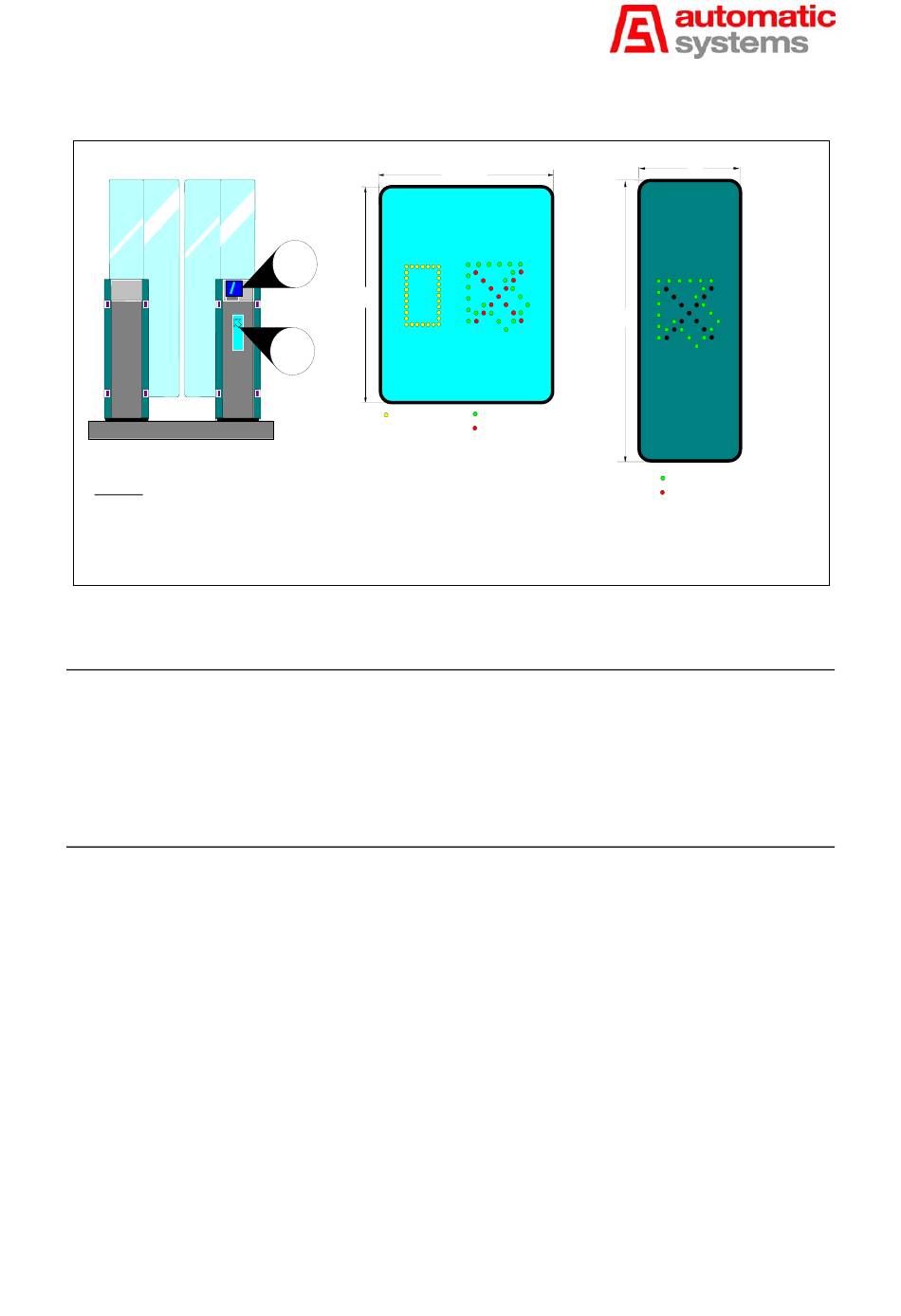

7. INFORMATION TO USERS

Left element Right element
Legend:
23:1 Function pictogram
23:2 Orientation pictogram

7.1. Orientation pictogram (option)

•
The orientation or approach pictogram is also an optional feature. It is made of two superimposed LED
circuits and informs the user about the gate operation state: "Passage in service" or "No passage".
•
This pictogram is used alone (limited management) or with a function pictogram (extended management).

7.2. Function pictogram (option)

•
The function pictogram is made of 3 LED circuits that tell the user what to do when entering the gate. The
indications are clear and visible: "Insert your card"; "Walk" or "Wait". Optionally, it can be replaced by a liquid
crystal display expressing the messages in the language desired; the operation principle is identical.
•
This pictogram can be used with an orientation pictogram.
 Automatic Systems PNG38X-A3_1-04-gb-02.doc
23:1
140
23:2
Yellow LEDs
Function pictogram for
PNG 381-382
Fig. 23
10/12/01
110
249
Green LEDs
Red LEDs
74
Green LEDs
Red LEDs
Orientation pictogram
p. 46/51
