4.8.

AS1007 Interface board

The AS1007 board serves as an interface between the PLC on the one hand and the rest of the equipment
and peripherals of the client on the other.
4.8.1.

Connectors

The different connectors are as follows:
• Connector X1-X5 – cell bands
• Connector X6 – intergate
• Connector X7 – exit reserves
• Connector X8 – PLC power supply
• Connector X9 – power supply input
• Connector X10 – reserve power supply
• Connector X11 – direction A orientation pictogram
• Connector X12 – miniature contact breaker limit switch for right obstacle
• Connector X13 – card readers
• Connector X14 – notification (console + client)
• Connector X15 – console – VSC
• Connector X16 – operation pictogram
• Connector X18–X21 – PLC connection
The detail of the connectors is indicated in figure 14b.
4.8.2.

Relay outputs

The AS1007 board supplies several free potential contacts through relays for the followinginformation:
- Direction A passage contact
- Direction A reader locking
- Direction B passage contact
Direction B reader locking
-
- Technical alarm
- Fraud alarm
Each contact may be defined in NO or NF mode by adjusting the jump position under the corresponding
relay. Contacts are in NO mode in default.
NO NF Contact except potential
JP1 Technical alarm
JP2 Fraud
JP5 Passage contact direction A
JP6 Reader lock direction A
JP7 Passage contact direction B
JP8 Reader lock direction B
Factor setting JP1 JP2 JP5 JP6 JP7 JP8 NO
 Automatic Systems PNG38X-A3_1-04-gb-02.doc
Markers
X14.24,25
X14.26,27
X13.7,8
X13.9,10
X13.17,18
X13.19,20
10/12/01

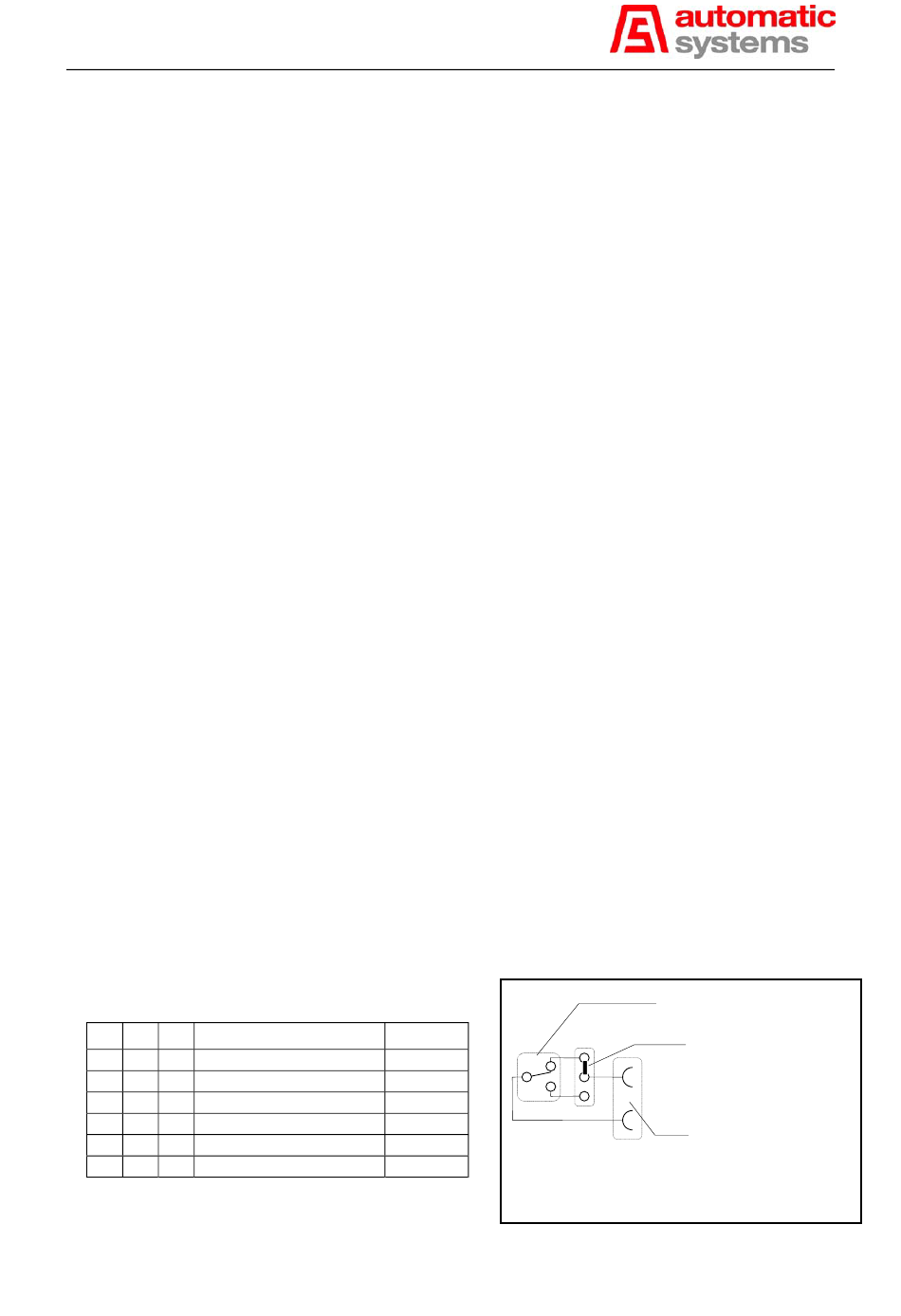

Contact relays
Selection of contact
mode (NO or NF)
Connection block
Fig. 14a
