4. TECHNICAL SECTION

4.1. Introduction

Before operating a series 380 PNG, it is necessary to programme the PLC. Resetting the PLC immediately
activates this programming which determines the configuration of the PNG:
- type of PNG (380, 381A, 381B or 382),
type of pictogram management (extended or limited) by passage direction,
-
- extension of the security zone in addition to CS : C6, C7, C13 or C14,
- operation mode of the readers (with or without passage authorization storage),
- activation level of the "evacuation" mode (0 or 1),
possible locking of reader in pre-alarm or "intrusion".
-
T
HE OPERATION MODE IS ACTIVATED ONLY ONCEALL OF THESE PARAMETERS HAVE BEEN DEFINED
MAKES REPROGRAMMING THE
Note : - All the parameters and time-outs are represented by the codes %M, %MW and %TM, as they are
used on the FTX117 ADJ02 programming console.
– The "A3" symbols in the margin indicate the new functionalities of the A3 version of the software

4.2. Principles of operation

4.2.1.

Types of fraud

Three types of fraud are treated. When a fraud is detected, the obstacle closes immediately. The buzzer
is activated more or less rapidly according to the type of fraud.

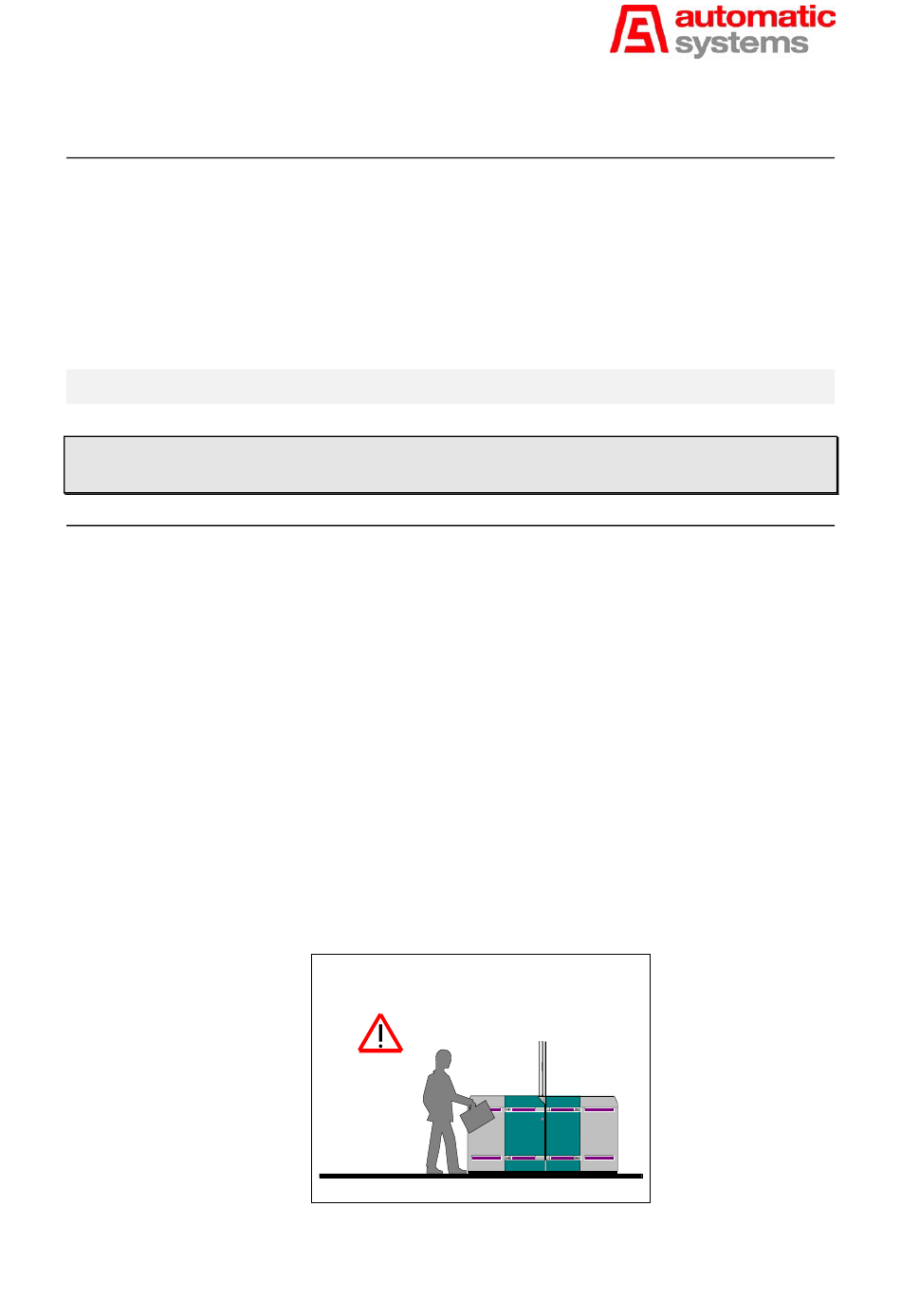

4.2.1.1. "Intrusion" Fraud (fig. 13a):

When the PNG is on stand-by, intrusion is detected as soon as there is a presence before at least one
cell in an entrance corridor.
If the person is not authorized to pass, the PNG will sound an alarm after a time-out (% TM2) (15 sec by
default): the buzzer is activated and the pictograms show a red cross.
The PNG will immediately sound an alarm if a presence is detected at the door-zone (photocell C6 or C7)
during the time-out.
The alarm will end when there is no longer any presence in any of the two entrance corridors (A and B)
and after a short time-out (%TM0) (1 sec by default)
 Automatic Systems PNG38X-A3_1-04-gb-02.doc
PNG .
POSSIBLE
"Intrusion" Fraud
ALARM
after 15 seconds
10/12/01
Fig. 13a
. O PLC
NLY RESETTING THE
