2.2. Switching off the equipment

2:2

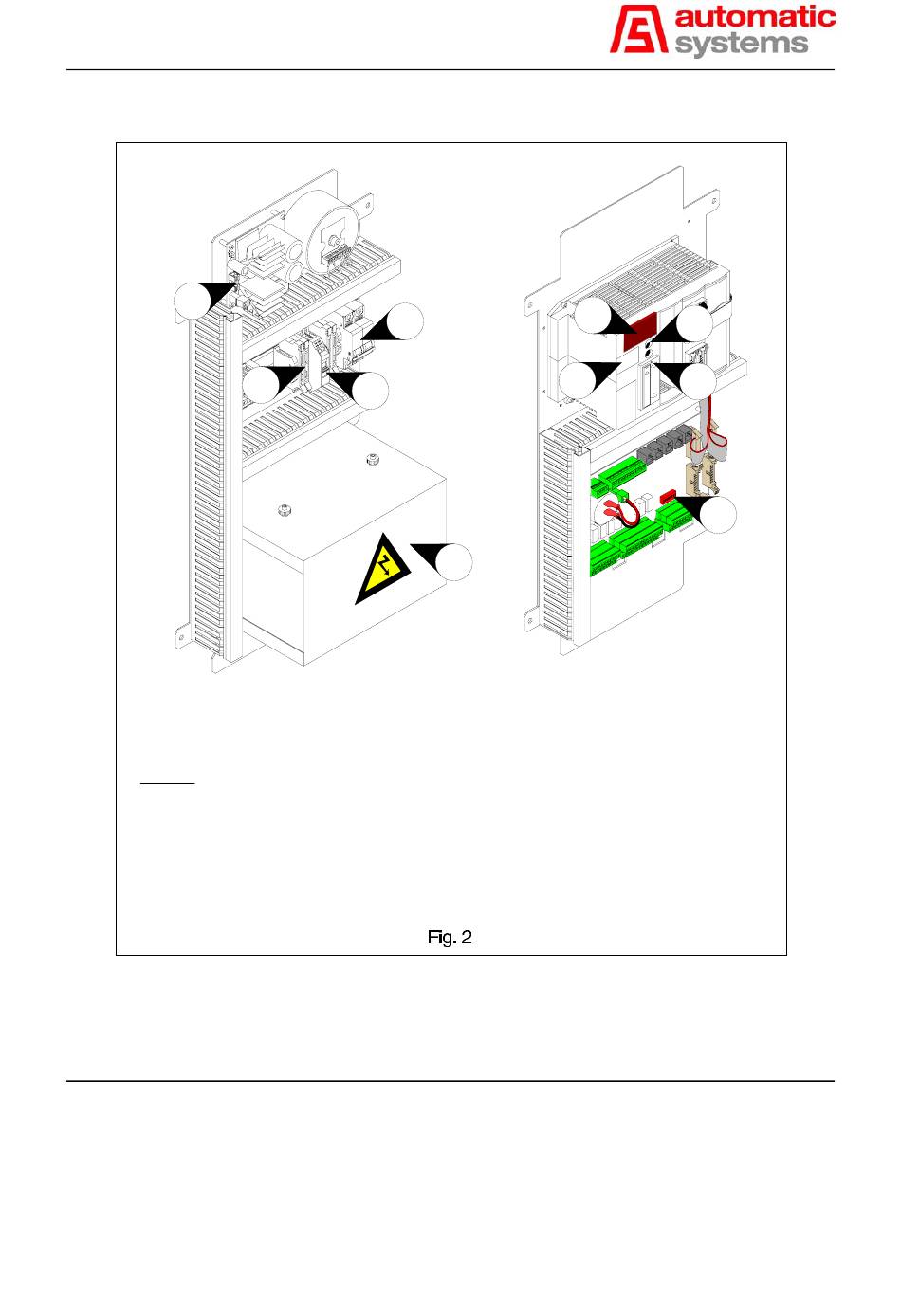

Variable speed controller board
Legend:
2:1 Main magneto-thermal circuit breaker
2:2 Fuse
2:3 Fuse terminals
2:4 Variable speed controller circuit breaker
2:5 Hood-protected variable speed controller
•
As soon as you open the housing, switch off the main magneto-thermal circuit breaker (2:1), located
behind the lateral polyester door (10:1). Always switch off the master mechanical group power supply,
since the slave mechanical group is powered by the adjacent gate.

2.3. General conditions of use

•
Your automatic gate type "PNG380/381/382" has been designed to operate in any kind of climatic
environment, from -20°C to +60°C, with up to 95% of relative humidity.
 Automatic Systems PNG38X-A3_1-04-gb-02.doc
2:1
2:3
2:4
10/12/01
2:10
2:6
2:5
PLC (TSX3721) & power supply board
2:6 PLC
2:7 Configuration/operation DIP switches
2:8 RESET push button
2:9 Programming console plug
2:10 DIAG button
2:9
2:8
2:7
