3.3. Installing the gate

•
Check if the floor is perfectly horizontal (the base of the gate must be perfectly flush with the floor).
•
Position the gate on site precisely with the help of the fork-lift truck mentioned on previous page.
•
Secure the gate firmly to the floor by tightening the two fixing brackets provided and using the expansible
bolts.
•
Make sure that all the housings of the battery are perfectly aligned and horizontal. If needed, add shims
between the housings and the floor in order to make the gates level.
W : To ensure the proper operation of the gate, confirm that the obstacles are perfectly vertical and
ARNING
that the frame is not distorted, even slightly.
25 mm - 0.5
< 25 mm
B
B

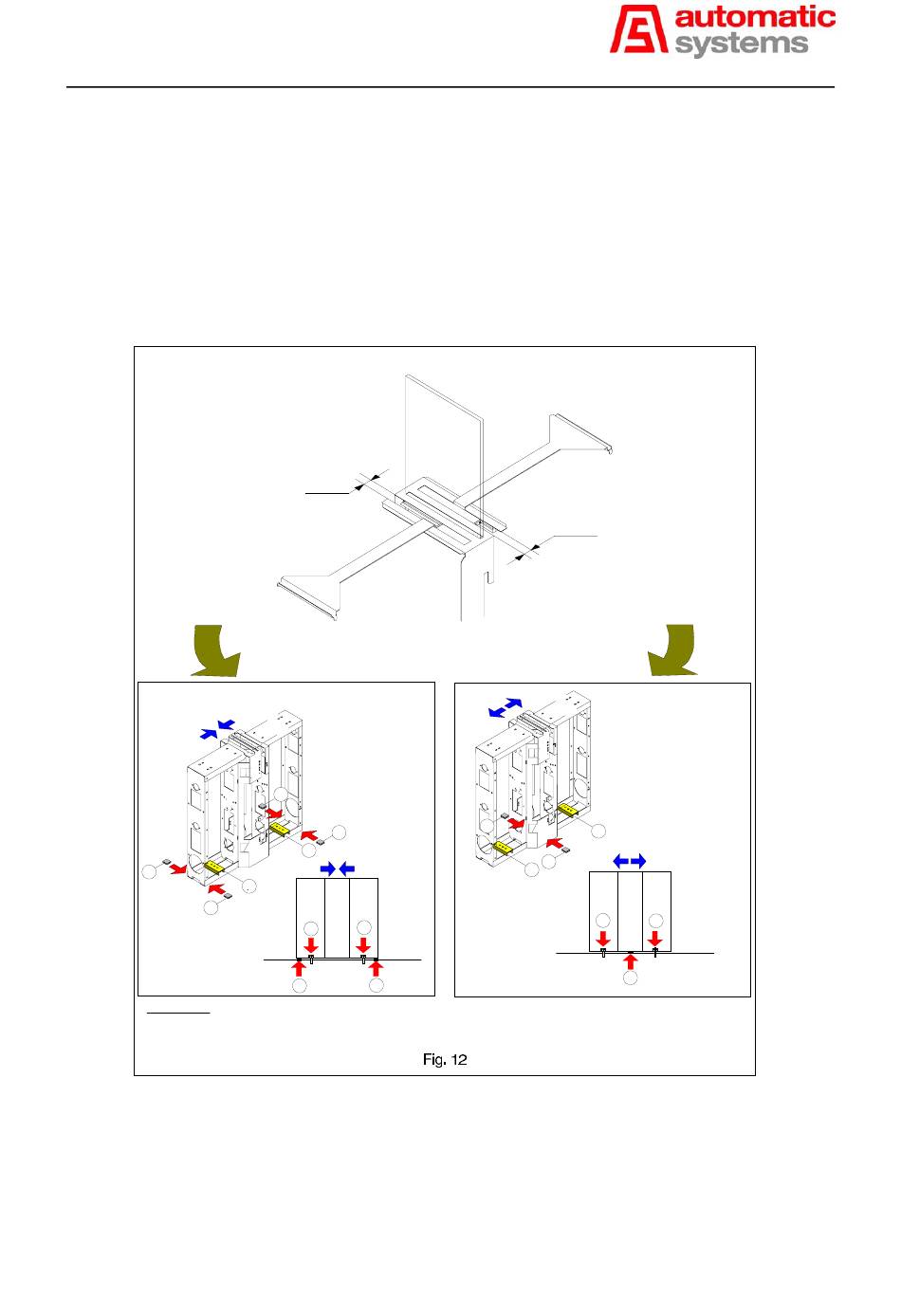

Légende:
