Clocking

The device offers several options for clocking.
• PTP (Precision Time Protocol) - IEEE1588-2008 / PTPv 1 & 2 *
• SoundGrid (SoE) *
• Word Clock
• MADI input *
• AES3 input *
• internal clock generator
* depending on the modules installed.
When PTP (network) is selected the device can either act as slave or as network
grandmaster.

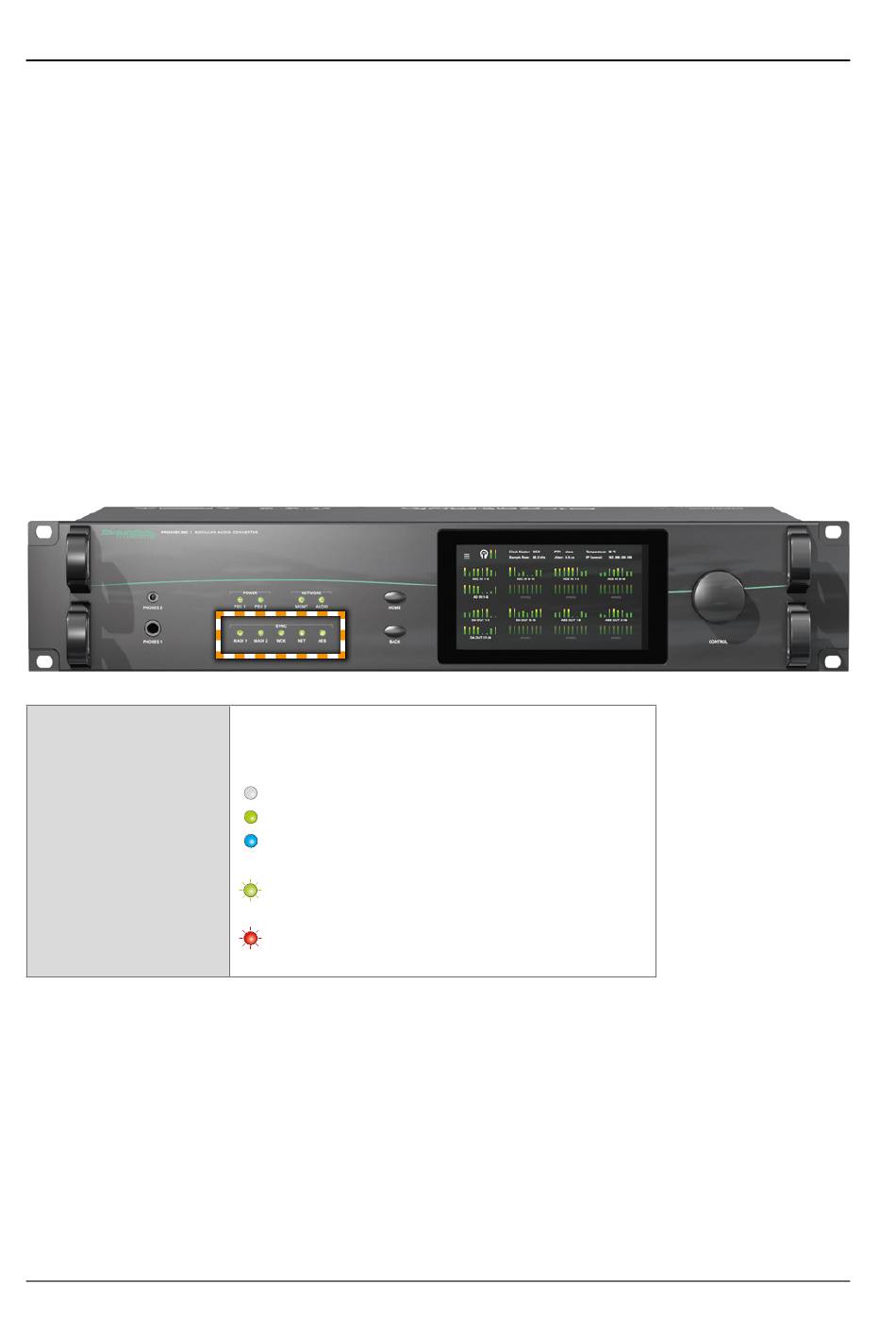

The front panel informs about selected clock sources and their lock / sync state.
SYNC
MADI 1
MADI 2
WCK
NET
AES
Prodigy.MC Hardware Guide - Version 1.0
LED RGB - indicates the lock / sync state of
MADI input, Network-clock, word clock or
AES3 input.
(OFF) = no signal lock
(ON, green) = signal lock, in sync
(ON, blue) = signal lock, in sync,
(blinking, green) = signal lock, not in sync
(blinking, red) = input selected as clock source
selected clock source
with selected clock source
and no signal lock.
