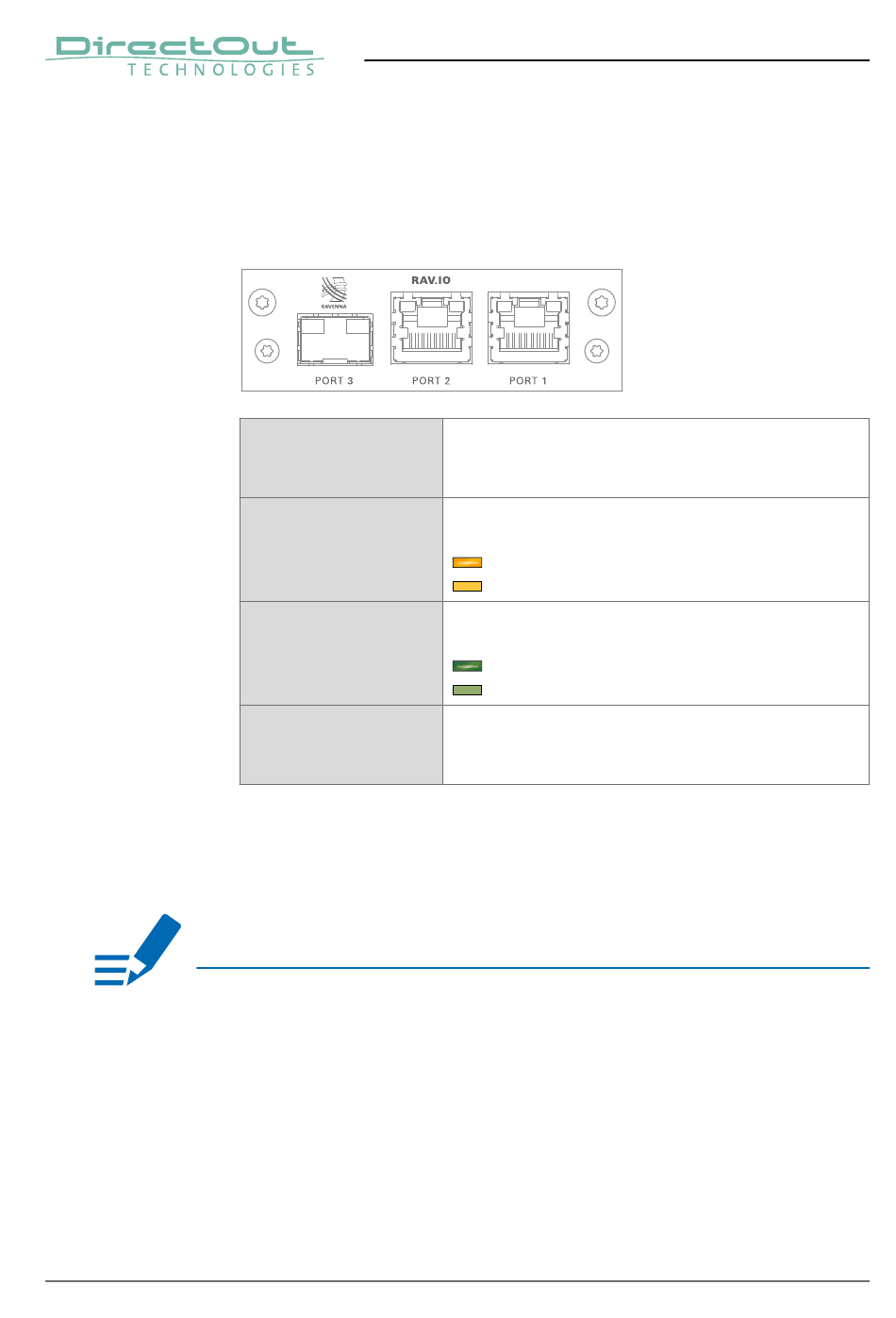

RAV.IO
Three network ports are available for transmission of audio signals (RAVENNA /
AES 67 / SMPTE 2110-30/31). The module supports Seamless Protection Switching
according to SMPTE 2022-7 .
PORT 1
PORT 2
PORT 1
PORT 2
PORT 1
PORT 2
PORT 3
* See page 18 for modules that are available by DirectOut.
The confi guration of the built-in network switch is available via the browser
interface of the RAV.IO-module.
NOT E
Further devices that require PTP synchronisation should be connected to an
external PTP-aware switch.
RJ45 socket (1 Gbit/s)
Network interface - connect here for network
transmission.
LED orange - indicates the link state of the
network connection.
(ON) = device link active
(OFF) = device link not active
LED green - indicates the activity state of
the network connection.
(ON) = data sent or received
(OFF) = no data transmission
SFP cage
Insert SFP transceiver here and connect to the
network.*
