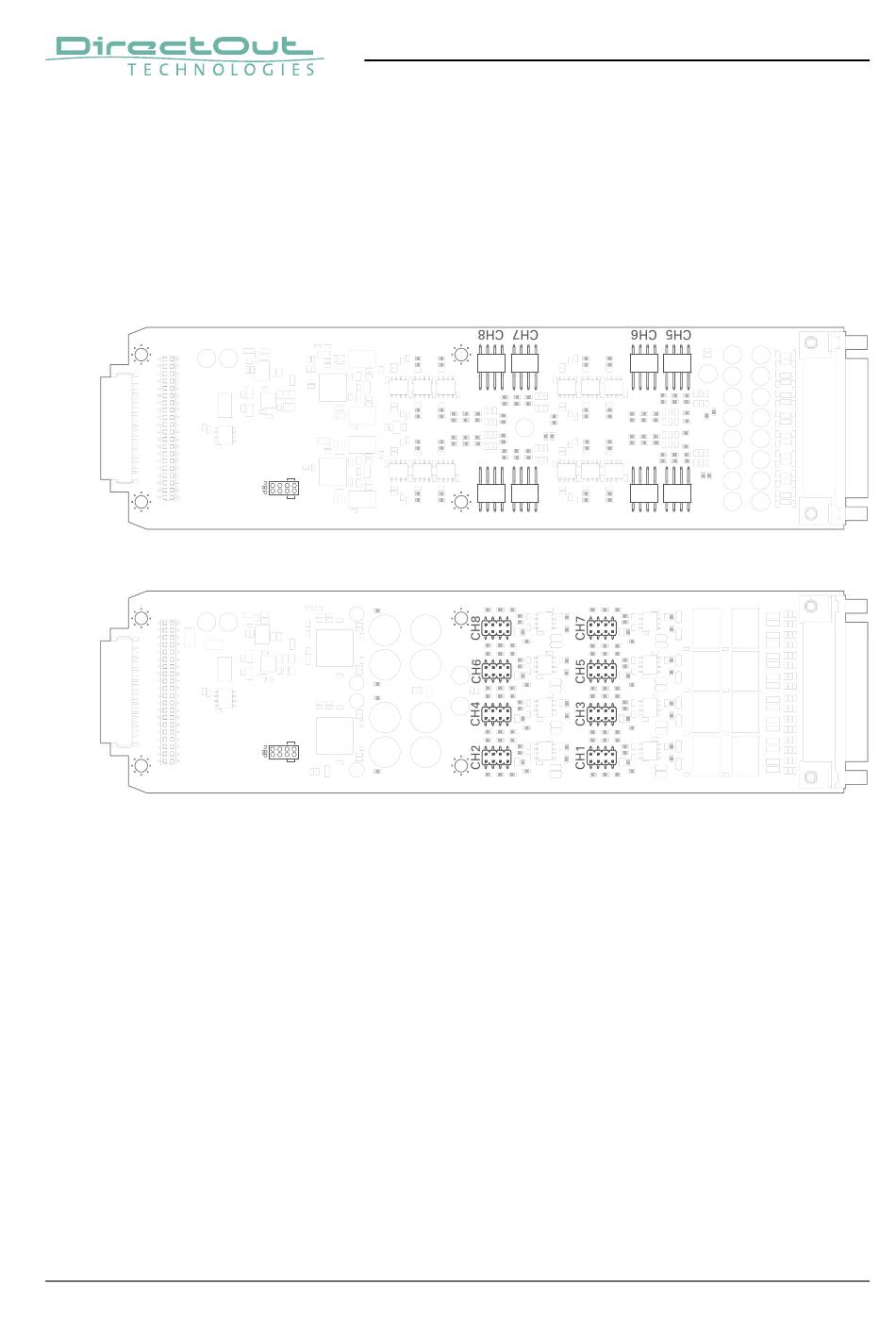

Reference Level
The analog reference level of line inputs and outputs can be adjusted via jumper -
for each channel individually. Check the label on the particular board. At modules
with two boards the input is at the bottom and the pins are accessed from the
side, where as the output is at the top and the pins pins are accessed from the
top.
AN8.I
24/18/15
24/18/15
AN8.I - access from sideways
AN8.O
24/18/15
24/18/15
AN8.O - access from top
CH4
CH3
CH2
Prodigy.MC Hardware Guide - Version 1.0
CHAPTER 4: Operation
CH1
