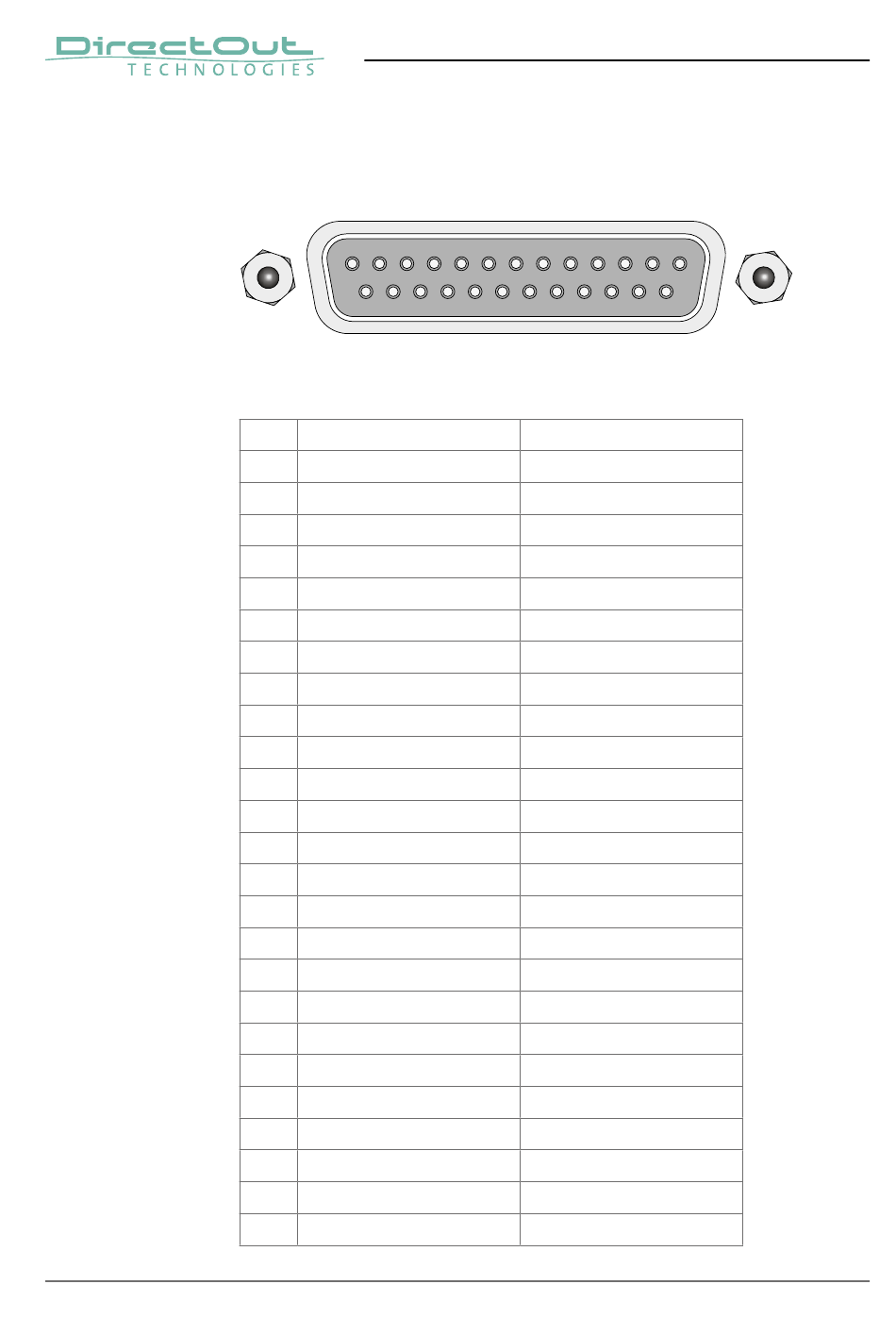

Appendix A - DSUB-25 Pin assignment
The pinout of the DSUB-25 connectors for the transmission of analog and AES3
audio signals follows the AES59 specifi cation.
13 12 11
25 24 23 22 21 20 19 18 17 16 15 14
jack - female
PIN Signal analog
1 CH 8 +
2 GND
3 CH 7 −
4 CH 6 +
5 GND
6 CH 5 −
7 CH 4 +
8 GND
9 CH 3 −
10 CH 2 +
11 GND
12 CH 1 −
13
14 CH 8 −
15 CH 7 +
16 GND
17 CH 6 −
18 CH 5 +
19 GND
20 CH 4 −
21 CH 3 +
22 GND
23 CH 2 −
24 CH 1 +
25 GND
10 9 8 7 6 5 4
Signal digital
CH 4 OUT +
GND
CH 3 OUT −
CH 2 OUT +
GND
CH 1 OUT −
CH 4 IN +
GND
CH 3 IN −
CH 2 IN +
GND
CH 1 IN −
CH 4 OUT −
CH 3 OUT +
GND
CH 2 OUT −
CH 1 OUT +
GND
CH 4 IN −
CH 3 IN +
GND
CH 2 IN −
CH 1 IN +
GND
