Networking

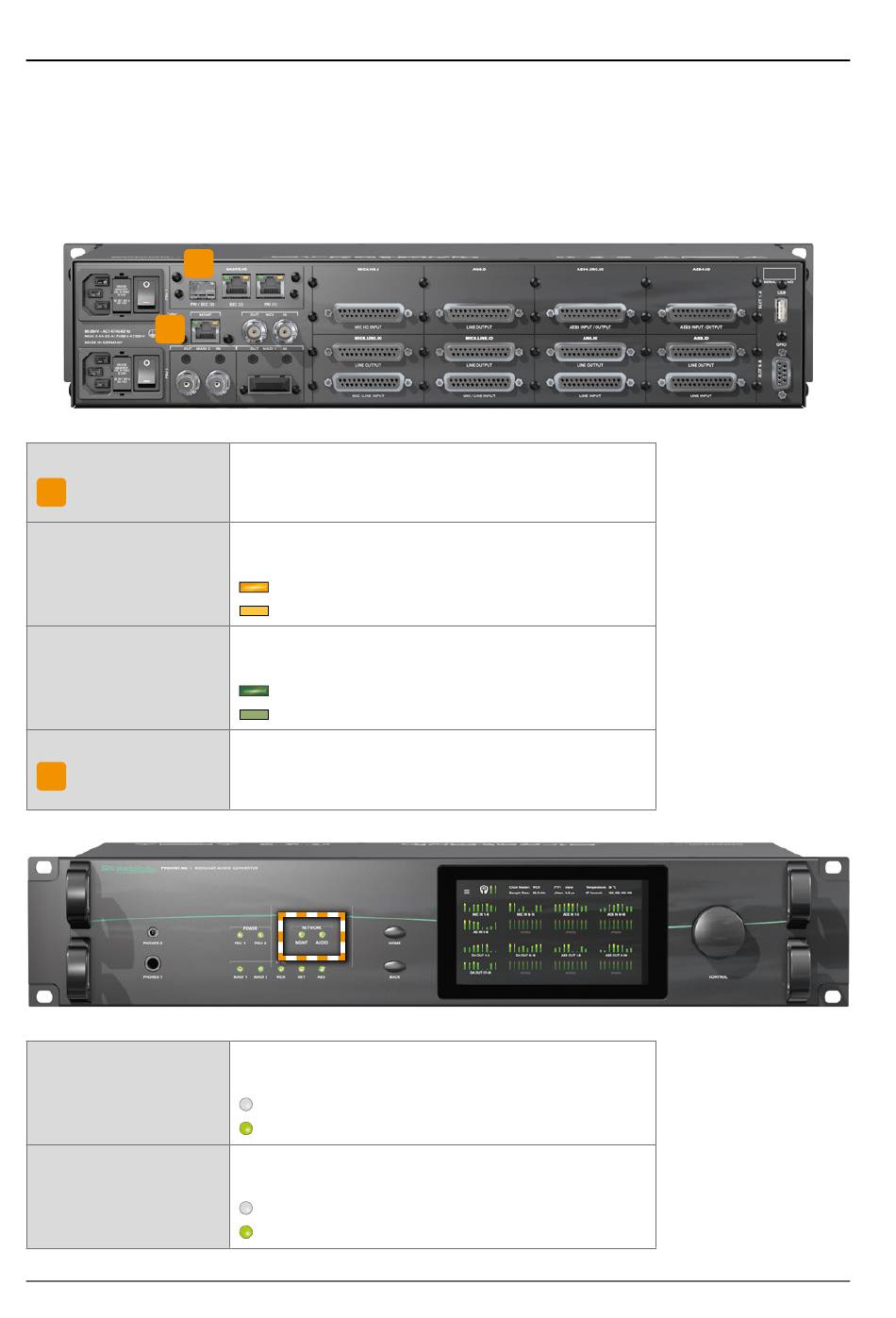

PRODIGY.MC uses separate network links for managing the device and network-
audio transmission. LEDs on the front panel indicate the state of both network
links.
2
1
MGMT
1
MGMT
MGMT
Audio Network Slot
2
NETWORK
MGMT
NETWORK
AUDIO
Prodigy.MC Hardware Guide - Version 1.0
RJ 45 socket
Connect here for network control and fi rmware
updates.
LED orange - indicates the link state of the
network connection.
(ON) = device link active
(OFF) = device link not active
LED green - indicates the activity state of
the network connection.
(ON) = data sent or received
(OFF) = no data transmission
Option Slot for audio network modules
See „Slots - Audio Network Modules" on page 30.
LED - indicates the state of the controller for
management.
(OFF) = controller not available
(ON) = controller ready
LED - indicates the state of the network
audio module.
(OFF) = network module not ready
(ON) = network module ready
