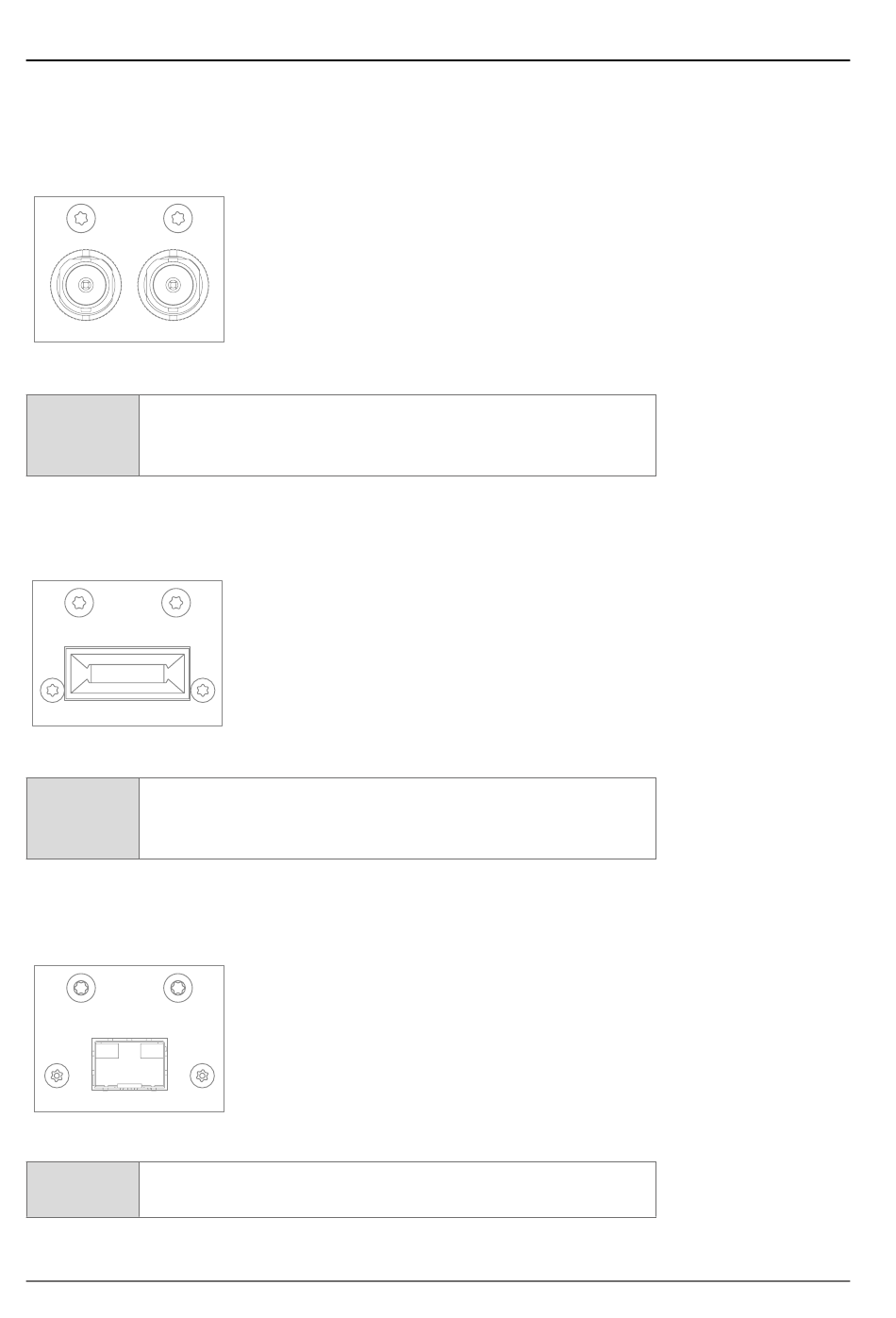

BNC.IO
OUT
IN
BNC
2 x BNC socket (coaxial)*
OUT: MADI output, connect for MADI output signal here.
IN:
* The labelling of the MADI ports is printed on the Mainframe.
SC.IO
OUT
IN
SC
2 x SC socket (optical)*
OUT: MADI output, connect for MADI output signal here.
IN:
* The labelling of the MADI ports is printed on the Mainframe.
SFP .IO
OUT IN
SFP
SFP socket
Insert SFP module here and connect MADI input/output.
Prodigy.MC Hardware Guide - Version 1.0
MADI input, connect MADI input signal here
MADI input, connect MADI input signal here
CHAPTER 4: Operation
page 35 of 64
