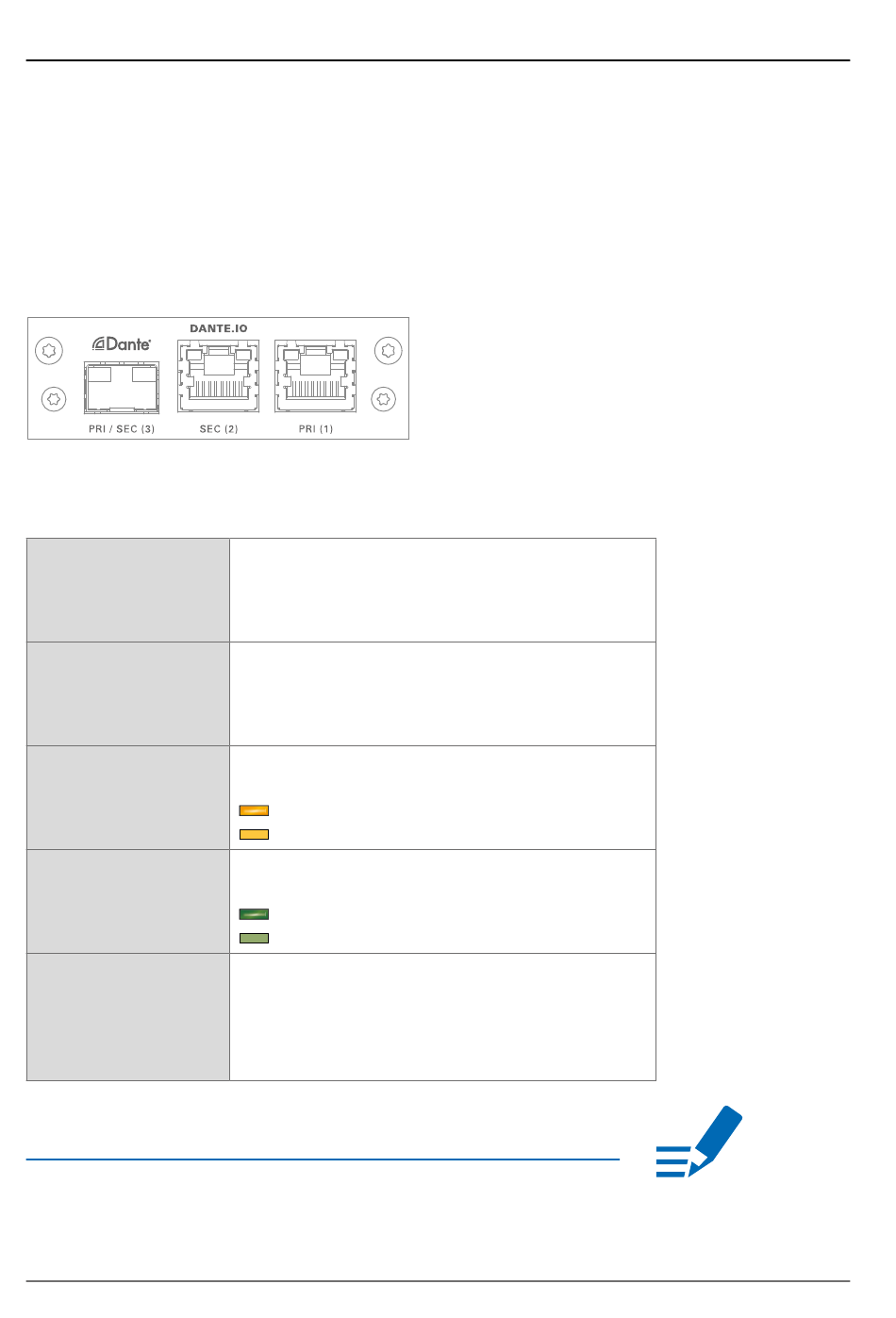

DANTE.IO
Three network ports are available for transmission of audio signals
(Dante / AES67). The built-in network switch can be operated in two
modes:
• Switched (all ports in the same network)
• Redundant (1 = Primary, 2 = Secondary, 3 = Primary)
• Red_Sec (1 = Primary, 2 & 3 = Secondary)
The switch will be confi gured automatically by selecting the respective
operation mode in Dante Controller.
PRI (1)
SEC (2)
PRI (1)
SEC (2)
PRI (1)
SEC (2)
PRI / SEC (3)
* See page 18 for modules that are available by DirectOut.
NOT E
If redundancy is being used, secondary interfaces should be
connected to a second separate network. Secondary interfaces cannot
communicate with primary interfaces.
Prodigy.MC Hardware Guide - Version 1.0
RJ45 socket (1 Gbit/s)
Network interface - connect here for network
transmission. Primary Port when used in redundant
operation.
RJ45 socket (1 Gbit/s)
Network interface - connect here for network
transmission. Secondary Port when used in
redundant operation.
LED orange - indicates the link state of the
network connection.
(ON) = device link active
(OFF) = device link not active
LED green - indicates the activity state of
the network connection.
(ON) = data sent or received
(OFF) = no data transmission
SFP cage
Insert SFP transceiver here and connect to the
network.*
Primary or secondary (selectable) port when used in
redundant operation.
