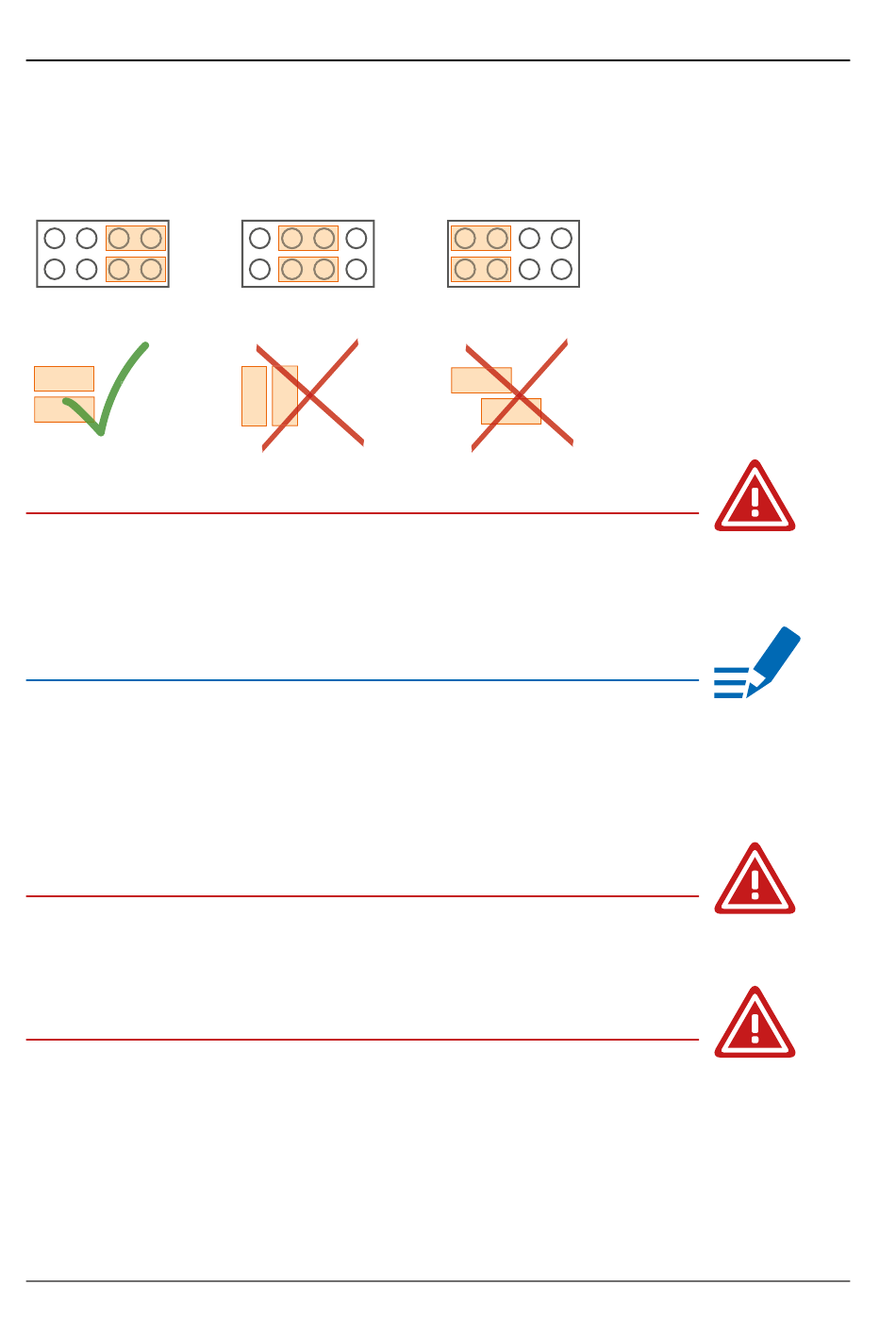

Level Settings
15 dBu
OK OK
WAR NI N G
To prevent damage from the board only set the jumpers parallel in horizontal
direction - as illustrated above.
N OT E
The pinout of the digital and analog I/O is different. Check for appropriate cabling to
ensure proper operation and to avoid damages caused by improper connections.
The analog outputs are fed by the D/A converters and not a split-out of the analog
inputs.
WAR NI N G
Do not connect voltage sources to the analog outputs. This may cause damage at
the output stages. Observe the technical specifi cations listed in this document.
WAR NI N G
The line output is not servo balanced. Do not connect the negative lead to ground.
This may cause damage at the output stage. Observe the technical specifi cations
listed in this document.
Prodigy.MC Hardware Guide - Version 1.0
18 dBu
NO!
24 dBu
NO!
