Slots - Connecting Audio

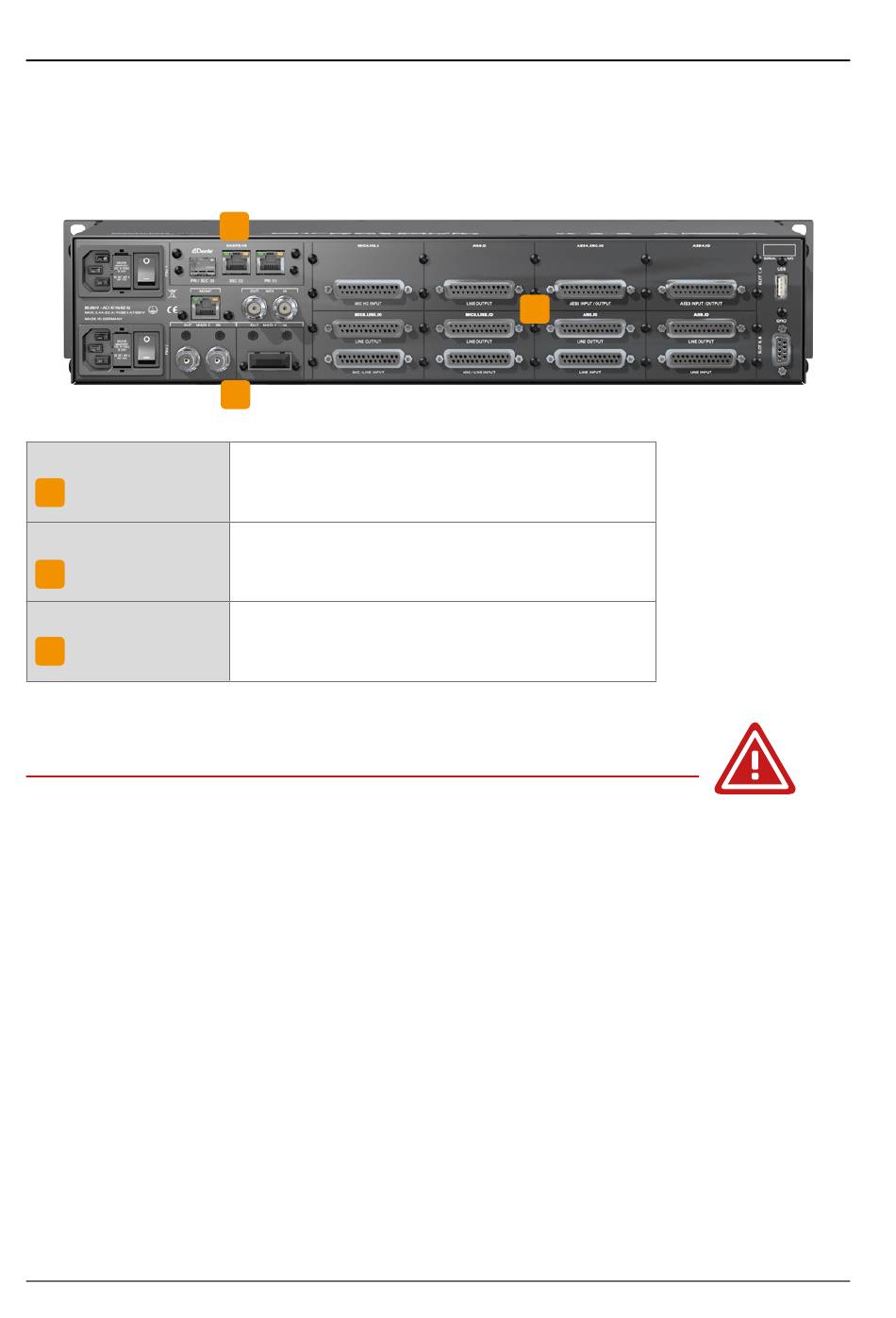

PRODIGY.MC offers three different slot-types that can be assembled individually
according the particular requirements.
Audio Network Slot
1
MADI IO Slots
2
Converter IO Slots
3
WAR NI N G!
All module slots must be fi tted with a module or a blind plate each. Otherwise live
parts become accessible which may cause serious harm to your health. An open
housing may also cause inappropriate operation conditions due to an insuffi cient
electromagnetic shielding.
Prodigy.MC Hardware Guide - Version 1.0
1
2
1 x Option Slot for Audio Network Modules
See „Slots - Audio Network Modules" on page 30
2 x Option slot for MADI Modules
See „Slots - MADI Modules" on page 34
8 x Option slot for Converter Modules
See „Slots - Converter Modules" on page 36
